| Unit Price: | $ 0.02 |

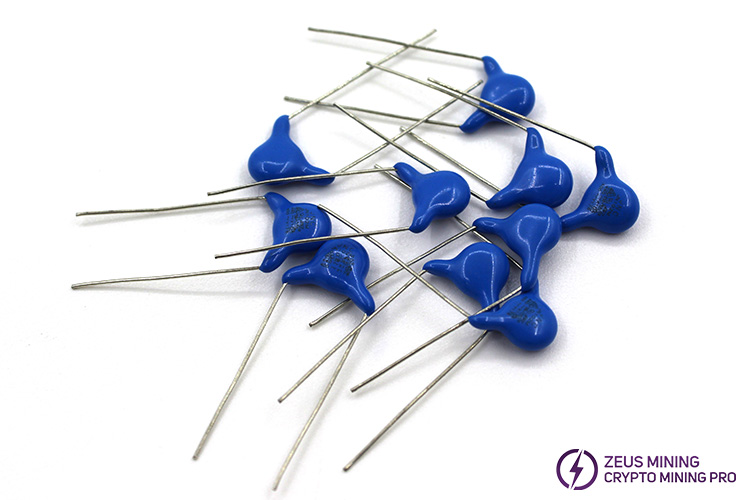

The rated voltage of the 102M capacitor is 400V. It uses metalized polypropylene film as the medium and motor. It uses a high-temperature resistant olefin shell, epoxy tree packaging, and a one-way lead-out structure. The product has high resistance to external electrical interference, high reliability and good self It has a better safety protection effect.
Safety capacitors refer to safety capacitors that are used in such occasions that after the capacitor fails, it will not cause electric shock and endanger personal safety. Safety capacitors are usually only used for filtering in anti-interference circuits. They are used in the power filter to filter the power supply and filter the common mode and differential mode interference respectively.
Feature:
small volume
Small pre-consumption at high frequency, can withstand the impact of parent flow peak waves
Strong overcurrent capability, small capacity and loss attenuation
long-lasting
PBT plastic shell package, good appearance consistency
Specification:

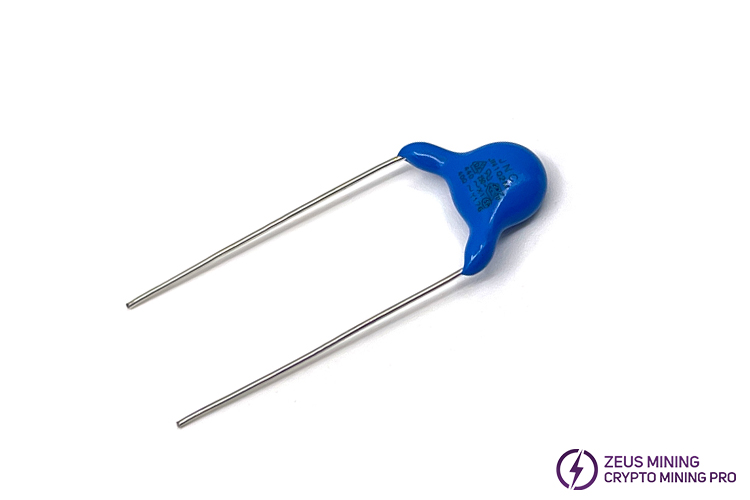

Product name: Y1-102M-Y5V-400V(JNA09F102ML02N)
Capacitance: 1000PF+20%~-20%AL1KHZ1.0Vrms
Working voltage: X1: 440V Y1: 400VAC
Material temperature characteristics: Y5V
Operating temperature range: -25℃~+85℃
Working temperature: -25℃~+125℃
Safety capacitor product parameters:
Diameter (D): 9.0mm MAX.
Thickness (T): 5.5mm MAX
Pitch (F): 10.0±0.5mm
Wire diameter (d): 0.60±0.1mm
Pin length (L): 25mm +1.0mm
Pin type: Straight
Loss Tangent: 2.5% MAX
Insulation cathode: 10000M ohm MIN
Coating: Epoxy
Test voltage: 4KV AC 1MIN
