SGM2036-1.8YUDH4G/TR IO

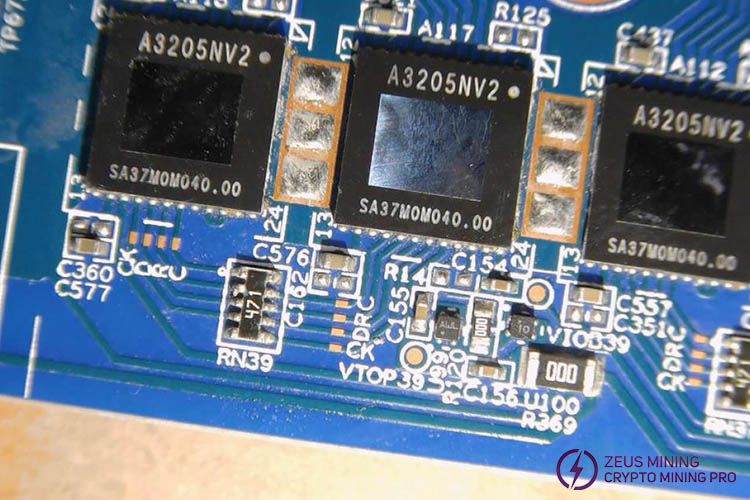

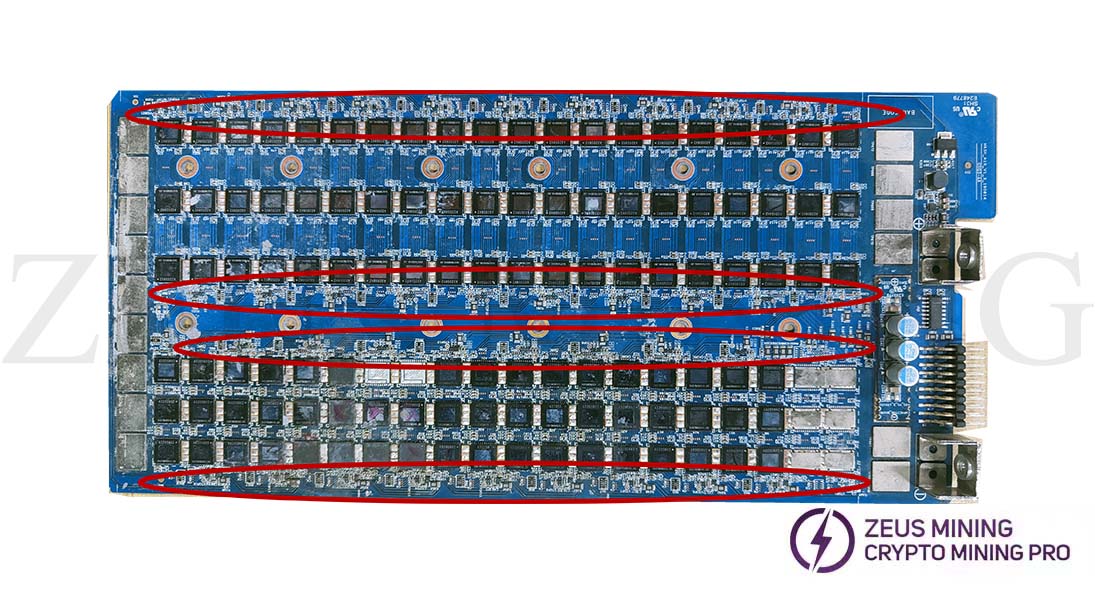

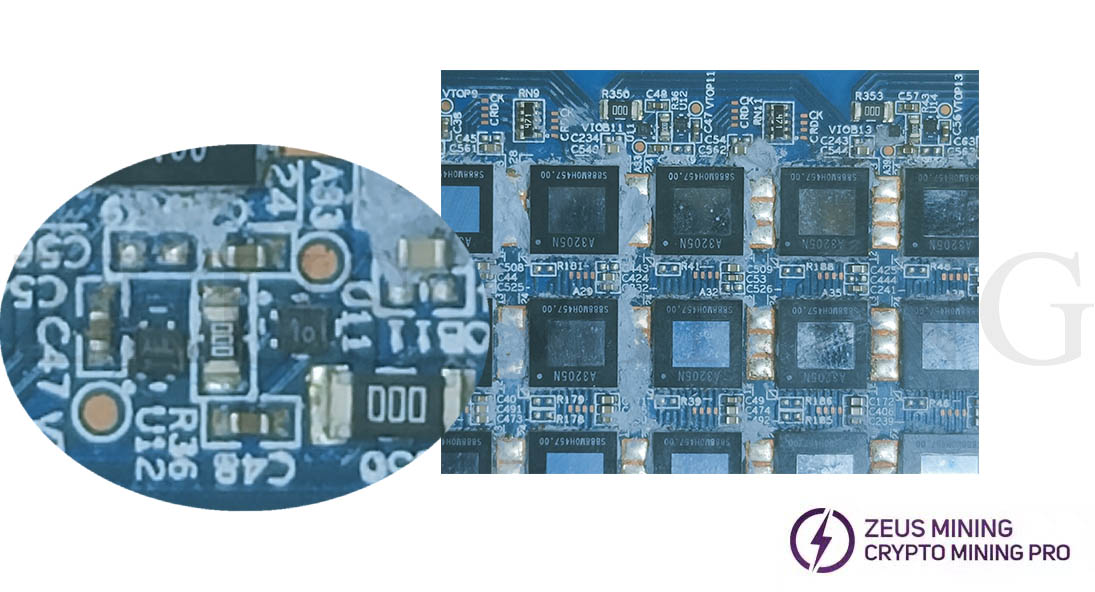

The LDO Linear Regulator SGM2036-1.8YUDH4G 1.8V has excellent power dissipation performance, the SGM2036 series of low power low dropout CMOS linear regulators operate from 1.6V to 5.5V input voltage range and provide up to 300mA output current. Thereby ensuring that the loss of the chip itself is significantly reduced. It is suitable for Avalon series computing power board such as 1047/1066/821/921 computing power board, which is the core power supply of Avalon computing power board Asics chip.

This LDO can also support the fast startup function, and the wake-up time only takes 30us when entering the low-power mode, which ensures that the system can respond quickly to external input during low-power design. A low-power, low-dropout high-performance LDO with an operating voltage range of 1.6V~5.5V, and a 300mA load current. Fixed voltage and adjustable output voltage versions are available. The output voltage accuracy of SGM2036 is as high as ±2.5%, which can provide high-precision power supply for analog devices.

Features of SGM2036-1.8YUDH4G/TR:

Operating voltage range 1.6V~5.5V

Output voltage accuracy ±2.5%

Output current up to 300mA

Supply current 20uA, shutdown mode current 10nA

Minimum voltage difference 165mV

Linear regulation 0.01%/V, load regulation 0.5mV

Output voltage noise 30uVRMS

Power supply rejection ratio PSRR up to 75dB (1kHz)

Startup time 30us

Support automatic discharge function

Support thermal overload protection, foldback protection function

Operating temperature range -40℃~+85℃
