| Unit Price: | $ 158 |

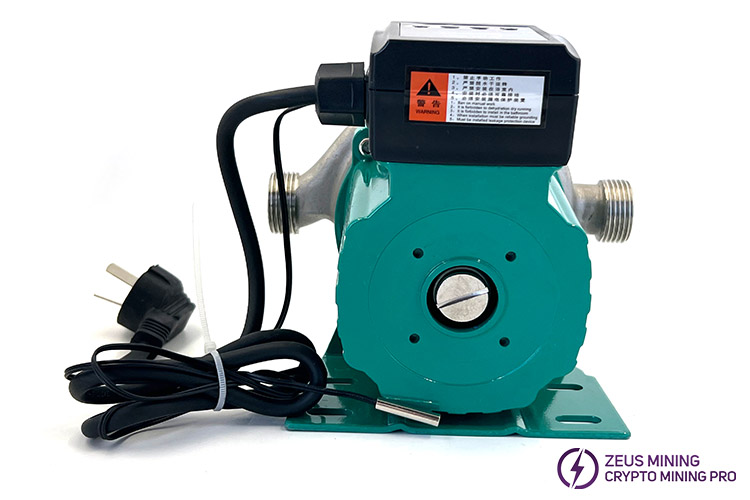

YL-325G intelligent circulating shielded pump for immersion oil or Hydro cooling ASIC miners
The YL‑325G intelligent circulation pump is a core component for ASIC miner mineral‑oil immersion cooling tanks and hydro water‑cooling circulating water tanks.
It is a high-definition digital display temperature control integrated circulating pump, which is automatically and accurately controlled, intelligent and convenient. Low temperature resistance, high temperature resistance, you can manually set the start and stop temperature, quickly increase the flow circulation, stainless steel shielding sleeve, strong power. Copper core motor, precise winding, stronger power, and longer life. The smart chip quickly recognizes the input voltage for switching to ensure safe and stable voltage conversion.

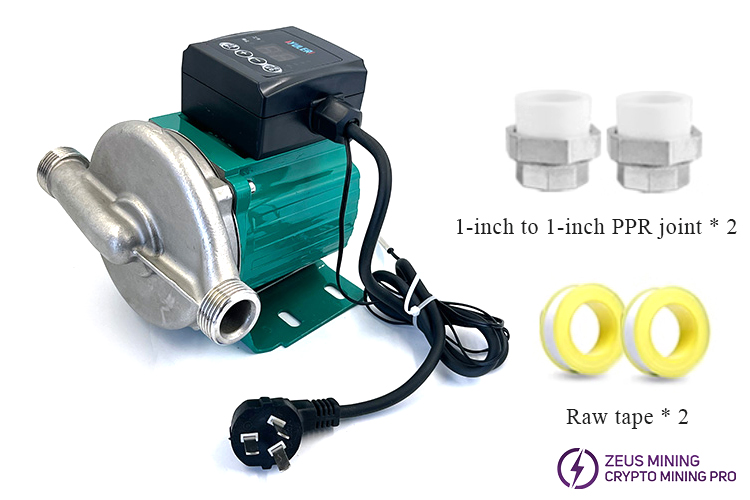

It is designed to retrofit mining sites with liquid cooling systems and supports 7–10 radiator units. It includes PPR pipe fittings and PTFE (plumber’s) tape for quick on-site installation.
Attention: Please select the power cord plug when purchasing this product. We will give you an International universal socket adapter for free according to your choice.
Model | YL-325G |
Voltage | 220V/50Hz |

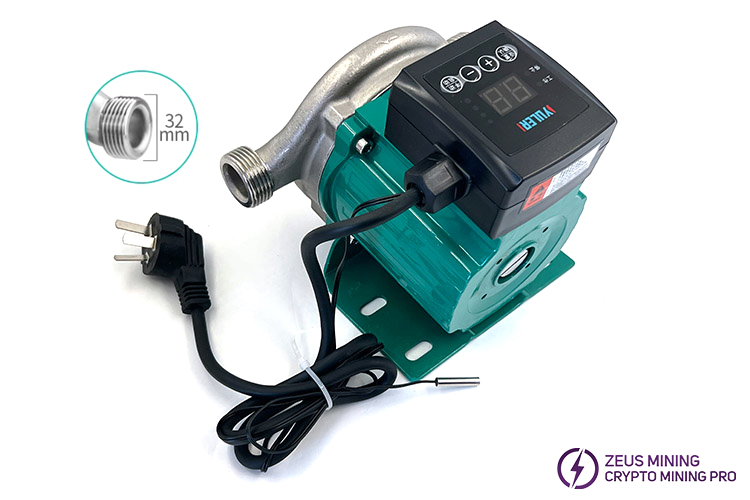

Diameter | 1 inch (32mm) |
Power | 325W |
Maximum lift | 16M |
Circulation area | 100-150m² |
Dimensions | 160x180x166mm |
Maximum flow | 110L/min |
Radiator | 7-10 groups |
1. Digital display integrated temperature controller, with manual adjustment of start/stop temperatures.
2. Dual-purpose design: Supports mineral oil immersion cooling and water-cooled antifreeze circulation cooling.
3. Stainless steel shielding, resistant to coolant and mineral oil corrosion.
4. High-performance copper core motor with precision winding, providing powerful performance and long service life.
5. Wide temperature adaptability: Resistant to both low and high-temperature operating environments.
6. Intelligent chip automatically identifies and switches input voltage, providing a stable power supply to the mine.
7. Adjustable circulation flow rate to meet the high-flow cooling requirements of continuous operation in the mine.
1. Immersion cooling solution: Supports immersion coolant circulation for Antminer S19/S21 series and other ASIC miners, with circulating mineral oil carrying away heat from the chip.
2. Water cooling solution: Works with ZY-601 antifreeze, suitable for Antminer S19 Hydro, S19Pro Hydro, and S21 Hydro closed-loop water cooling systems.
3. Operation tips: When switching between mineral oil and antifreeze as the cooling medium, please clean the pump chamber to avoid liquid mixing and contamination.

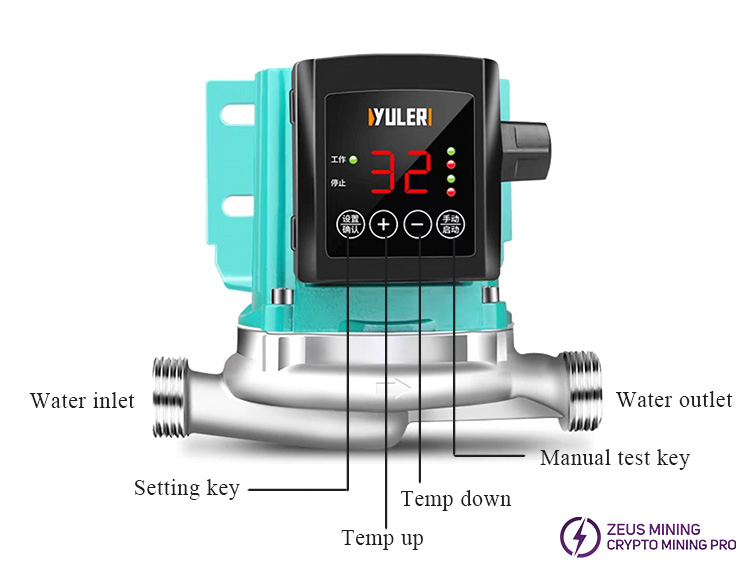

Panel description:
1. Press the setting key to enter the temperature setting mode;
2. The + key indicates temperature increase;
3. The - key indicates temperature decrease;
4. Press the manual test key once to start the water pump and automatically enter the manual start mode; press the manual test key twice to switch to the temperature control mode automatically.
