WANPTEK KPS3030D KPS3060D KPS30100D high power DC power supply

Product description

WANPTEK KPS1530D KPS3003D KPS3030D KPS3060D KPS3080D KPS30100D KPS6020D KPS6040D DC adjustable power supply

WANPTEK DC power supply, as a series of DC-regulated power supply products, is favored by consumers for its high quality, small size, high power density, and high-cost performance. Therefore, it can be used to repair Antminer, Whatsminer, Avalon, Innosilicon, Iceriver and other miner hash boards, such as Antminer S17, T17, S19, S19j pro, D7, L7, Whatsminer M30, M31S, M50, Innosilicon T2, etc.

Note: Please select the power cord plug when purchasing this product. We will give you an International universal socket adapter for free according to your choice.

For more details, please click to view the article: How to use the WANPTEK KPS3030D DC power supply?

Product advantages:

1. It replaces the original power supply of the miner to power the hash board, and the output voltage is more stable;

2. Almost no working noise;

3. When the fault is found in the test fixture and the relevant voltage of the hash board needs to be checked, you only need to connect the voltage-regulated power supply, and there is no need to use a test fixture and the miner's original power supply to power the hash board, and you can test most voltages, effectively improving maintenance efficiency.

Product features:

1. Four-digit high-precision display: four-digit LED digital display, voltage value, current value, and precise digital display.

2. A variety of models are available: a variety of specifications to meet the different needs of customers.

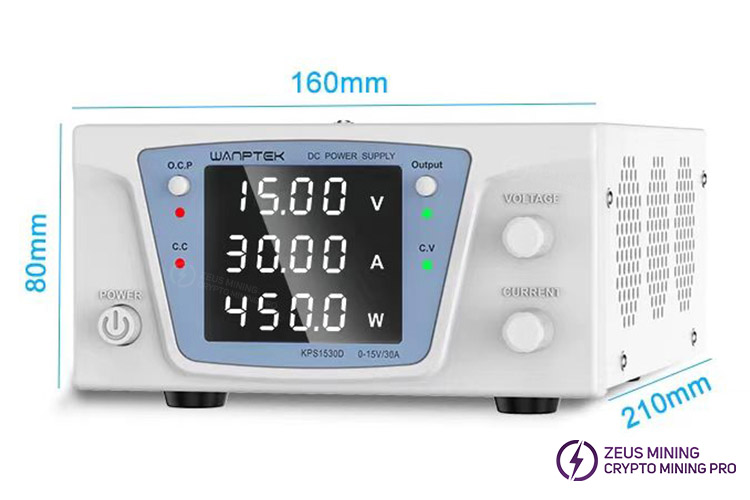

Model: KPS1530D

Output voltage: 0-15V

Output current: 0-30A

Output power: 450W

Size: 80x160x210mm

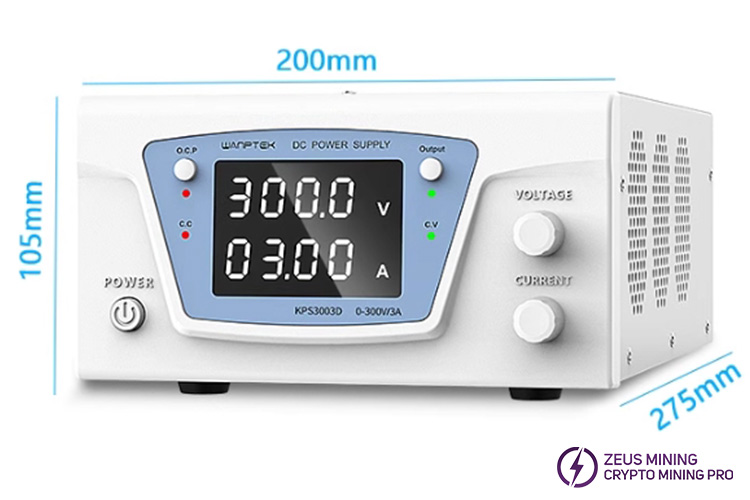

Model: KPS3003D

Output voltage: 0-300V

Output current: 0-3A

Output power: 900W

Size: 105x200x275mm

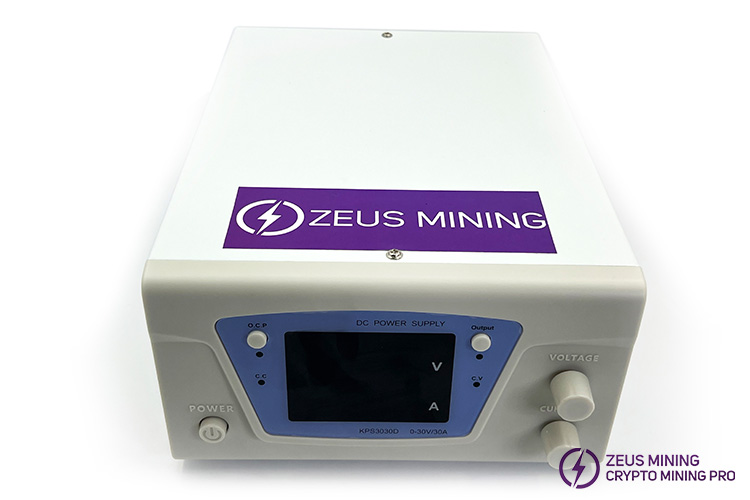

Model: KPS3030D

Output voltage: 0-30V

Output current: 0-30A

Output power: 900W

Size: 105x200x275mm

Model: KPS3060D

Output voltage: 0-30V

Output current: 0-60A

Output power: 1800W

Size: 335x260x130mm

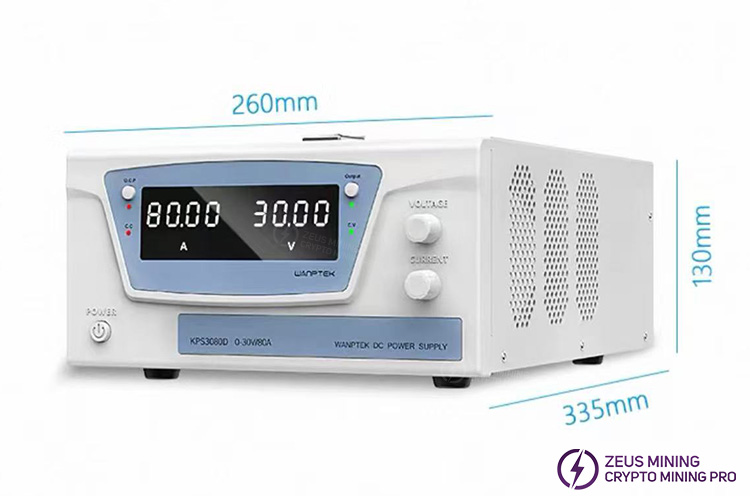

Model: KPS3080D

Output voltage: 0-30V

Output current: 0-80A

Output power: 2400W

Size: 260x335x130mm

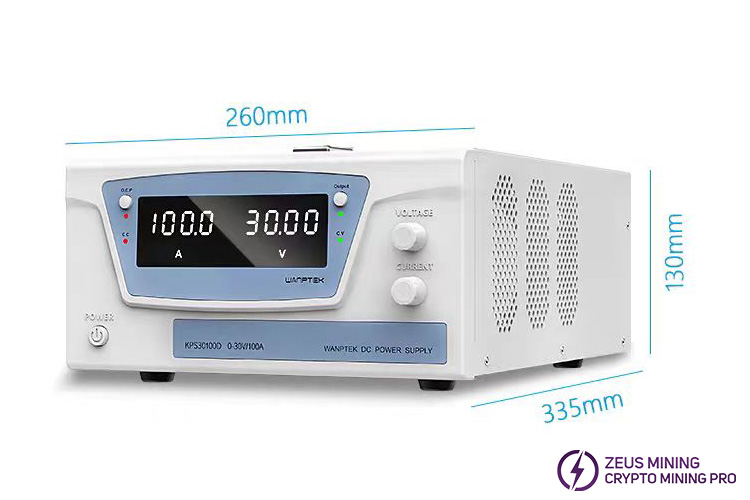

Model: KPS30100D

Output voltage: 0-30V

Output current: 0-100A

Output power: 3000W

Size: 260x335x130mm

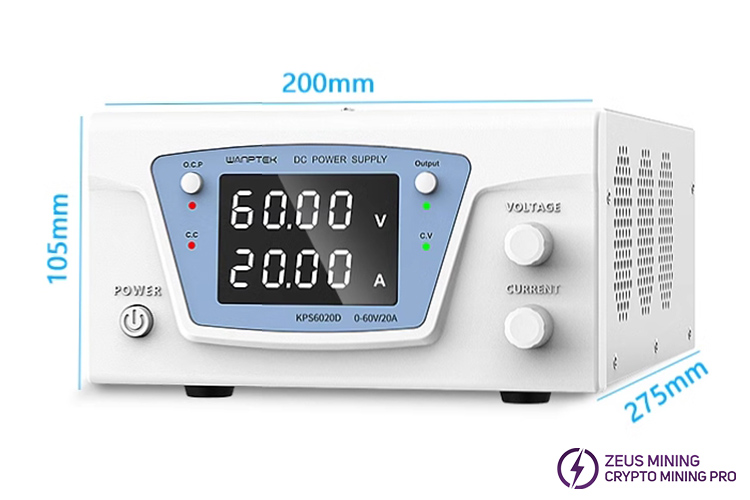

Model: KPS6020D

Output voltage: 0-60V

Output current: 0-20A

Output power: 1200W

Size: 105x200x275mm

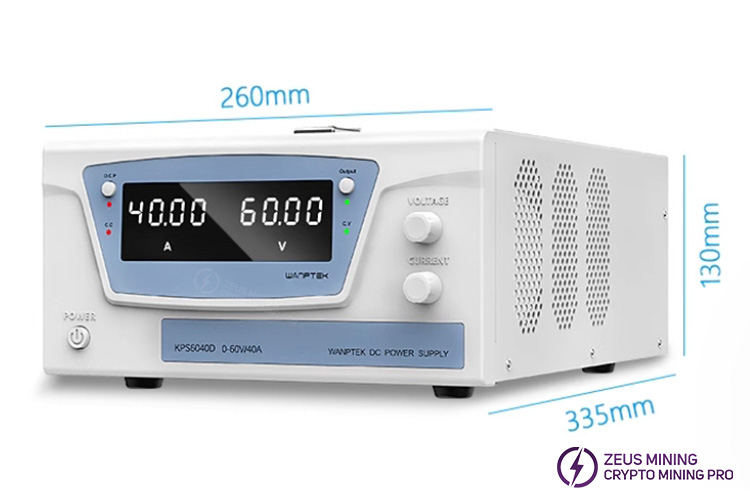

Model: KPS6040D

Output voltage: 0-60V

Output current: 0-40A

Output power: 2400W

Size: 260x335x130mm

3. Powerful function, automatic memory: the set value of the last shutdown (or power off) will be used when the machine is turned on again.

4. Encoder adjustment: Press the encoder switch to move to the left, increase the value clockwise, and decrease the value counterclockwise; simple and easy to operate.

5. OCP short-circuit protection function: When this function is enabled, when the load device is short-circuited, the power supply will stop output, and there will be a buzzer to prompt, and the power supply will automatically resume output after the external contact is short-circuited.

6. Low ripple, low noise: slight voltage fluctuation, stable output, effectively reduces noise interference at work, allowing you to work easily.

7. Multiple test protections: overvoltage protection, overcurrent protection, overload protection, overtemperature protection, short circuit protection.

8. Intelligent temperature control and heat dissipation: when the inside of the machine reaches a certain temperature, the fan will automatically turn on the heat dissipation, the fan speed instrument has low noise, and the fan life is long.

9. The handle design is portable and convenient: it is used to carry it around freely, which is convenient and labor-saving.

Applications:

It is widely used in R&D tests, production lines, circuit board maintenance, product aging test, etc.

Product display

Effect display
