SY7304DBC VIDKB
Function: Antminer S19PRO, S19XP, S19j Pro hash board boost regulator chip.
1 pcs $ 0.88

MOQ: 10 pcs Weight: 0.001 KG

- +

+ Add to cart

Availability: In Stock
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Download the BOM for one-stop delivery
Product description:

SY7304 is a 33V, 4A, 1MHz high-efficiency, current-mode control boost regulator with a VI*** silk screen. It comes in a compact DFN10 package and sits on the Antminer S19PRO hash board. The device integrates a 120mΩ low RDS(ON) N-channel MOSFET for high efficiency. Fixed 1MHz switching frequency and internal compensation to reduce external component size and count. A built-in internal soft-start circuit minimizes inrush current at start-up.

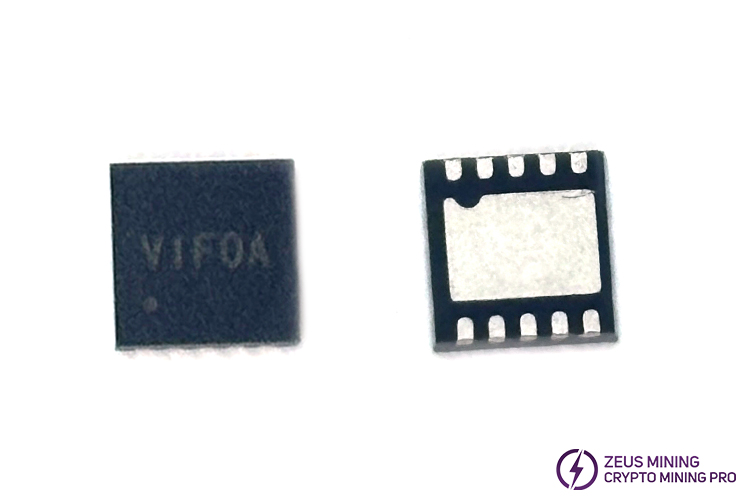

SY7304DBC regulator for S19PRO

Product features:

• Wide input range: 3-33V

• Maximum output voltage: 33V

• 1MHz switching frequency

• Integrated 120 mΩ RDS(ON) switch with 4-A peak current capability

• Internal soft start

• 0.6V±2% reference voltage

• Cycle-by-cycle peak current limit

• Over temperature protection

• RoHS-compliant and halogen-free

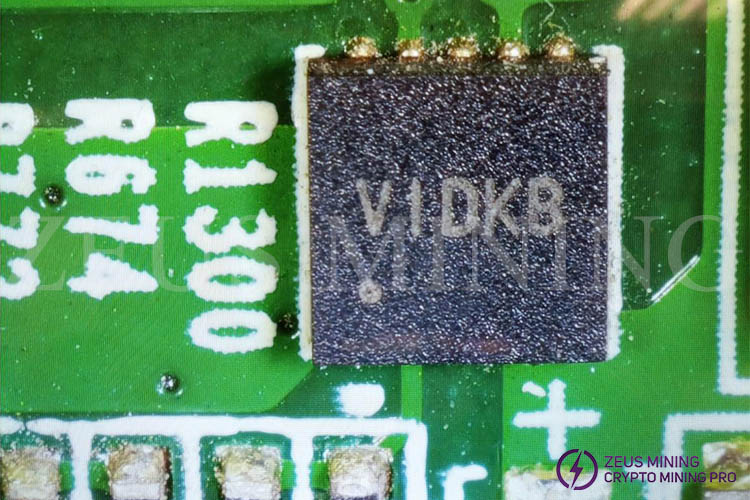

SY7304DBC chip on S19PRO hash board

Application:

• Portable equipment

• Battery-powered system

• Network card powered by PCI or PCI-express slot

• Antminer S19PRO hash board

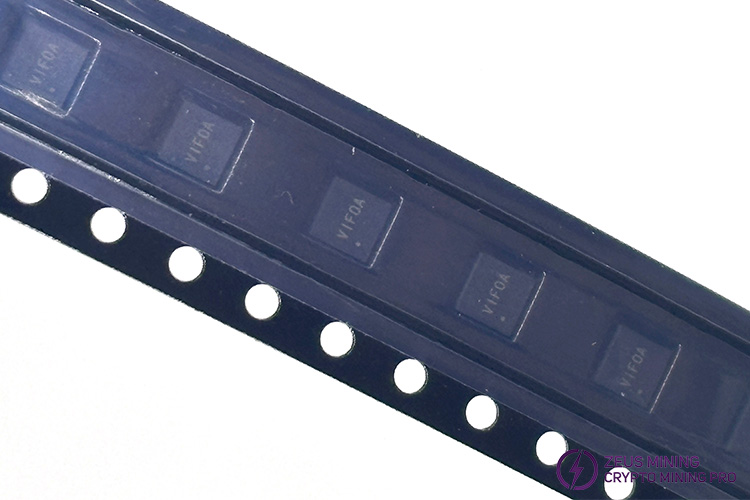

SY7304DBC boost regulator
