Unit Price: | $ 28 |
JLINK V9 is a development environment that fully supports MDK, IAR, DS5, KEIL5 and various mainstreams. The firmware can be freely upgraded to 6.30h and newer versions to ensure that you can use it smoothly on the latest MKD and IAR!

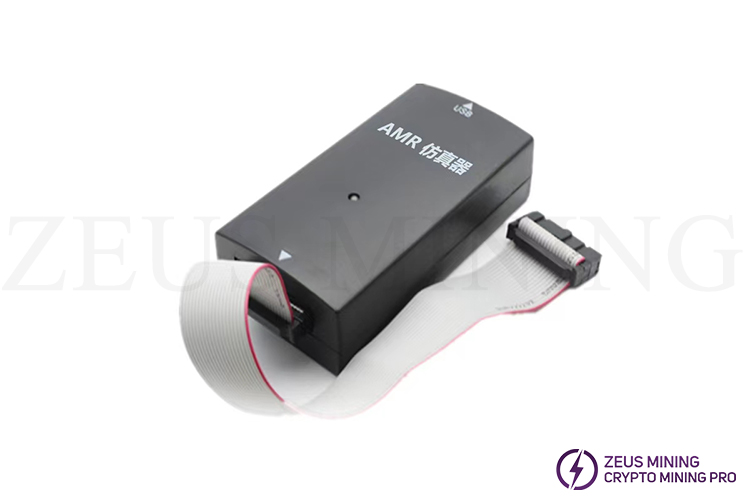

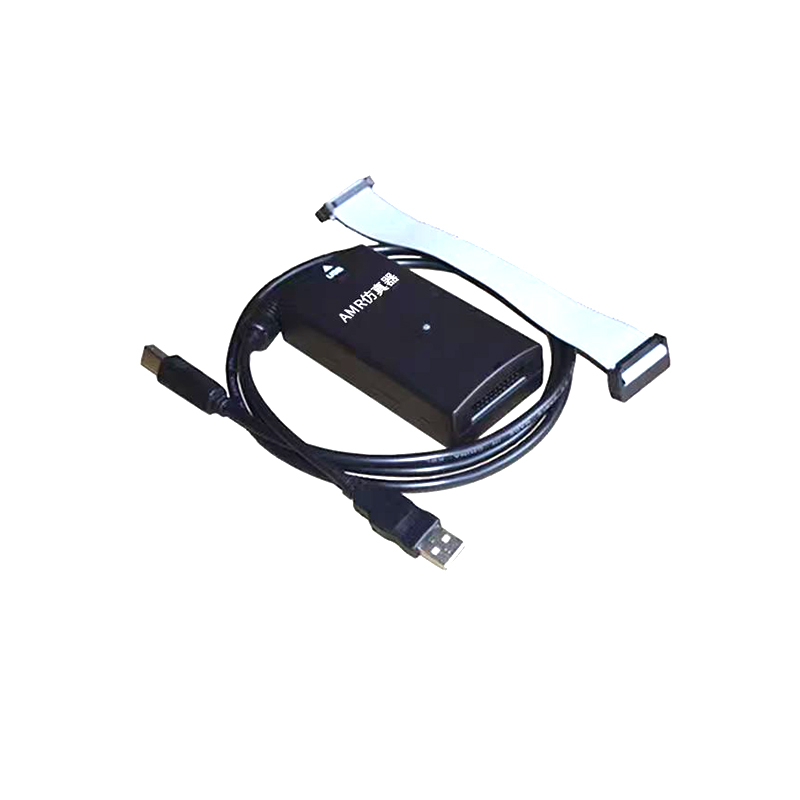

AMRV9 is an ITAG emulator launched to support the emulation of AMR core chips. With IAREWAR, ADS, KEIL, WINARM, Re-alView, and other integrated development environments, supported CPU: AMR7/9/11, Cortex-A5/A7/A8/A9, Cortex-MO/M1/M3/M4/M7, Cortex-MO/M1/M3/M4/M7, Cortex -tex-R4, Microchip PIC32 and Renesas RX100/RX-200 / RX610 / RX621 / RX62N / RX62T / RX630 / RX631 / RX-63N and other core chip emulation.
The V9 simulation download debugger supports all chips of the Cortex-M core. It has a USB communication function and can communicate with a PC. The other end communicates with supporting devices through SWD/ITAG/serial port to complete the debugging simulation download task. It is seamlessly connected with IAR, KEIL, and other compilation environments, easy to operate, connect and learn. It is a practical development tool for learning and developing AMR.
Product features:
* USB2.0 interface;
* Supports Serial Wire Debug (SWD)
* Supports Serial Wire Viewer (SWV)
* Download speed up to 720kb/s;
* DCC mode up to 800kb/s;
* Can be seamlessly integrated with IAR Workbench, Keill, ADS, RVDS;
* No need for external power supply; take power through USB;
* JTAG speed is 12 MHZ;
* Automatic kernel recognition;
* Speed automatic identification;
* Support adaptive clock;
* Can monitor all ITAG signals and automatically adapt to the voltage of the target board;
* Support multi-core debugging;
* Completely plug and play;
* Includes 20-pin standard JTAG connector;
* Support 1.2V-5V target board voltage;
* External power supply provides 5V 300mA (whether the output is controlled by command);
* External power supply provides 3.3V 300mA (the standard version controls the output through commands; the high-end version realizes it through the J3 jumper; the isolated version does not support external 3.3V output);
