PE PU PG PEG pneumatic fitting 8mm 10mm 12mm air connectors 3 way plastic pipe hose tube connector
Pneumatic fittings PE PU PG PEG series connectors are often used to install water-cooling equipment for miners. This ensures that the water flow quickly removes the heat emitted by the hash board chip and that the equipment operates stable. The joint has good air tightness, is resistant to plugging and unplugging, does not leak, and is strong pressure-resistant.

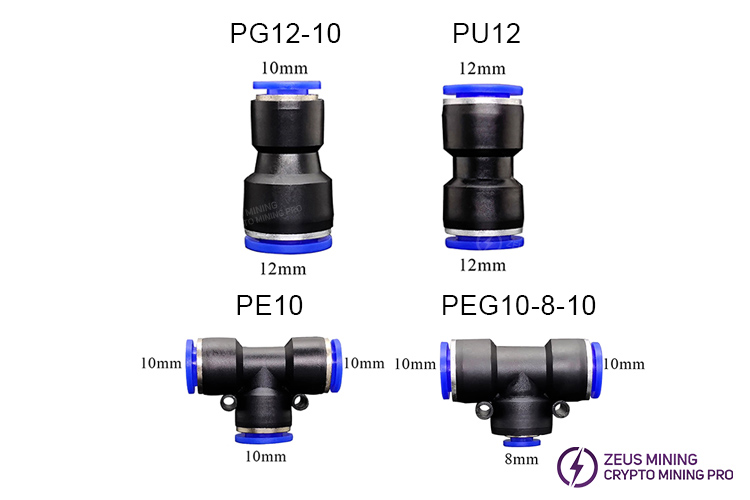

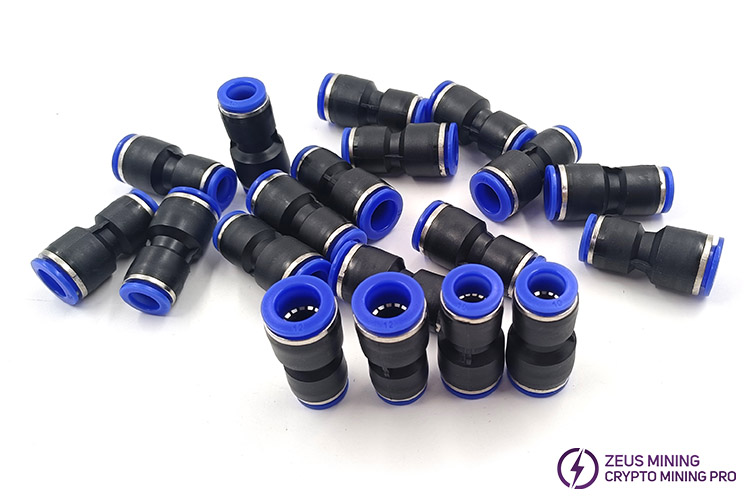

PG pneumatic fitting model including: PG12-8, PG10-8, PG12-10;
PU pneumatic fitting model including: PU8, PU10, PU12;

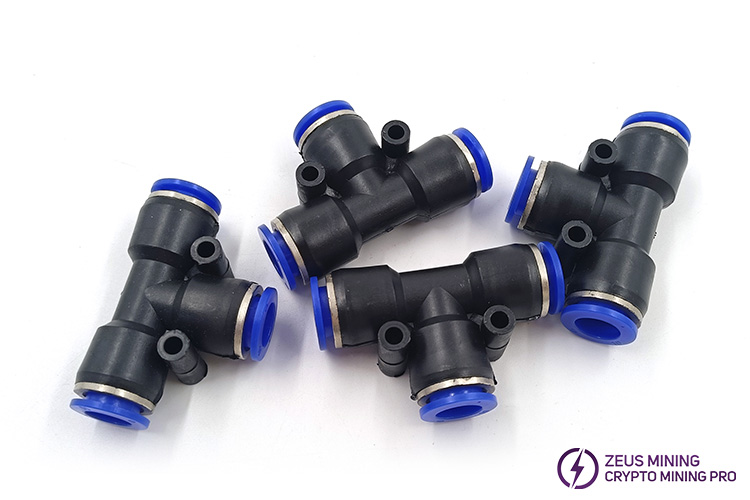

PE pneumatic fitting model including: PE8, PE10, PE12, PE12;
PEG pneumatic fitting model including: PEG10-8-10, PEG12-8-12, PEG8-10-8, PEG12-10-12, PEG8-12-8, PEG10-12-10, PEG10-16-10.
Product features:

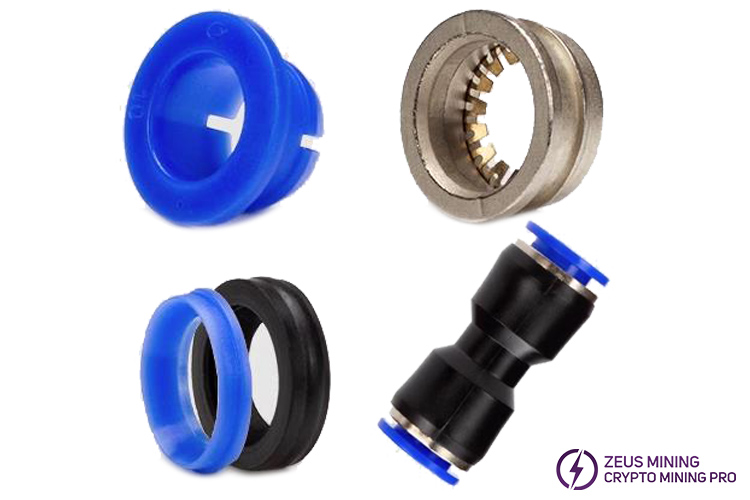

1) Round release cap: press down to release the circlip, pull out the air tube, and the number on the cap indicates the outer diameter of the connected air tube;
2) Locking sleeve & sealing ring: The upper end of the locking sleeve is connected to the ring seat, and the lower end is buckled with a sealing ring. The sealing ring is specially designed with grooves to ensure sealing;
3) Fixed ring seat & circlip: high-pressure resistance, tight seal, not easy to trip, good elasticity, strong grip, resistant to pulling out and plugging, and prevents the tube from falling off;
4) High-strength plastic body: sturdy and durable, not easy to deform and burst;
5) It is resistant to high pressure and is not easy to fall off; it can withstand greater and stronger pressure without falling off and has a long service life and more peace of mind;
6) 360° flexible rotation: After installation, the plastic tube can also be rotated 360°, which is convenient, simple, and intelligent to install.
Production parameters:
Working temperature: 0~60℃
Normal working pressure: 0~0.9Mpa(0~0.92kgf/cm2)
Maximum operating pressure: 1.32Mpa (1.35kgf/cm2)
Interface material: plastic shell, stainless steel circlip
Use trachea: PU hose, nylon tube

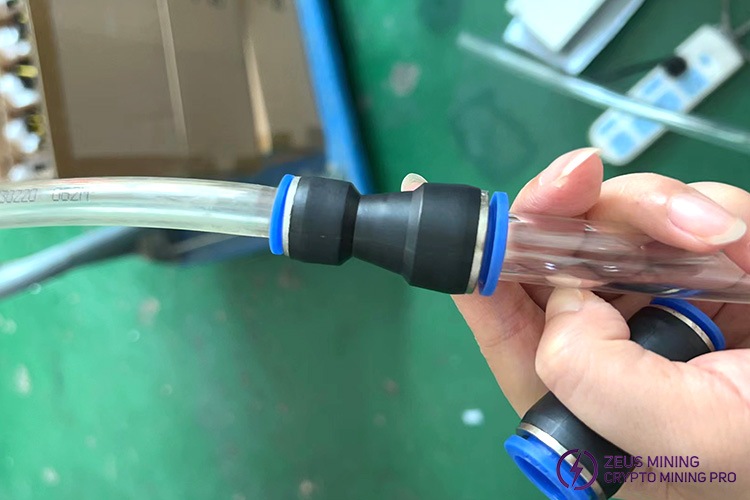

The pneumatic fittings connector is used to connect the bellows and rigid tubes of corresponding sizes. For example, if the corresponding model is 8, a tube with an outer diameter of 8 mm needs to be connected; if the corresponding model is 10, a tube with an outer diameter of 10 mm needs to be connected.
pneumatic fittings connector dimensions and details:
