| Unit Price: | $ 175 |

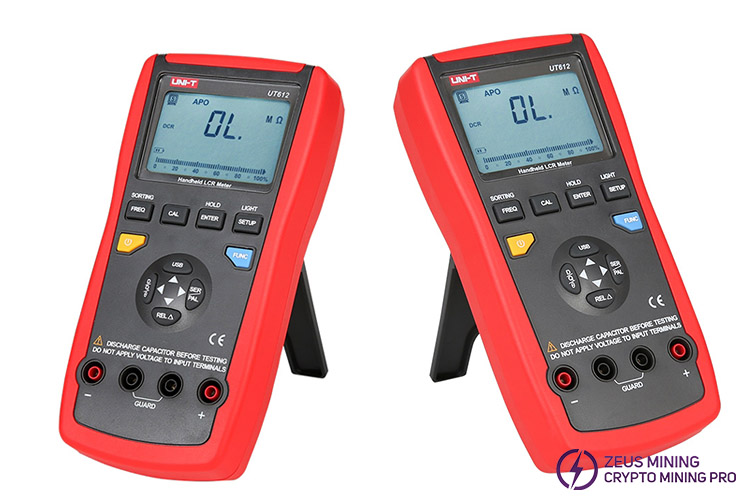

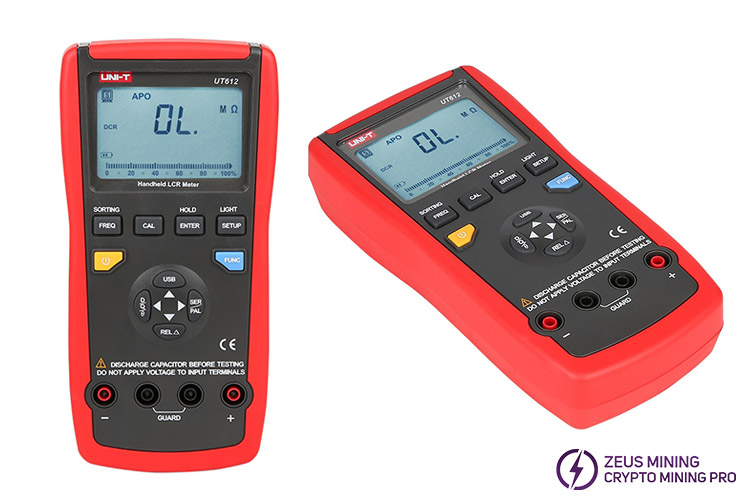

UNI-T UT612 digital bridge meter is a handheld automatic range LCR digital bridge meter with stable performance, safety, and reliability. It is an instrument used to measuring inductance, capacitance, and resistance for ASIC miner hash board / control board / power supply. It has the characteristics of low power consumption, high measurement accuracy, and fast speed. Series and parallel measurement mode selection, measuring component quality factor, loss, phase angle, equivalent resistance measurement, and DC resistance measurement. It can provide up to 5 measurement frequencies in inductance, capacitance, and resistance AC mode, which can better meet the actual needs of users.
UNI-T UT612 handheld LCR meter is suitable for the measurement and screening of inductance, capacitance, and resistance in laboratories, production lines, maintenance points, and teaching. It is an ideal tool for maintenance by the majority of users.
LCR UT612 product parameters list:
Basic skills | Measuring range | Highest accuracy |
Model | UT612 | |
Inductance(H) | 20uH~2000H | ±(0.5%+5) |
Capacitance(F) | 200pF~ 20mF | ±(0.5%+5) |
Resistance(Ω) | 20Ω~200MΩ | ±(0.3%+5) |
Test frequency (Hz) | 100Hz/120Hz/1KHz/10KHz/100KHz | √ |
Test voltage | 0.6Vrms | √ |
Test parameters | L/C/R/DCR/Q/D/ESR | √ |
Special function | ||
Maximum display | 20000 | |
D/Q maximum display | 2000 | |
D/Q resolution | 0,001 | √ |
Auto range | √ | |
Real-time display of test frequency | √ | |
Measurement mode | Series or parallel | √ |
Automatic shut-down | √ | |
Low voltage display | ≤6.8V | √ |
Digital hold | √ | |
Relative measurement | √ | |
USB data transfer | √ | |
USB interface/PC data recording | 60000 | |
LCD backlight | √ | |
Analog strip | 26 paragraphs | |
Deviation ratio measurement | √ | |
Filter function | √ | |
Calibration function | √ | |
Output impedance | 120Ω | √ |
LCR automatic recognition measurement | √ |
General characteristics:
Power | 9V battery (6F22) or USB |
Display | 40mm * 63mm |
Product color | Red and grey |
Product net weight | 374g |
Product size | 96mm * 193mm * 47mm |

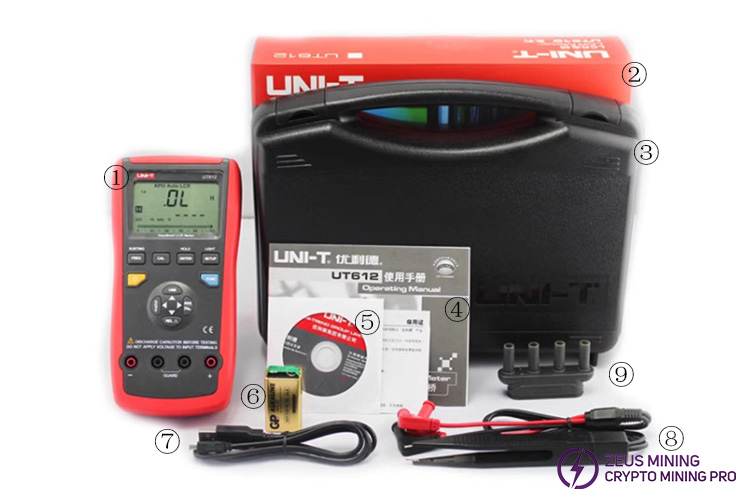

① UT612 multimeter host
② Packing box
③ Storage box
④ User manual
⑤ Software CD
⑥ Battery
⑦ USB data cable
⑧ SMD test clamp
⑨ Adapter socket
