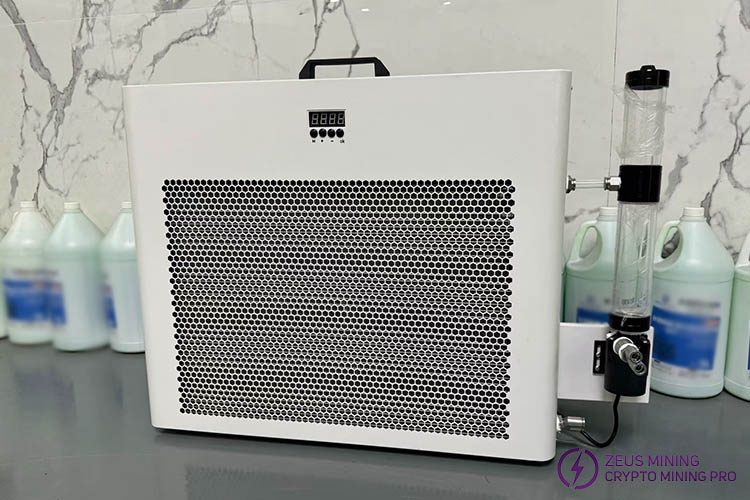

12.8KW water cooling radiator for 2pcs ASIC miner

Product description

Water cooling kit row 12.8KW radiator cooler for Antminer Whatsminer ASIC miner

12.8KW intelligent temperature-controlled water-cooled radiator can support 2 miners dissipating heat at the same time. It is suitable for all water-cooled miners, such as Whatsminer M33S++, M53, Antminer S19 Hydro, S19XP Hydro, S19PRO+ Hydro, etc., and also for most air-cooled models, such as S19, S19jpro, L7, D7, M20, M30s, M50 series, KS5L, KS5M, KS3L, KS3M, etc.

This radiator is the simplest and most convenient overclocking system for air-cooled and water-cooled miners. This integrated water-cooling radiator has 12 powerful intelligent fans built in, which are fully intelligent and automatically adjust the speed according to the temperature to achieve efficient heat dissipation and stable operation of miners. While helping the miners to overclock, it also helps miners to increase their mining income.

12.8KW industrial water cooling radiator features:

1. Powerful, transparent, and low-noise water pump, high lift, silent;

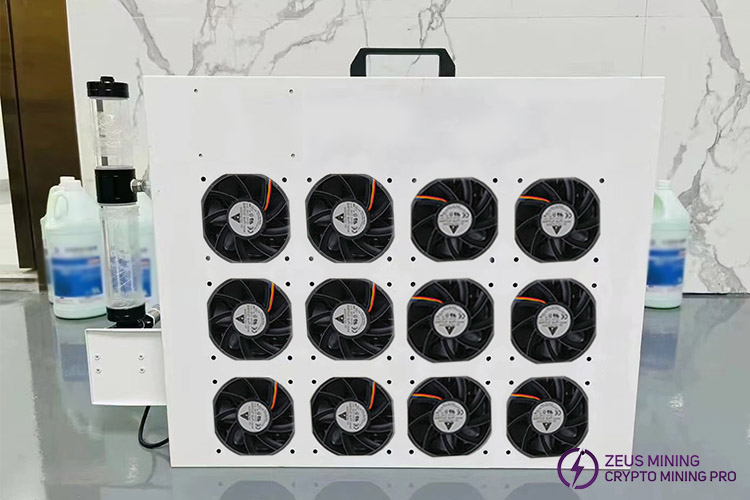

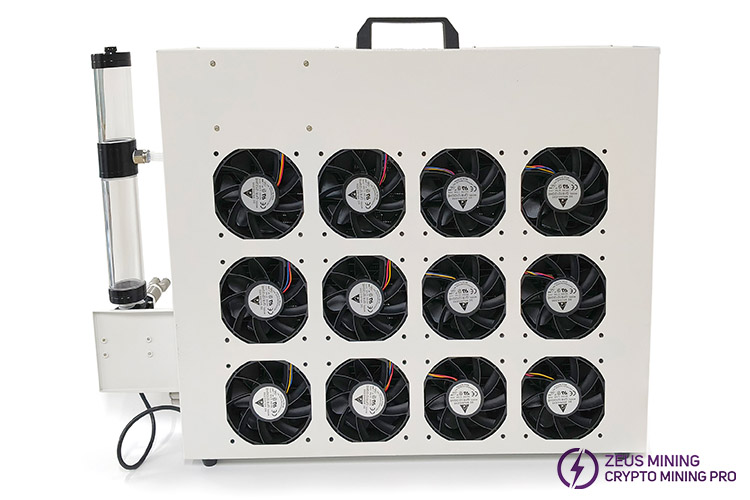

2. 12 powerful intelligent fans, which can automatically adjust the speed according to the temperature;

3. A high-strength acrylic water outlet pipe is used. The water level is visible, and it is resistant to high temperature, impact, and corrosion.

4. Impact-resistant and corrosion-resistant industrial-grade water pump, long life, and stable water supply.

12.8KW ASIC Hydro cooling mining radiator advantages:

1. All water-cooled models can be used, such as M33S++, M53, S19 Hydro, S19XP Hydro, S19PRO+ Hydro, etc.

2. Most air-cooled models, such as the S19, S19jpro, L7, D7, M20, M30s, M50 series, KS3M, KS3L, KS5M, KS5L, etc., can also use this water cooling radiator; just use it with the corresponding water cooling plate.

3. If you want to overclock, you only need to use an air-cooled overclocking power supply + a water-cooled overclocking plate. (Water-cooled models do not need to be matched with a water-cooled overclocking plate, just a water-cooled overclocking power supply)

Please click the blog "What is the 12800W water cooling radiator and how to use it?" to view the specific usage of this product.

Product parameter comparison:

Note:

1. When using it on two water-cooled miners simultaneously, the total hashrate of the miners cannot exceed 500T.

2. When using it on one water-cooled miner, the hashrate of the miner cannot exceed 400T.

3. The product is available in black and white, and the colors are shipped randomly.

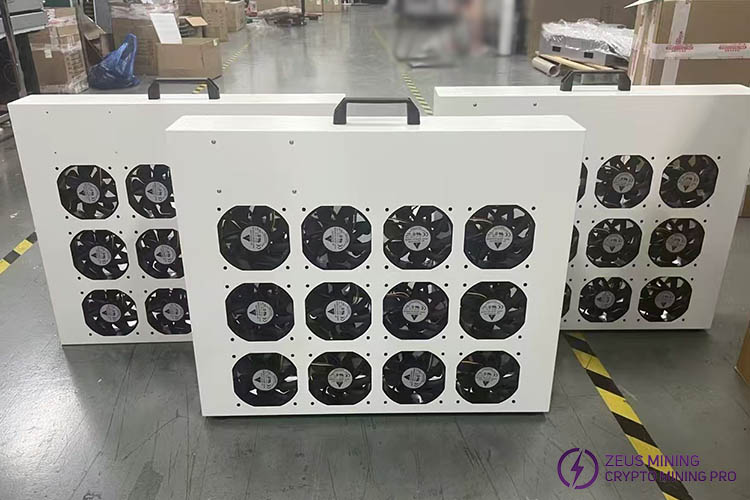

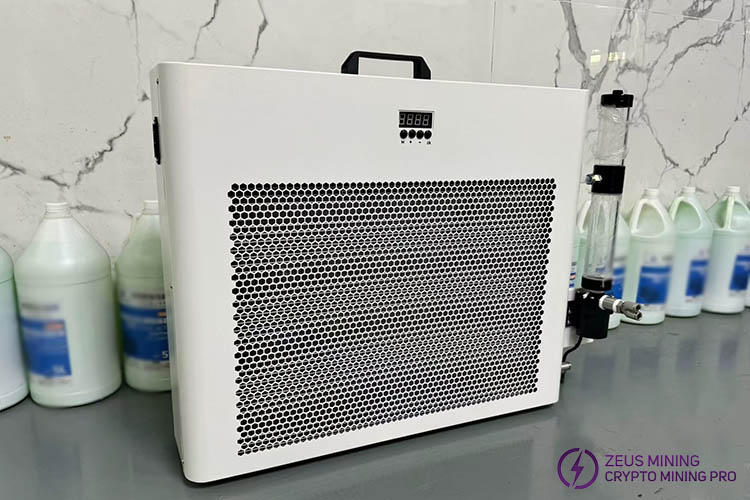

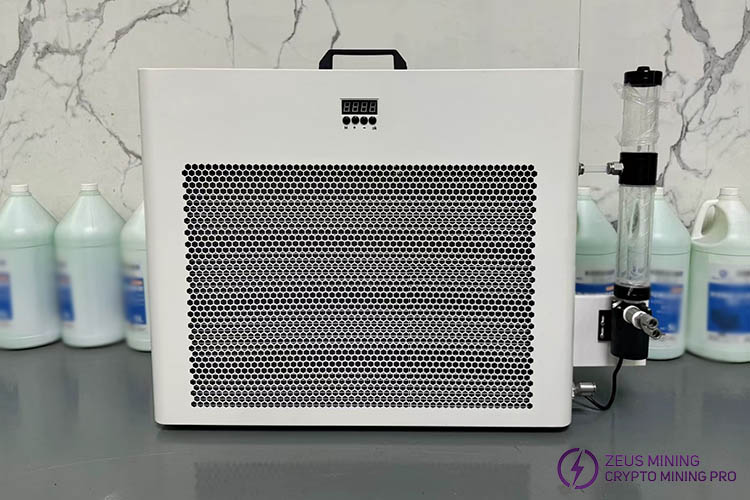

Product display

 Do not set or press the black buttons on the radiator, otherwise it will not work properly.

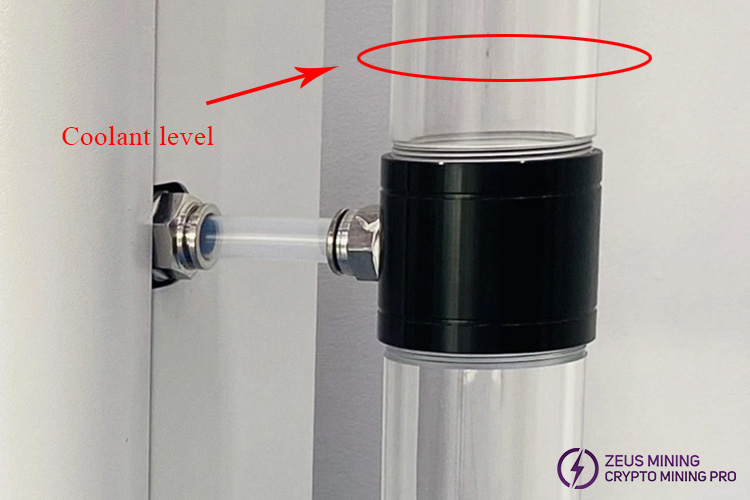

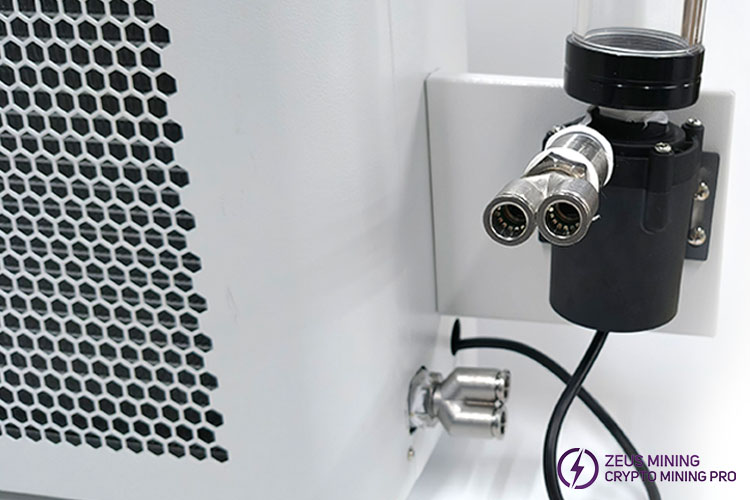

The water tank adopts a more reasonable middle water inlet method, and the middle water pipe must remain level to ensure normal water flow. And the coolant level needs to be higher than the water pump inlet port, as shown in the following figure:

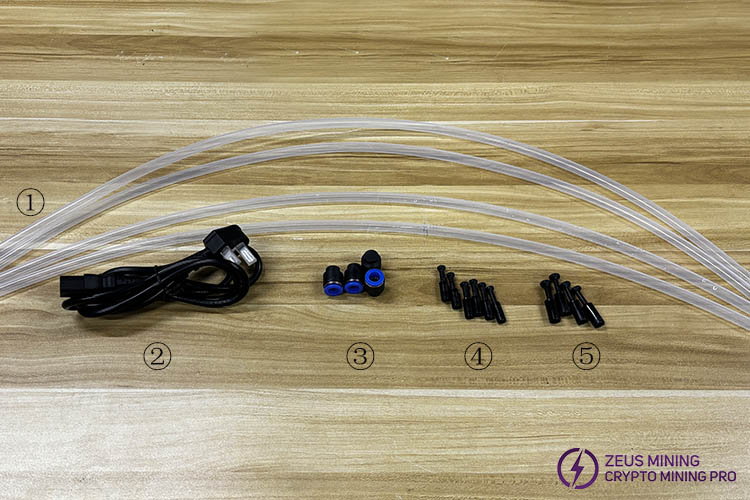

Product composition

① PVC transparent tube 10mm * 4 (total 4 meters)

② Power cord * 1

③ PPF-10 10mm tube cap * 4

④ PP-8 8mm pneumatic blanking plug * 6

⑤ PP-10 10mm pneumatic blanking plug * 4

Radiator connection instructions:

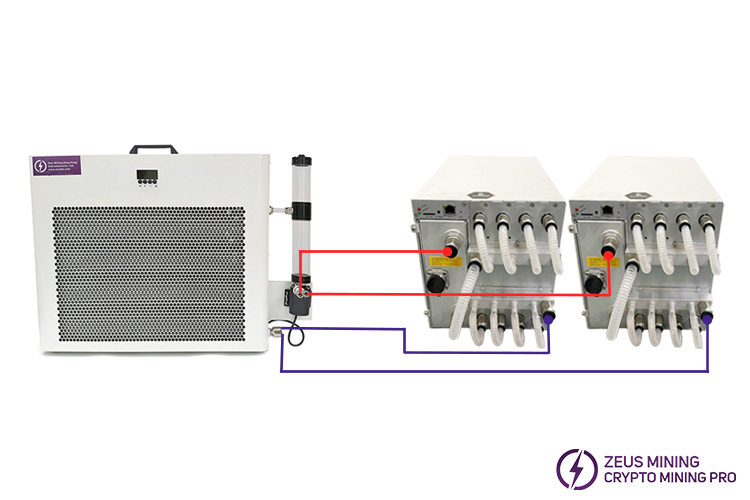

For 2pcs original Hydro miners:

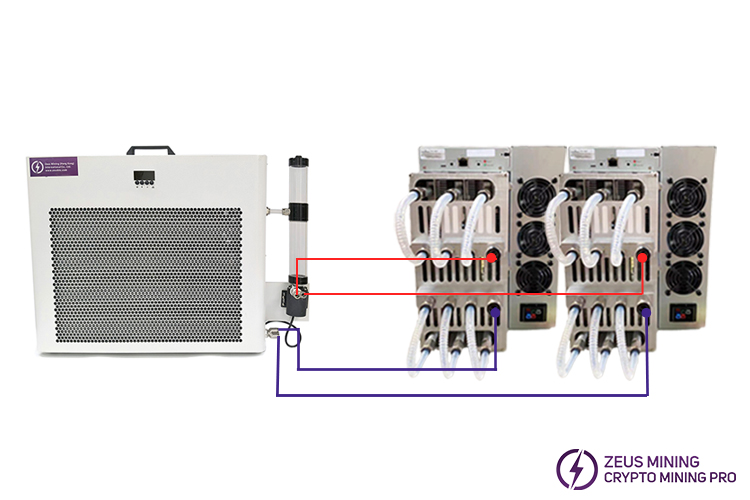

For 2pcs air cooling to water cooling miners:

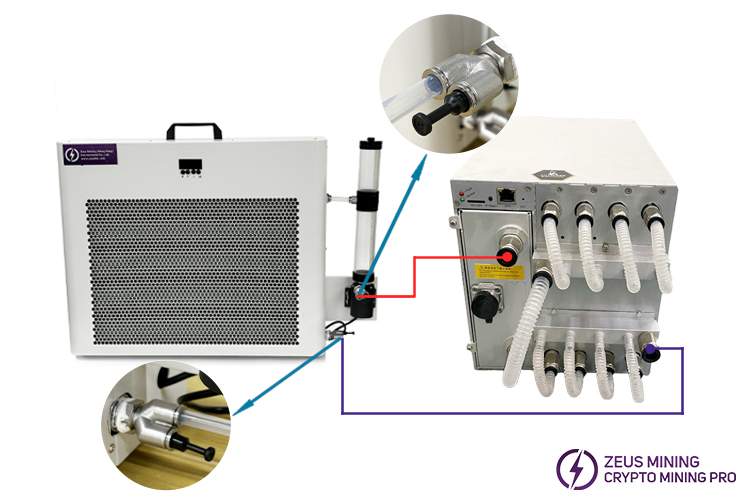

For 1pc original Hydro miners:

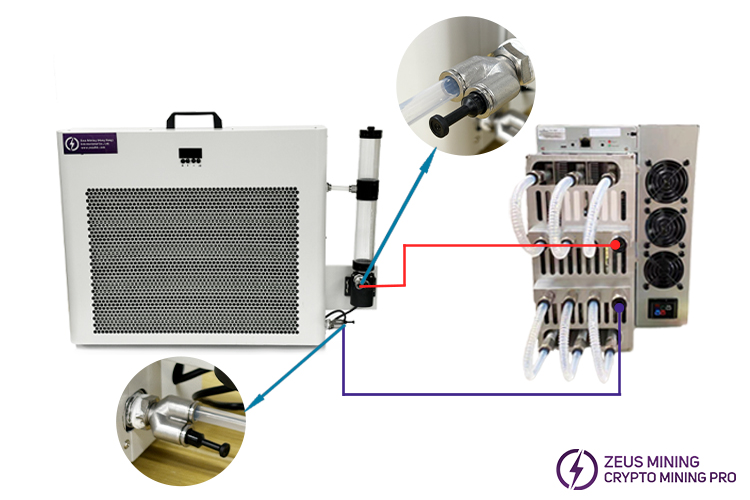

For 1pc air cooling to water cooling miner:

Effect display

Water cooling radiator test data:

Single miner test:

Two miners test:

Note: The test temperature varies depending on the environment, including the air inlet and outlet, temperature, humidity, and air intake and exhaust volume; it is for reference only.
