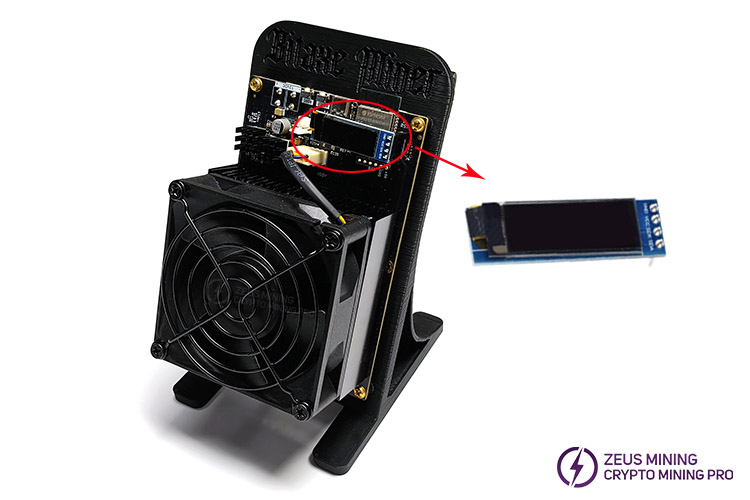

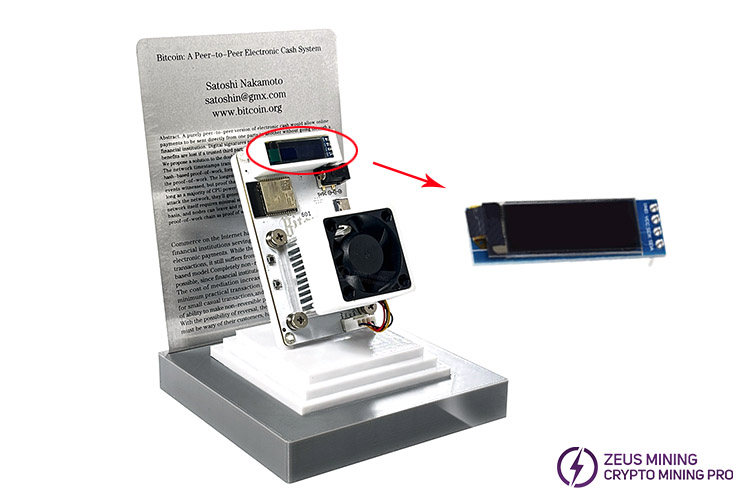

The 0.91 inch OLED LCD module is a small display device based on organic light-emitting diode (OLED) technology, utilizing an IIC (I²C) communication interface, with a resolution of 128×32 pixels, suitable for replacing the faulty display screens of Bitaxe SupraHex 701 SOLO miner and Bitaxe Gamma 601 SOLO miner. The 0.91-inch OLED screen display replacement not only improves the performance of your mining equipment but also provides users with an excellent visual experience, ensuring that you don't miss any mining details. Its durability, compatibility, and efficiency make it a must-have upgrade for your mining equipment.
0.91 inch OLED LCD display module features:
1) Ultra-high-definition display: The OLED LCD screen brings crystal-clear visuals, ensuring that you can easily track mining progress and system analysis.
2) Seamless compatibility: This display replacement can be easily adapted to your existing Bitaxe SupraHex 701 or Bitaxe Gamma 601 equipment, ensuring seamless integration with your mining hardware.
3) Durable and reliable: The monitor is rugged and reliable, ensuring long life and excellent toughness, giving you peace of mind that your investment is protected.
4) Enhanced user interface: The intuitive and easy-to-use interface allows you to easily operate the mining software.
0.91 inch OLED LCD display module parameters:
Size | 0.91 inches | Resolution | 128*32 |

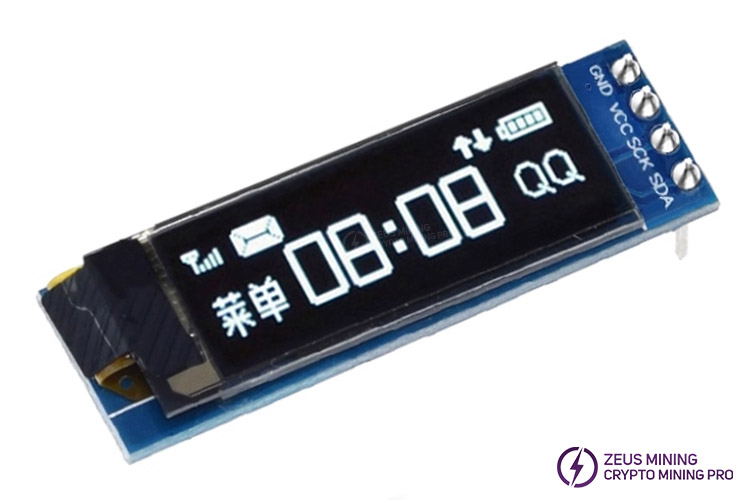

Driver IC | SSD1306 | Interface type | IIC |
Display color | White light | Operating voltage | 3.3V |
Operating temperature | -40℃~80℃ | Link mode | COG |

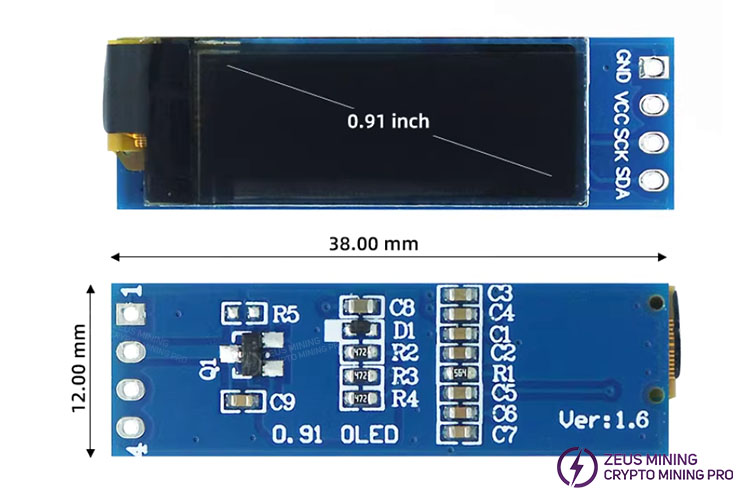

Screen size | 10*11.5*1.2mm | Module size | 38*12*2.6mm |
Display size | 22.38*5.58mm |
0.91 inch OLED LCD display module pin definition:
PIN | SYMBOL | Descriptions |
1 | GND | Ground of Logic Circuit |
2 | VCC | Power supply for Logic |
3 | SCK | Serial clock input |
4 | SDA | Serial data input |
0.91 inch OLED LCD display module application:
