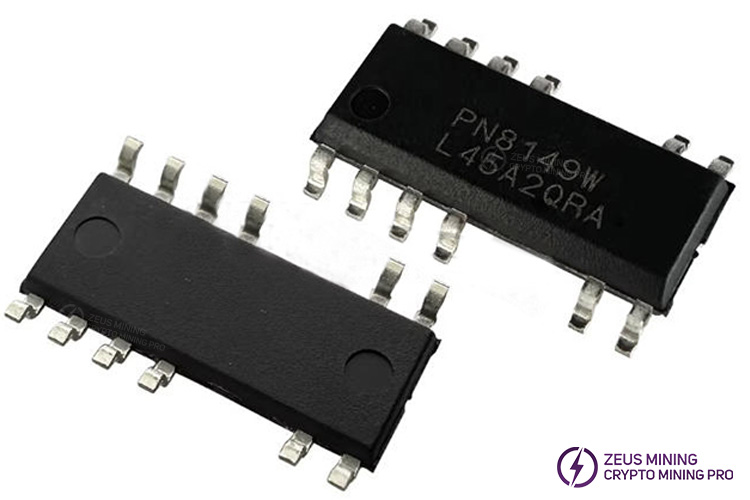

PN8149WSC-A2 High-Performance Quasi-Resonant Flyback Converter for APW17 PSU
The PN8149WSC-A2 is a power management chip for the Antminer APW17 power supply, packaged in an SOP-12 package. It integrates a quasi-resonant current-mode controller and power MOSFETs and is specifically designed for high-performance AC-DC switching power supplies, requiring simplified external components. The PN8149 offers comprehensive, intelligent protection features, including over-temperature protection, output overvoltage protection, cycle-by-cycle overcurrent protection, output open- or short-circuit protection, secondary rectifier short-circuit protection, and overload protection.
Features:
• Built-in 800V high avalanche capability power MOSFET
• quasi-resonant operation
• Maximum switching frequency 125kHz
• Simplified peripherals, no need for start-up resistors
• The high and low-voltage pins are arranged up and down to improve the creepage distance
• The built-in high-voltage startup, no-load standby power consumption <50mW @230VAC
• Excellent comprehensive protection function:
-Over temperature protection (OTP)
-Output overvoltage protection
-Cycle-by-cycle over-current protection (OCP)
-Output open/short circuit protection
-Secondary rectifier short circuit protection
-Overload protection (OLP)
