Antminer Miner Cooling Fan 120mm*120mm*38mm
Antminer Miner Cooling Fan 120mm*120mm*38mm
1 pcs $ 6 $ 5

MOQ: 10 pcs Weight: 0.3 KG

+ Add To Cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Product description:

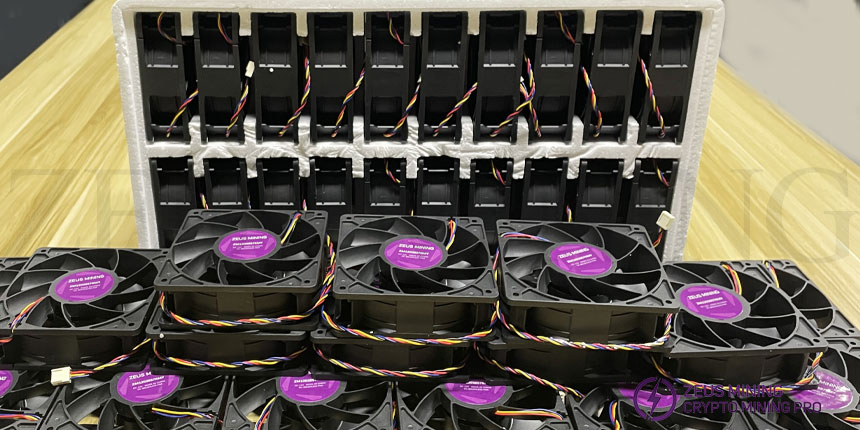

Antminer original cooling fan

Antminer S9 fan dimensions is 120mm*120mm*38mm 12V, it can be used at Antminer V9 S9 S9J S9K S9SE S11 S15 S17 S17Pro S17+ T17 T17E S19 S19Pro ASIC miners

When submitting the order, please inform the salesman of the miner model or note the miner model in the message box. If not told, we will default to sending a 6000 RPM cooling fan.

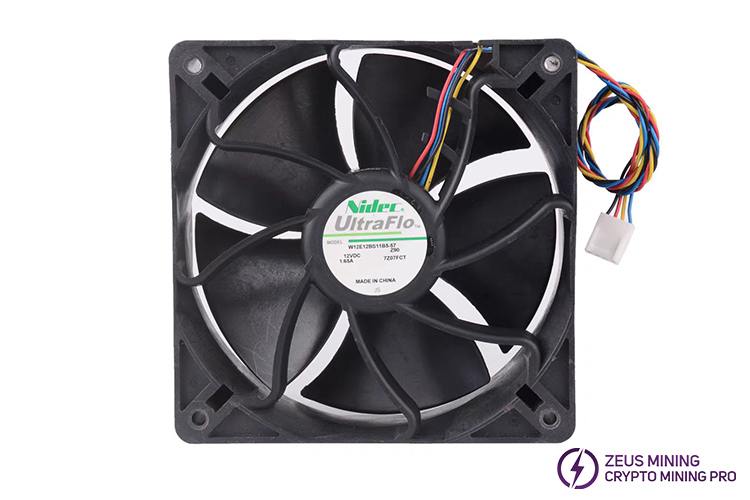

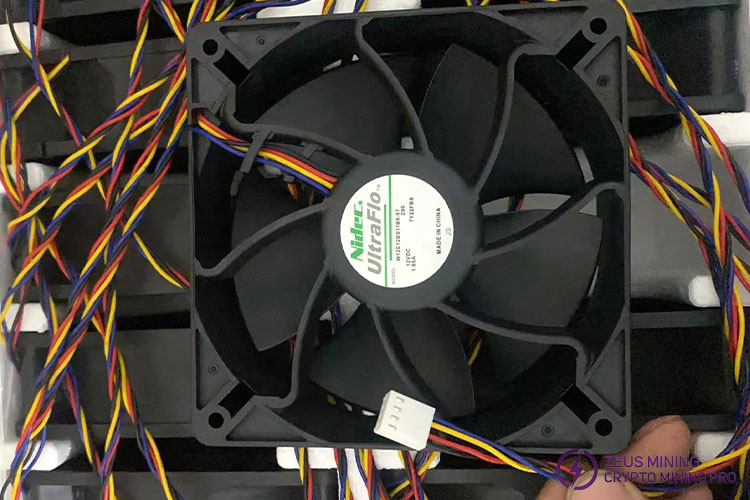

12CM 6000 RPM fan

1.65A 6000 RPM Miner fan: used for Antminer S9, L3+.

3A 7000 RPM Miner fan: used for Antminer 17 series, 19 series, and the latest miners.

New official accessories, Quality assurance, brand new Antminer original accessories. This fan is an Antminer S9 replacement fan, used to replace a damaged Antminer fan.

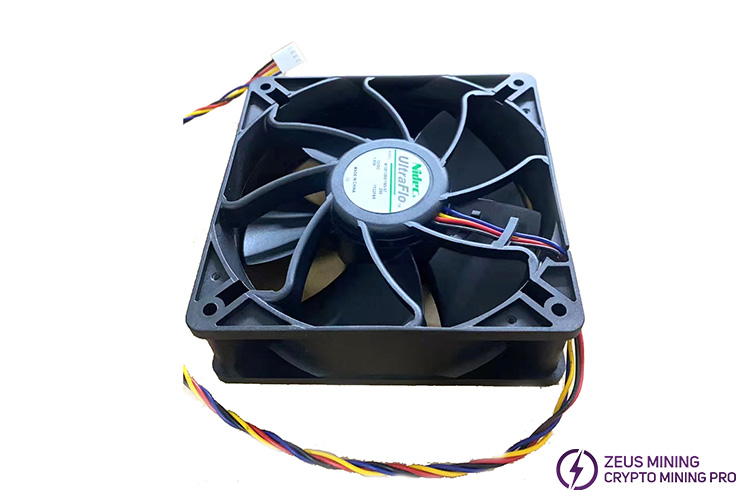

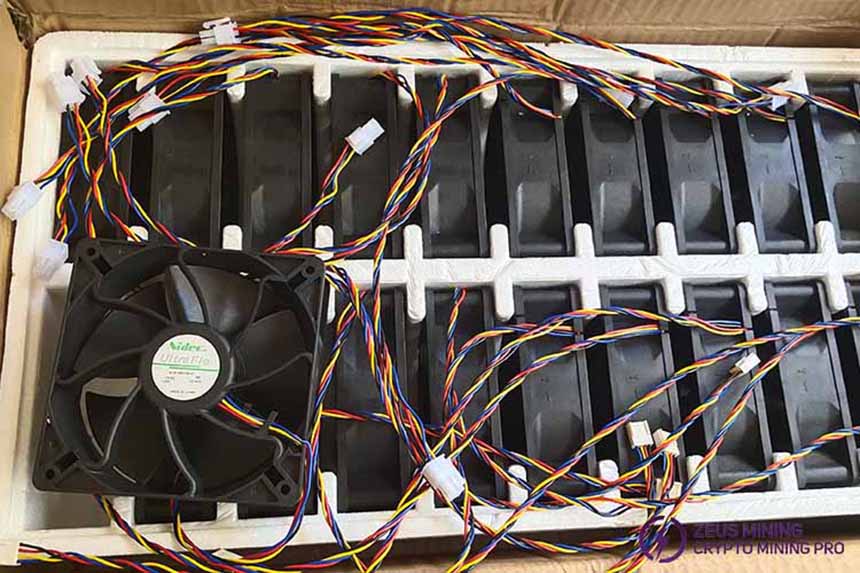

12CM miner fan replacement

Similarly, it also applies to other miners, for example: Ebit Whatsminer INNOSILICON ...

12CM miner fan repair

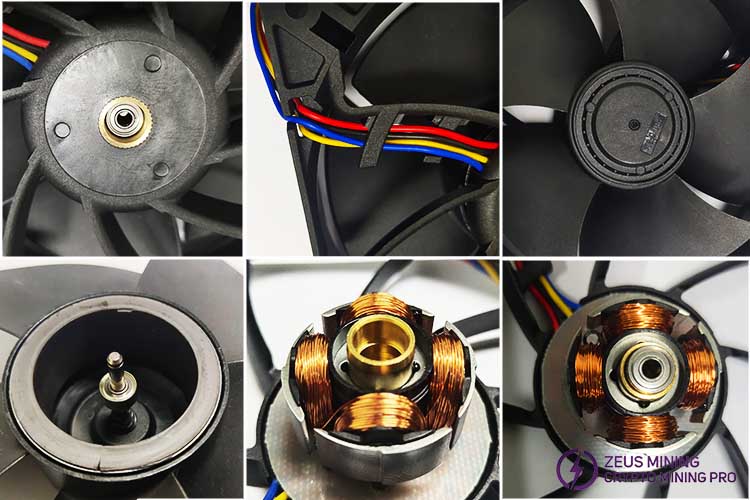

Adopt metal bearing, copper fixing ring, strong and durable.

Product parameter:Fan with an outer diameter of 120mm.

Lead
4-pin (support PWM) original plug
VoltageDC 12V
Current1.65A / 3A
Speed6000RPM / 7000RPM
Noise70.5dB-A
BearingHigh precision double ball bearing
Fan frameone-time injection molding, PBT+30% glass fiber VO grade flame retardant
Fan rotation directionviewed from the direction of the rotating blade, it is counterclockwise.
Operating temperature-10°C~70°C
Storage temperature-40°C~70°C
Power rangeplus or minus 15% of rated power
Insulation resistancegreater than 500 megohms
Withstand voltagesink leakage current 0.5mA 500V/min
Working life80,000 hours of working at 25°C

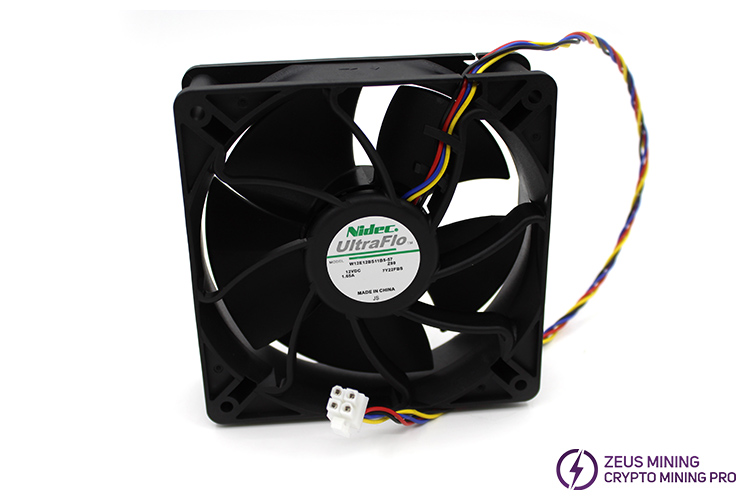

12V 12CM fan

12CM fan parameters

best 12CM miner cooling fan
