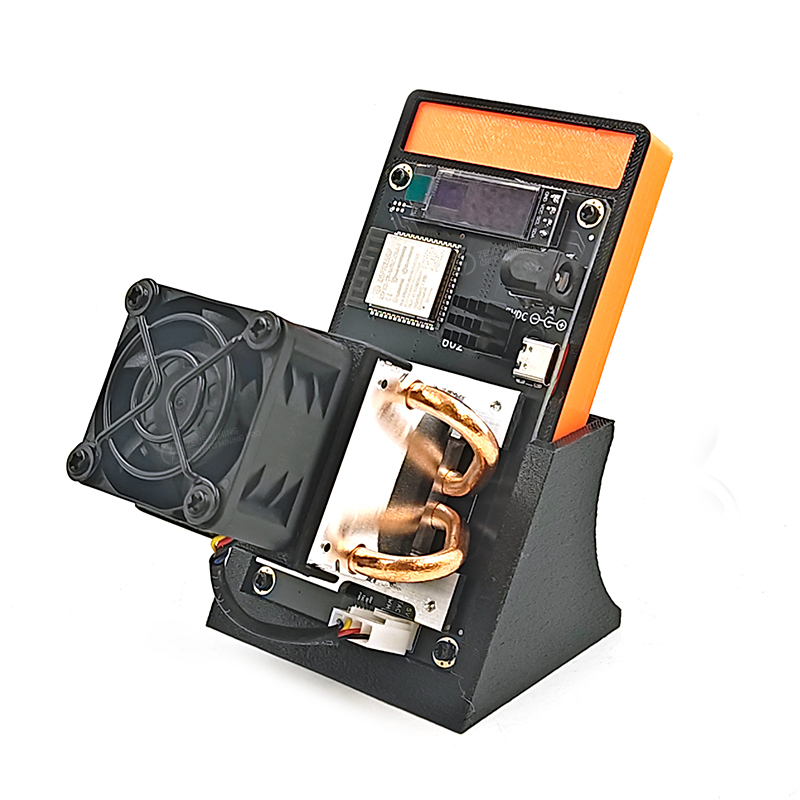

Bitaxe Gamma 601 1.5Th/s Open Source SOLO ASIC Miner

Product description

The Bitaxe Gamma 601 1.5Th/s is a high-performance, open-source SHA-256 ASIC miner designed for home use and decentralized networks. It emphasizes three core features: low power consumption, high stability, and ease of operation. The Bitaxe Gamma 601 boasts a standard hashrate of 1.5TH/s ± 5%, coupled with ultra-low power consumption of only 25W ± 10%, achieving an industry-leading energy efficiency ratio of approximately 16.6J/TH. It can meet the operating requirements of a standard household power supply without additional power burden. Equipped with a customized active cooling system that integrates a PWM-controlled, intelligent-speed fan and a heat pipe cooling module, and featuring an independent power chip heatsink, it ensures stable 24/7 operation with noise levels below 40dB, making it suitable for quiet indoor environments such as homes and offices.

Bitaxe Gamma 601 1.5T miner core highlights:

1. Ultra high energy efficiency: Equipped with an original BM1370 ASIC chip, boasting a hash rate of 1.5TH/s ±5% and power consumption of only 25W ±10%, achieving an energy efficiency ratio as low as 16.6 J/TH. This is industry-leading for desktop mining rigs, easily meeting household power requirements without additional power burden.

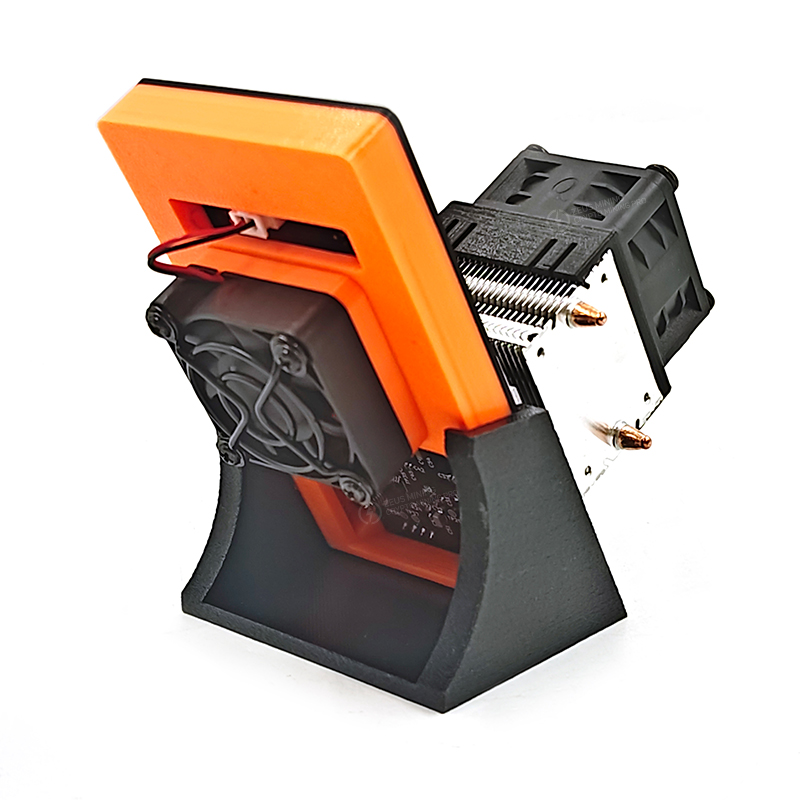

2. Intelligent cooling system: Featuring a PWM intelligent speed-controlled fan and heat pipe cooling, with a separate heatsink design for the independent power chip, specifically designed to reduce the temperature of the power management chip (PMIC), significantly improving long-term mining stability. Operating noise is <40dB, ensuring quiet operation in offices and homes.

3. Multi mode mining support: Compatible with SOLO mining and PPS/PPLNS pool mining, allowing flexible switching according to needs. SOLO mode pursues high-yield potential, while PPS/PPLNS mode ensures stable, small-amount returns.

4. Convenient wireless connectivity: Based on the ESP32 2.4GHz WiFi architecture, it eliminates the need for network cables, allowing for quick network configuration via mobile phone/computer, suitable for home network environments.

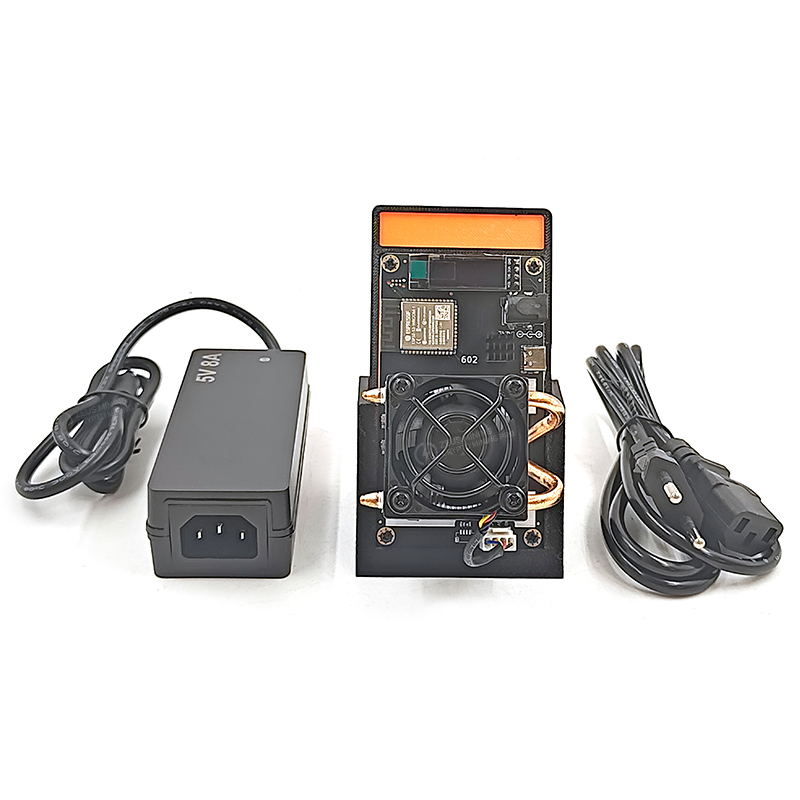

5. Safe and stable design: Supports automatic restart after power failure; configuration is saved and mining can resume upon power restoration. A strict 5V DC input design, coupled with a dedicated 30W switching power supply, ensures long-term hardware lifespan.

Bitaxe Gamma 601 1.5T ASIC SOLO miner specifications:

Model: Bitaxe Gamma 601 1.5T

Algorithm: SHA-256

Hash rate: 1.5TH/s ± 5%

Power consumption: 25W ± 10%

Power efficiency: Approx. 16.6 J/h

Input voltage: DC 5V

Cooling: active air (PWM Fan + Heat Pipe)

Network: WiFi 2.4GHz

Noise level: < 40dB (Typical)

Operating temperature: 0°C – 35°C

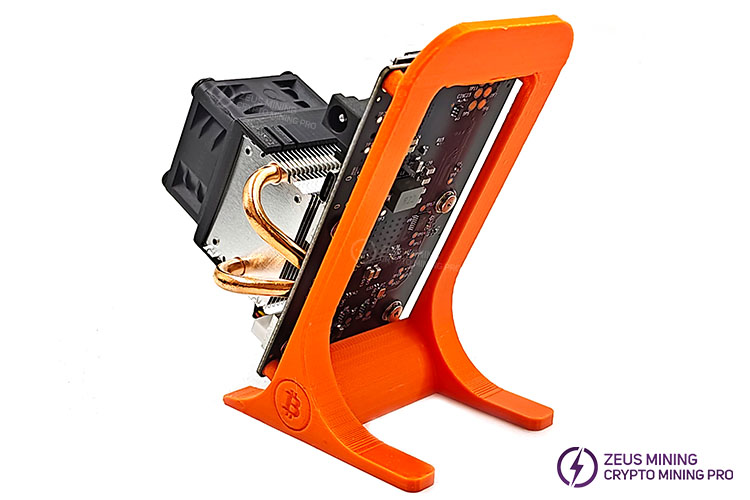

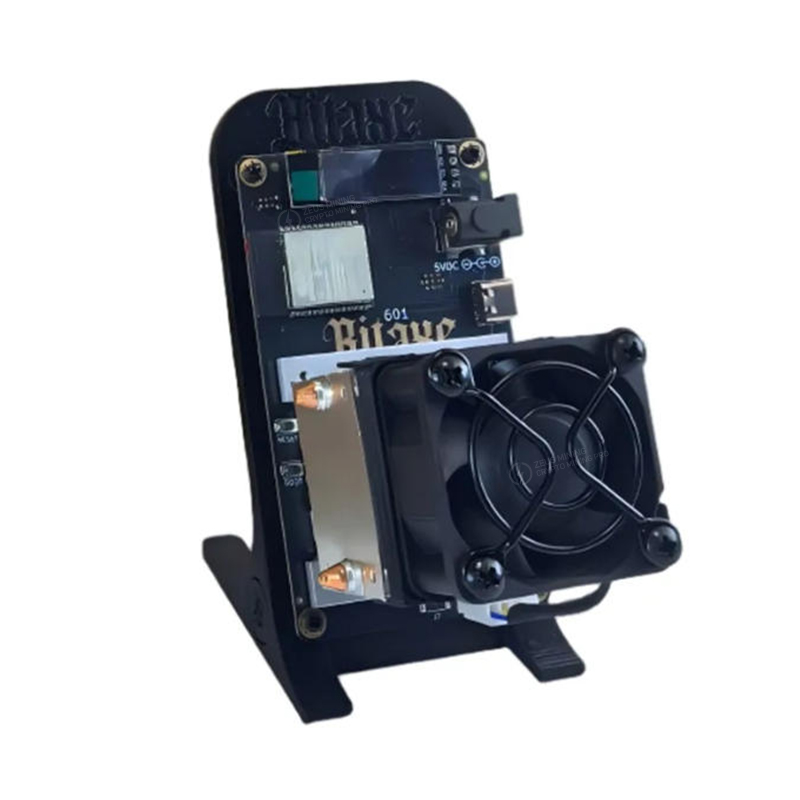

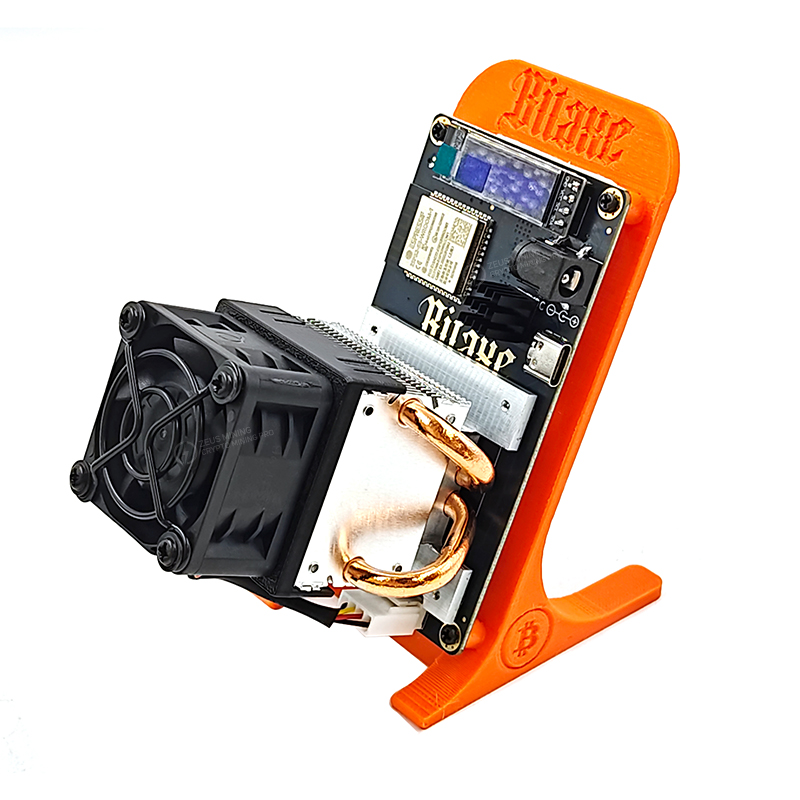

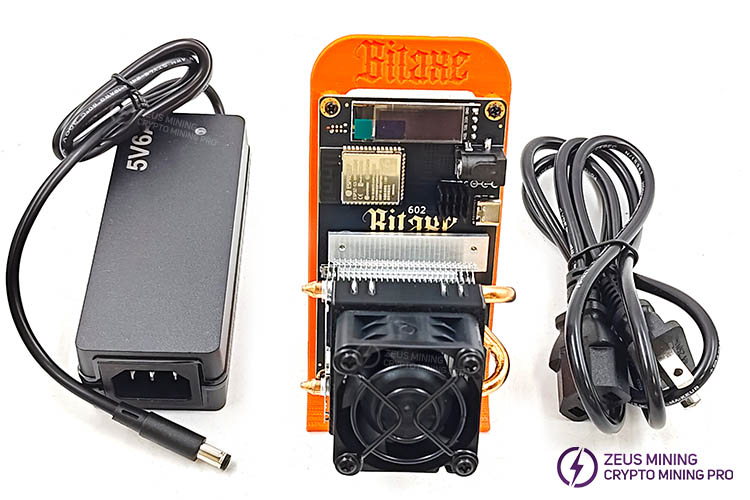

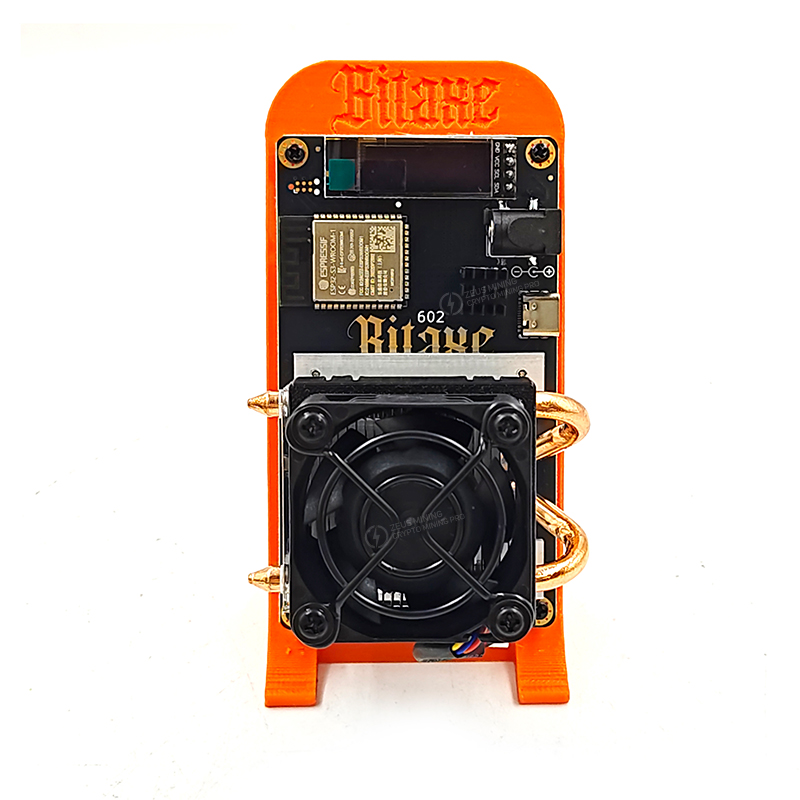

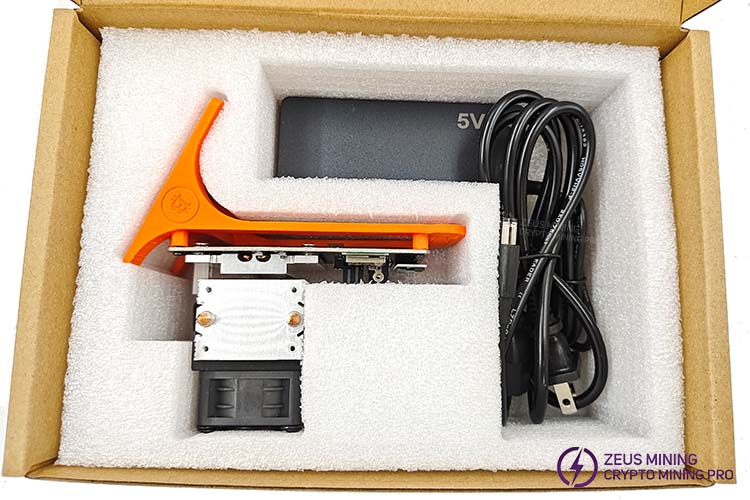

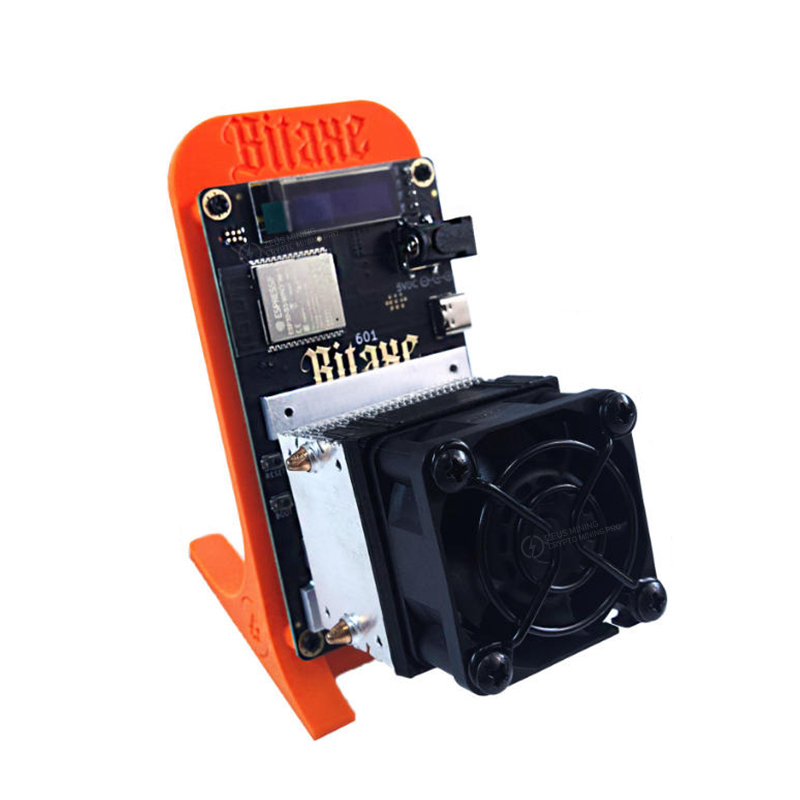

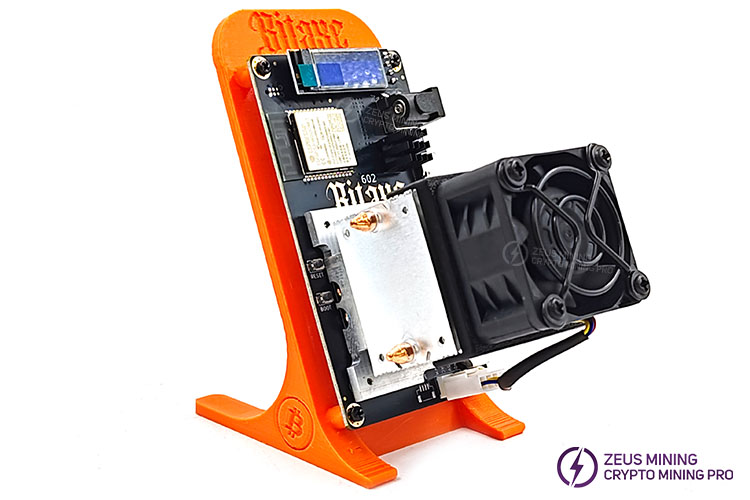

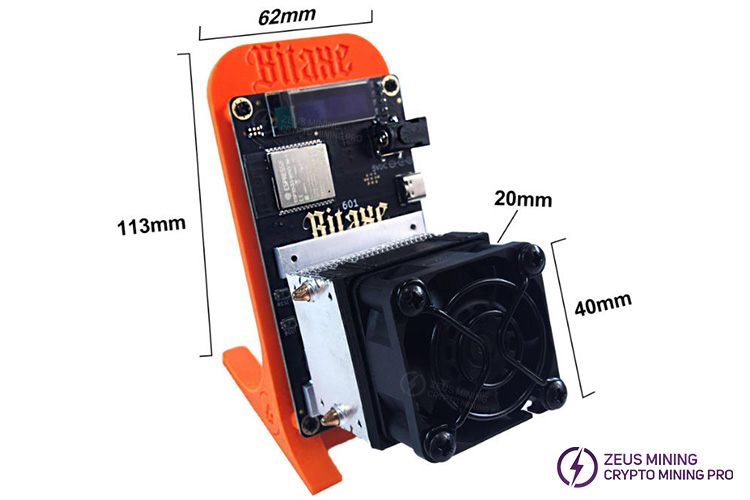

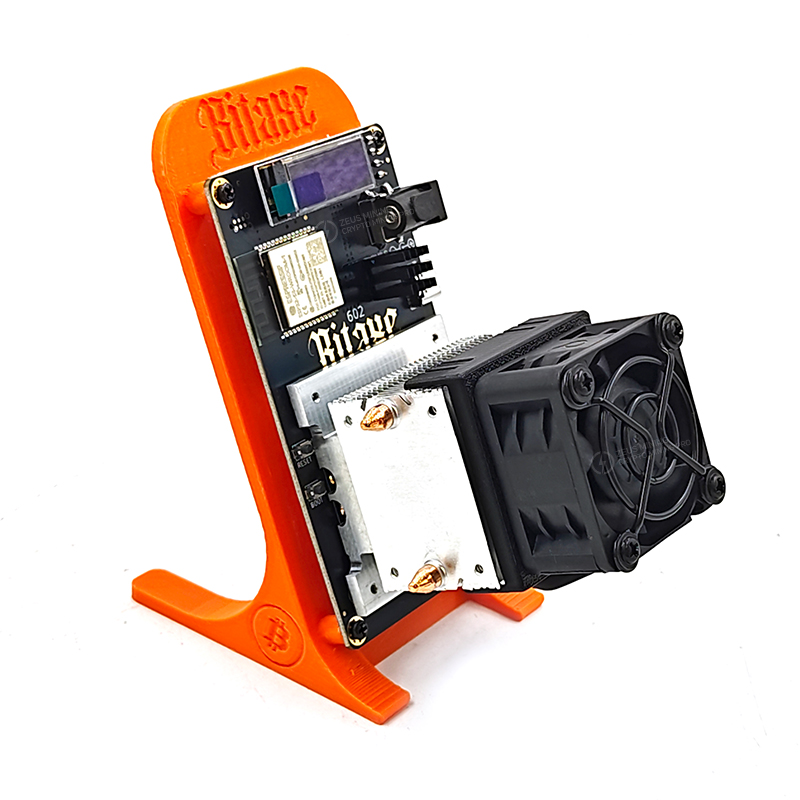

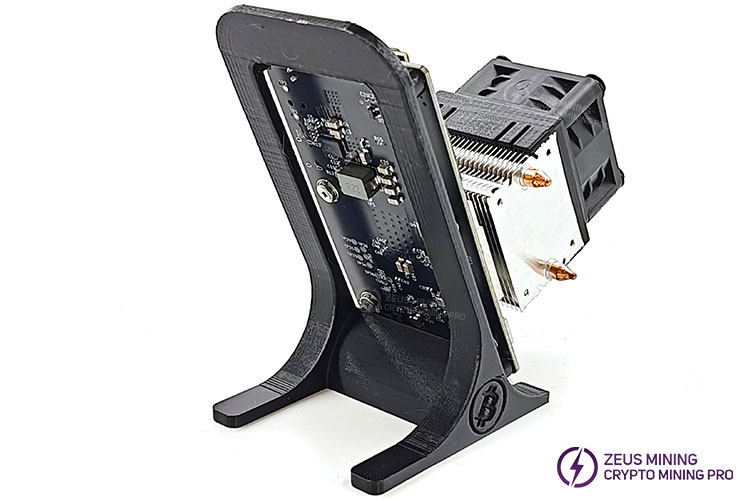

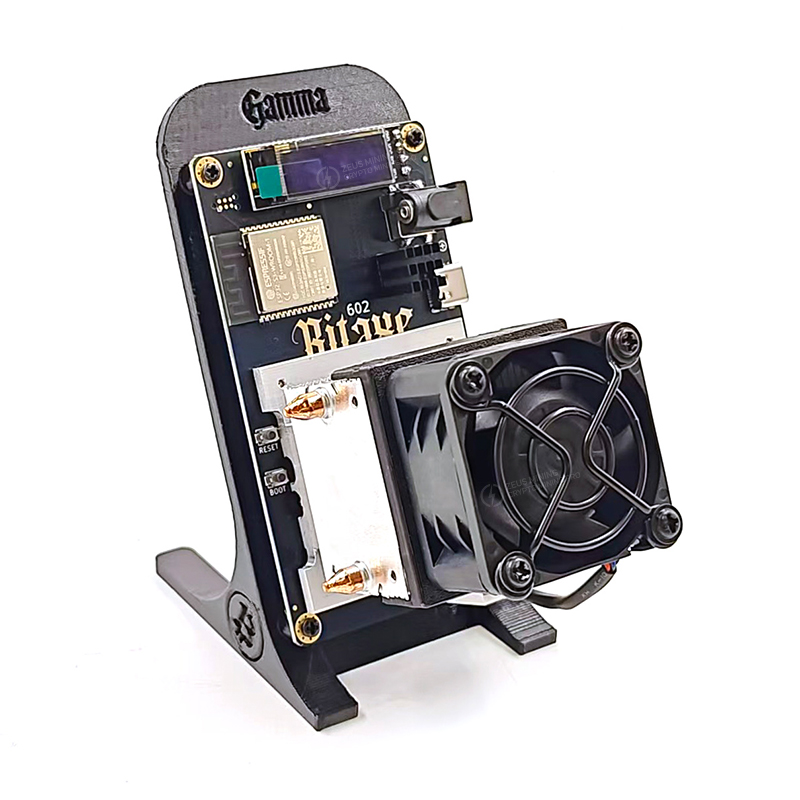

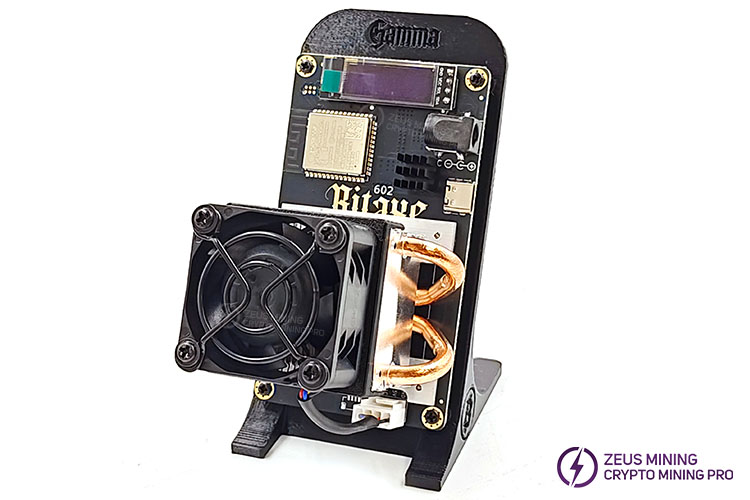

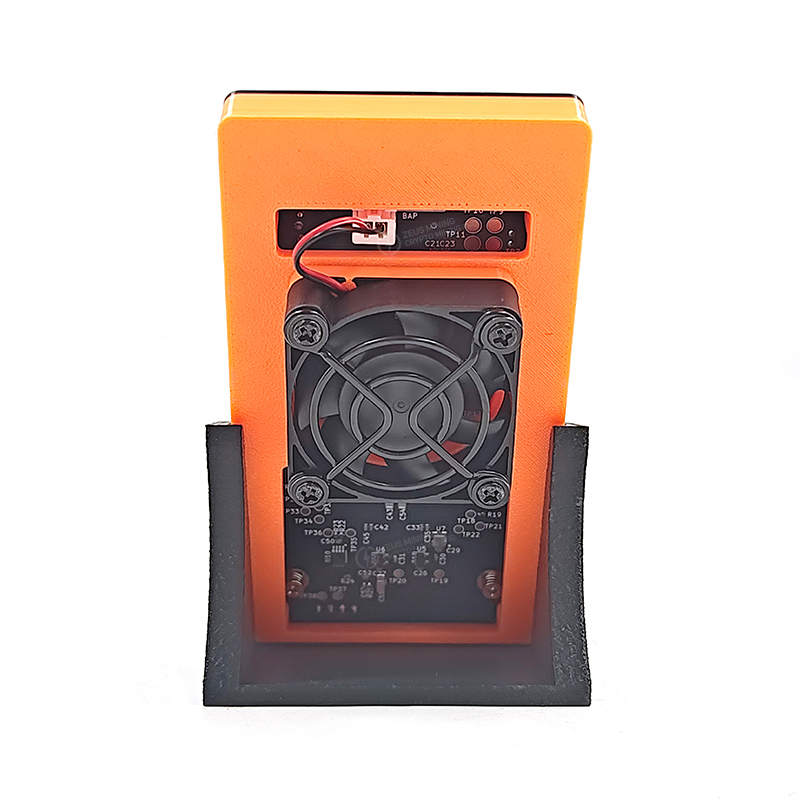

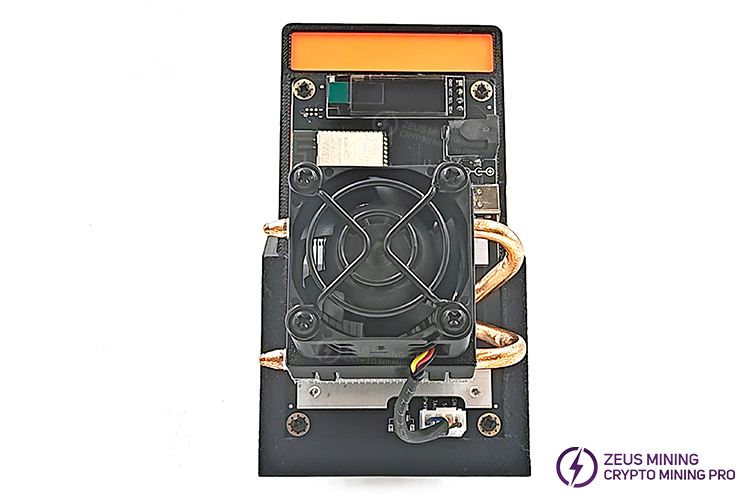

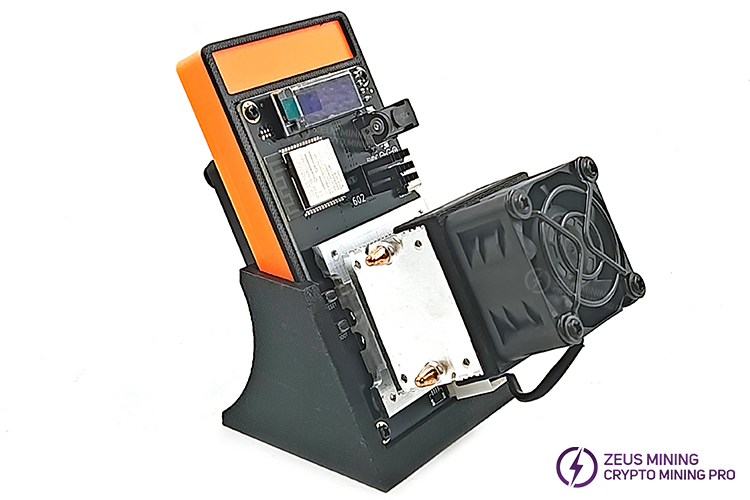

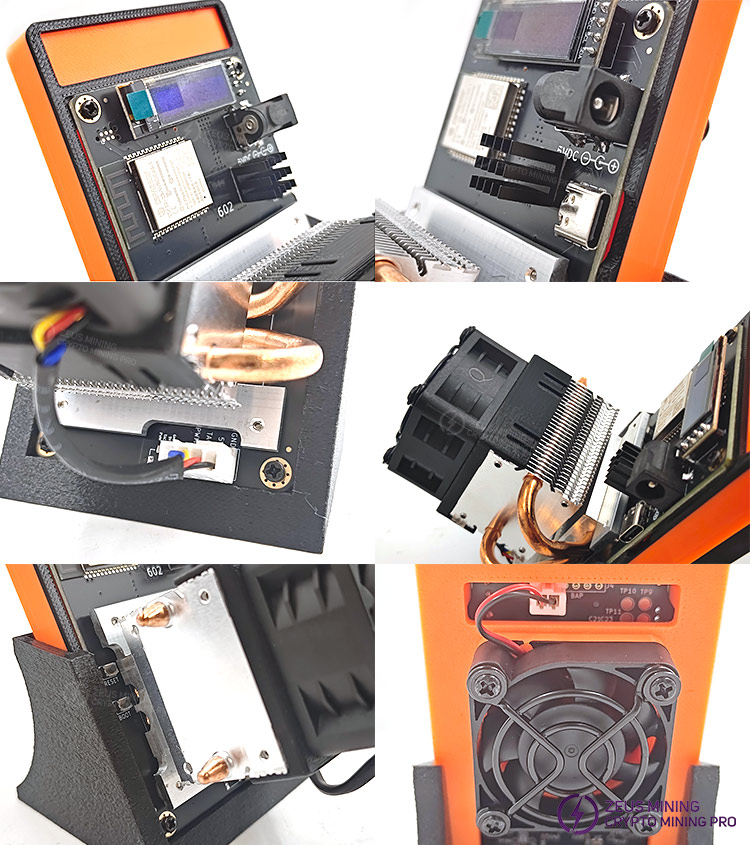

Product display

Frequently Asked Questions (FAQ):

1. The fan is very noisy after powering on. Is this a device malfunction?

A: No, it's not a malfunction. This is normal initialization behavior. The PWM fan runs at full speed during power-on to dissipate heat and complete self-tests. Once the machine starts, it will automatically reduce speed based on chip temperature, resulting in noise levels <40dB.

2. My hashrate fluctuates between 1.4T and 1.6T. How can I resolve this?

A: No solution is needed. This is normal. The device specifications allow for ±5% hashrate fluctuation and ±10% power consumption fluctuation. These fluctuations are related to chip temperature, hardware quality, and mining pool response speed, and do not affect normal mining.

3. I cannot connect to WiFi. How can I troubleshoot this?

A: First, confirm that the router has enabled the 2.4GHz WiFi signal. The device does not support 5GHz. Then, check the distance between the miner and the router. Too much distance can cause signal interference. It is recommended to shorten the distance or remove obstacles.
