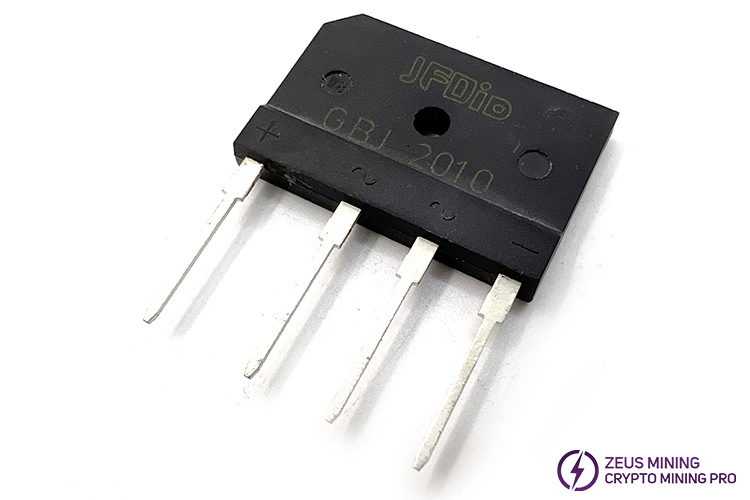

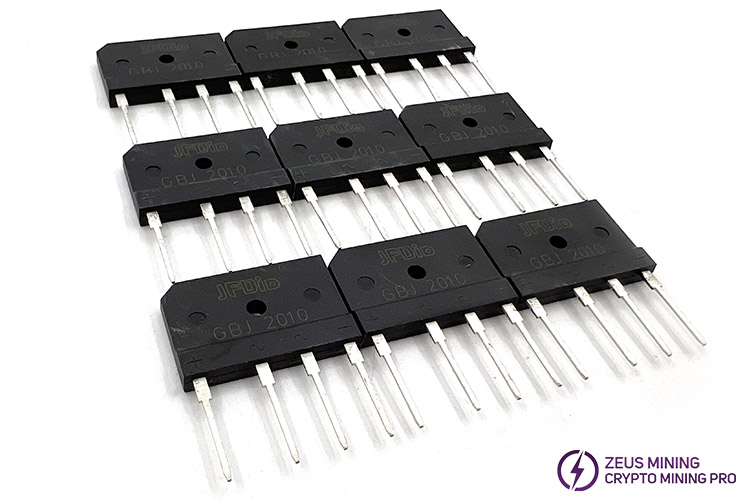

GBJ2010 GBJ2008 1000V / 800V 20A glass passivated bridge rectifiers are used to repair components of Antminer APW3, APW7, and Whatsminer P21 power supply failures, restore ASIC miner PSU performance, and provide stable guarantees for miner operation.
GBJ2010 GBJ2008 bridge rectifier feature:
Glass passivation mold structure
High case dielectric strength of 1500VRMS
Low reverse leakage current
Surge overload rating up to 240A peak
Ideal for printed circuit board applications
GBJ2010 GBJ2008 bridge rectifier parameters:
Characteristic | GBJ2008 | GBJ2010 |
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage | 800V | 1000V |
RMS Reverse Voltage | 560V | 700V |
Average Forward Rectified Output Current @ TC = 100°C | 20A | |
Non-Repetitive Peak Forward Surge Current, 8.3 ms single half-sine-wave superimposed on rated load (JEDEC method) | 240A | |
Forward Voltage (per element) @ IF = 7.5A DC | 1.05V | |
Peak Reverse Current @ TC = 25°C at Rated DC Blocking Voltage @ TC = 125°C | 10µA 500µA | |
I2t Rating for Fusing (t < 8.3ms) | 240A2s | |
Typical Junction Capacitance per Element | 60pF | |
Typical Thermal Resistance, Junction to Case | 0.8℃/W | |
Operating and Storage Temperature Range | -55℃ to +150℃ | |
