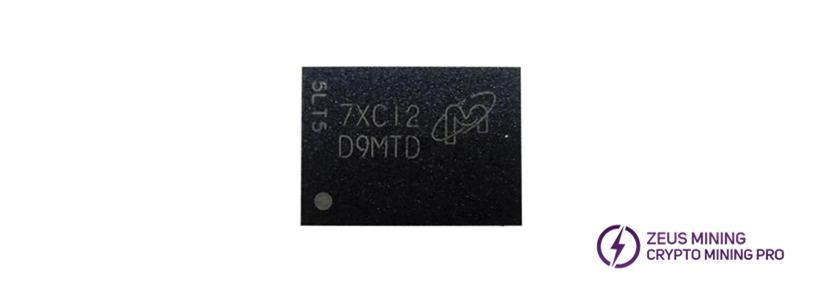

DRAM Chip DDR2 SDRAM 2G-Bit 128Mx16 1.8V 84-Pin FBGA T/R
EU RoHS: compliance
Part status: positive
DRAM type: DDR2 memory
Chip density (bit): 2G
Number of internal banks: 8
Number of words per group: 16M
Number of digits/word (bits): 16
Data bus width (bits): 16
Maximum clock frequency (MHz): 800
Maximum access time (ns): 0.4
Process technology: CMOS
Interface type: SSTL_18
Minimum operating power supply voltage (V): 1.7
Typical working power supply voltage (V): 1.8
Maximum operating power supply voltage (V): 1.9
Working current (mA): 190
Minimum working temperature (°C): -40
Maximum working temperature (°C): 85
Number of I/O lines (bits): 16
Standard package name: BGA
Number of pins: 84
Installation: surface mount
