Antminer (19 series) Interface Tutorial

This instruction is applicable to the Antminer S19 series models:

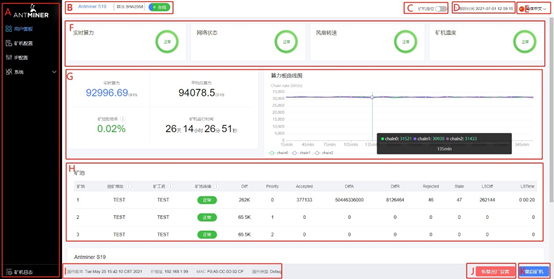

1. User Panel

A. Menu navigation bar

B. Model, algorithm, status information

C. Miner positioning button (after turning on, the miner's traffic lights will flash at the same time)

D. Current time

E. Language selection

F. Overall miner status bar

G. Hash rate status bar

H. Mining pool status bar

I. Firmware and network information

J. Restore factory settings button

K. Restart button

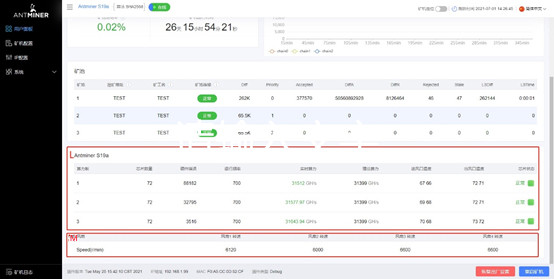

L. Hash board status bar

M. Fan status bar

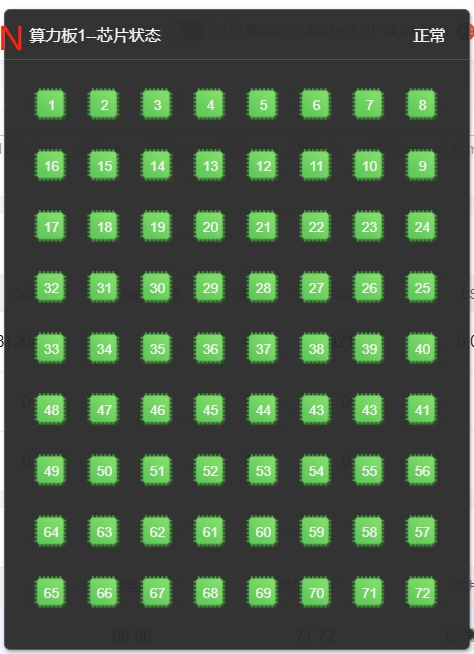

N. Single hash board chip status (mouse moves to the chip status under the hash board status bar to display, green support, red exception)

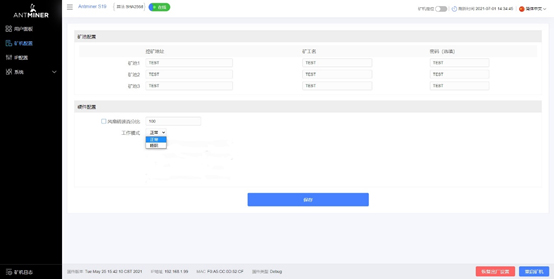

2. Miner configuration

You can set mining pools and miners here; adjust the percentage of fan speed; miner working mode: work/sleep.

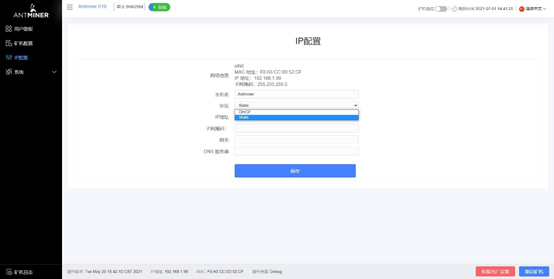

3. IP configuration

Dynamic/static IP can be set here.

4. System

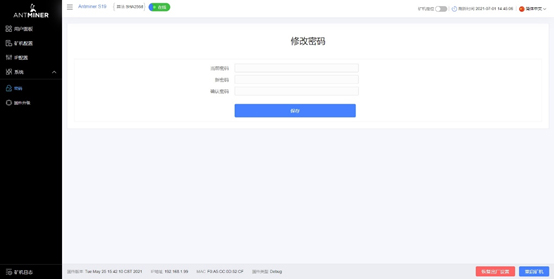

1) Password can be changed here.

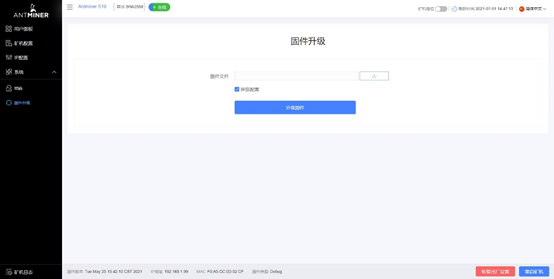

2) The firmware can be upgraded here.

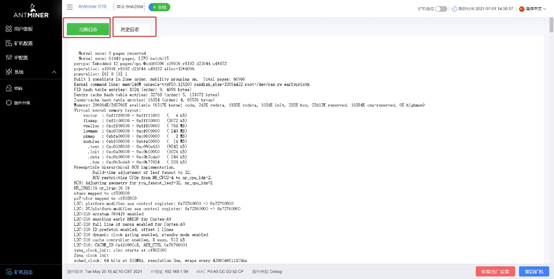

5. Miner log

You can view current or historical logs here.
