Avalon Miner's complete set of required accessories and connection methods

1. The list of accessories for miners is as follows. Table 1 is a list of accessories for 1 Avalon miner; Table 2 is a list of accessories for 10 Avalon miners; If there are more than 10 miners, based on the list of 10 accessories, calculate in turn:

                                   A full set of accessories list for 1 miner

Required accessories

5pin date cable

AUC3

Raspberry Pi Kit

Miner PSU

Network cable

Raspberry Pi + Protective Case

Memory card

Micor USB cable

Raspberry Pi charger

Quantity

1

1

1

1

2

1

1

1


                                   A full set of accessories list for 1 miner

Required accessories

5pin date cable

AUC3

Raspberry Pi Kit

Miner PSU

Network cable

Raspberry Pi + Protective Case

Memory card

Micor USB cable

Raspberry Pi charger

Quantity

10

2

1

1

3

1

10

1

Note for accessories:

1 miner includes 1 5pin data cable, this is the default standard configuration;

Regarding the Raspberry Pi and power supply, customers who need it can purchase it on the official website of ZEUS MINING or contact sales to purchase. However, the card reader and network cable must be prepared by yourself.

Accessories description:

1) The 5pin data line is a miner connection line. The 5pin data line is initially used to connect AUC3 and miner, and it can be used to connect the miner to the miner;

2) AUC3 is a data converter, which plays the role of data transmission. One AUC3 can carry up to 5 miners;

3) The Raspberry Pi is the controller. You can view the details of the miner operation through the Raspberry Pi backstage. A Raspberry Pi 3rd generation has 4 USB ports and can be connected to a maximum of 4 AUC3s, which can bring up to 20 miners. It is recommended to bring 10 miners to run stably;

The above accessories are universal for connection of A7 series, A8 series and A9 series;

Regarding the Raspberry Pi: different models of miners cannot be used under the same Raspberry Pi. You can update the Raspberry Pi memory card to the Raspberry Pi firmware of the corresponding miner model.

4) Miner PSU requirements:

a. A841 power supply is recommended to use a high-quality server power supply with an output capacity of more than 1500W and a conversion rate of more than 90%, with 8 6pin ports;

b. A851 power supply is recommended to use high-quality server power supply with an output capacity of more than 1800W and a conversion rate of more than 93%, with 8 6pin ports;

c. A921 power supply is recommended to use high-quality server power supply with output capacity above 2200W and 93% conversion rate, with 10 6pin ports.

2. Connection diagram reference:

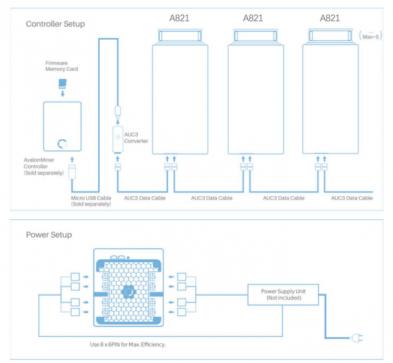

Avalon 821 connection diagram reference

The picture is a reference for the connection diagram of the A821 model. The connection methods of other Avalon miners are similar to this.


The content and pictures of this article are from the Internet, compiled and edited by ZEUS MINING.
