Avalon miner Backstage Log Description

Log Page:

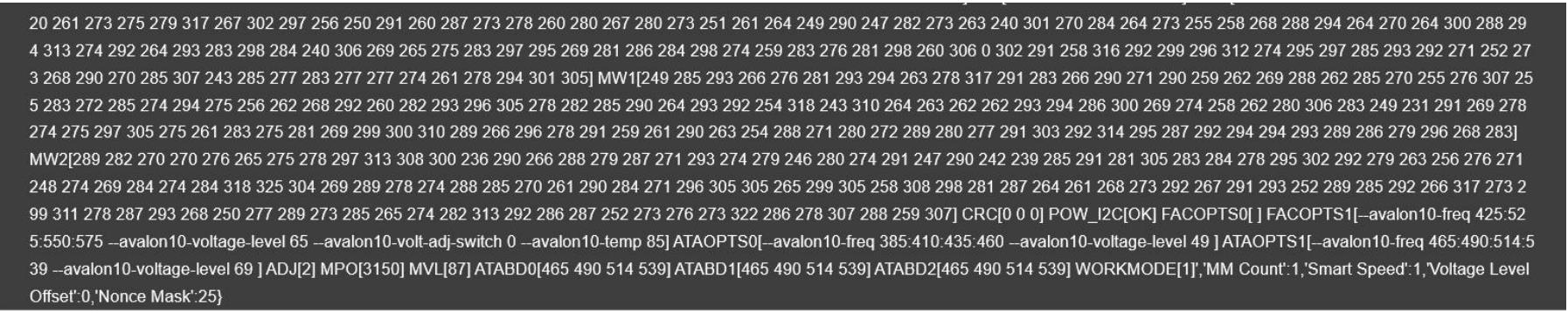

log interface

log page

Field

Name

Remark

When

MM board elapsed time


Elapsed

Total running time of miner after starting (unit: seconds)

Hash Board total elapsed time

Ver

Miner firmware version number

T is not committed, only for internal test

DNA

Miner is the only ID in the world


MEMFREE

Remaining memory


NETFAIL

The time to disconnect from the pool and the time to resume the connection after the pool is successfully connected (network blocking).

The odd number (items 1, 3, 5, and 7) is the time to disconnect from the pool, and the even number (items 2, 4, 6, and 8) is the time to resume the connection with the ore pool. The time is in seconds, and the starting time of the miner is 0 seconds.

SYSTEM STATU

The current status of the system, including the working status and the number of hash boards in operation.


BOOTBY

BOOTBY

0:AM_BOOTBY_CLEAR

1: AM_BOOTBY_POWRON

2: AM_BOOTBY_OVERHEAT

3: AM_BOOTBY_NETFAIL

4: AM_BOOTBY_WEB

5: AM_BOOTBY_API

6: AM_BOOTBY_OPTIONS

7: AM_BOOTBY_POLLING

8: M_BOOTBY_POOL_INACTIVE

9: AM_BOOTBY_LOW_MEM

10: AM_BOOTBY_UNKNOWN

LW

Local work, mm board send work number to chip

In the ideal state, LW/time/number of chips = 2 (two jobs in one second), generally < 3, and if it is greater than 3, the hash rate will not be enough.

MH

How many calculation faults of each hash board

Normal smaller than 2/10000

HW

Hardware Error


DH

Average Calculation error ratio. normal 0 6-1 6%.


Temp

Ambient temperature


TMax

Maximum chip temperature


TAvg

Average chip temperature


Fan1

FAN 1 Rotate speed


Fan2

FAN 2 Rotate speed


FanR

FAN rotating speed ratio


Vo

Average chip voltage

Power supply output voltage/serial number

PS

PS status

The meanings of items 1-6 are as follows:

Item 1: error code. Other values indicate power failure or output short circuit.

Item 2: supply voltage to the control board. The normal value is 12xx.

Item 3: the voltage supplied to the hash board is generally between 1200 and 1400 (unit: 10mV).

Item 4: the current output by the power supply to the hash board is related to the output power and voltage.

Item 5: output power of the power supply to the hash board.

Item 6: the expected output voltage of the power supply to the hash board, configured by the control board. If the six parameters in the PS field of power supply are all 0, the control board cannot communicate with the power supply.

PLL

A core number of each frequency


PLLCNT

On which frequency is the core of each chip distributed


GHSspd

New theoretic hash rate


GHSmm

Logical hashrate, unit GH/s.

Note: the actual hashrate is the theoretical hash rate minus DH (hash error rate).

GHSavg

1-hour average hashrate

According to the  1-hour average hashrate calculated by the submitted work, this value is the closest to the 24-hour average hashrate at the pool end.

WU

Submit effective work every minute


Freq

Actual Frequency (average Frequency)

The chip works at different frequencies, and the equivalent frequency is the comprehensive equivalent frequency of the whole miner Frep×core number=Theoretic hash rate.

Led

White LED Status

When finding a specific miner in many miners, use API  to light up the miner's white LED. Here is the status of  whether the white  LED light is on, 0 means not on, 1 means on, 2 means aging completed.

MGHS

Hash rate of each hash board, unit GH/s

Value addition=GHSavg

MTmax

Maximum chip temperature in a single power board


MTavg

Average chip temperature  of a single power board


TA

ASIC total chip number


PING

How long did it take from submission to receiving

Unit ms

ECHU

Error code

ECHU display 0 or 512 indicates normal; if display 513 indicates abnormal, overheating will display 128.

ECMM

MM board status mark

When ECMM [0], it means that the MM board is in a normal state. ECMM [1] means that the MM board may have problems or poor contact with the hash board. The specific problem of the hash board can be judged by the value returned below. When Echu displays 0 or 512, it means normal. If Echu displays 513, it means abnormal.

SF0

The frequency configuration status of hash board 0.

For example, SF0 [500 525 550 575] indicates that frequency point 1 is 500MHz  and frequency point 4 is 575mhz.

SF1

Hash board 1 frequency point configuration status.


PVT T0

_

Temperature list of all chips of hash board 0.


PVT T1

_

Temperature list of all chips of hashboard 1.


PVT V0

_

Voltage list of all chips of hash board 0.


PVT V1

_

Voltage list of all chips of hash board 1.


MW

The chip calculates the total nonce value.


MW0

Nonce value calculated by each chip.


CRC

Number of communication errors

It's normal if it doesn't rise with time, but it's also a problem if the value is large.

SoftOFF

Soft off flag

Normal is SoftOFF[0], SoftOFF[1] means soft turn off.

ATAOPTS0

Low power mode parameter


ATAOPTS1

High-performance parameter


ATABD

Frequency


WORKMODE

Mode parameter

WORKMODE[0] low power mode, WORKMODE[1] high-performance mode.

MPO

Object power consumption


MVL

Voltage upper limit


ADJ

Aging parameter

Adj [1] is displayed before aging. When adj [0] is displayed, aging is in progress. When adj [2] is displayed, aging is completed. When adj [1] is displayed after the restart, aging is in progress.

POWS

PSU status parameter

Pows[1] PSU bad, Pows[0] PSU good

HASHS

HASH board parameter

HASHS[1] hash board bad,HASHS[0] hash board good.

POOLS

Pool connection

POOLS [1]Pool network good POOLS [0]Pool network bad
