Docking relationship of Antminer 7007 control board and hash board and fan

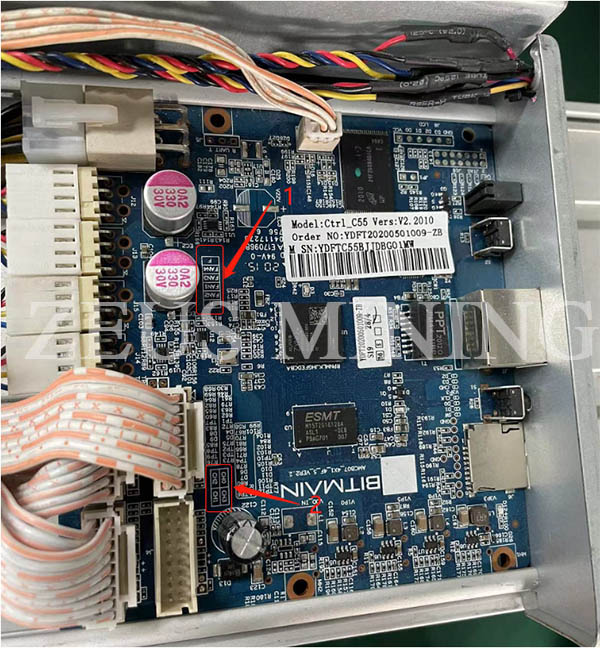

1. The control board's fan silkscreen and hash board silkscreen are shown in the figure below; marked position 1 is the fan silkscreen, and marked position 2 is the hash board silkscreen.

control board's fan silkscreen and hash board silkscreen

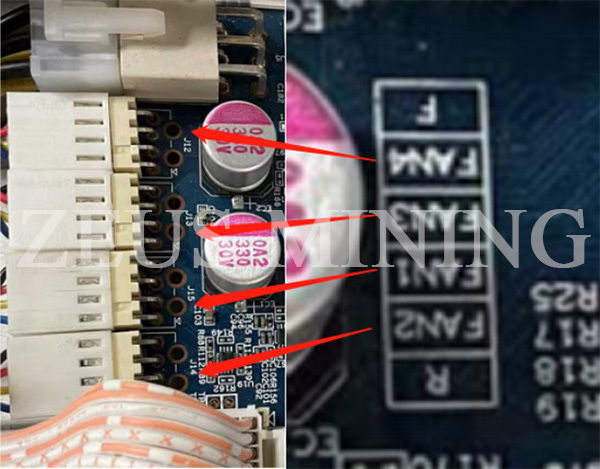

2. The connection between the fan silkscreen and the fan socket is as follows, the fan silk screen corresponds to the miner's log.

FAN1 base J15

FAN2 base J14

FAN3 base J13

FAN4 base J12

the fan silkscreen and the fan socket

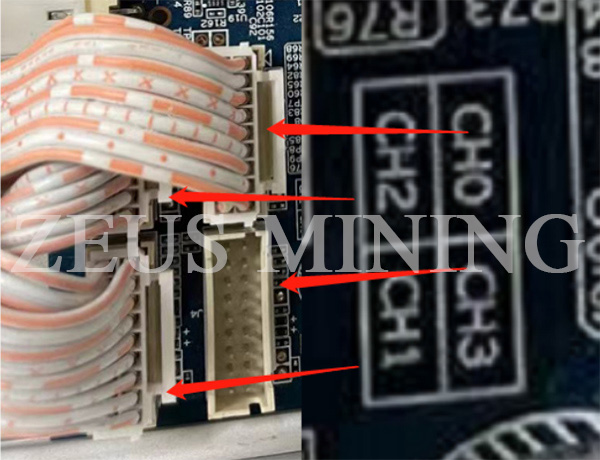

3. The corresponding relationship between the socket of the hash board and its silkscreen is as follows, the silkscreen of the hash board corresponds to the Miner log.

the socket of the hash board and its silkscreen

Click to see more about Antminer control board troubleshooting
