Comparison of different hash board versions of Antminer D3, L3+ and T9+

What is the difference between different versions of hash boards of the same model?

Antminer D3 hash board

The D3 miner hash board is larger, to enhance the stability of the miner. The following is the relevant information on the two versions of the D3 hash board, which is convenient for everyone to repair and replace.

Hashboard version

Size

D3 new version

Hashboard D3 (N), D3_HashBoard_60_V2.21

222.6 * 176.6 mm

D3 old version

Hashboard D3 (S), D3_HashBoard_60_V1.11

222.6 * 156.7 mm

D3 hash board size comparison

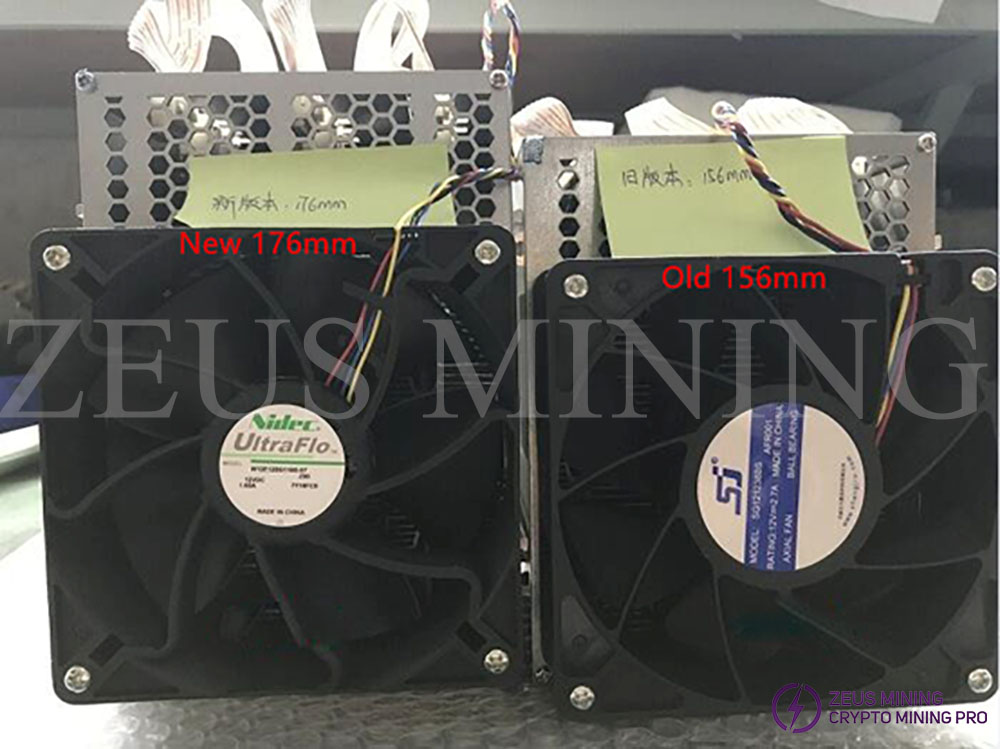

D3 size comparison

Antminer L3+ hash board

The new L3+ version has a different hash board and heat sink than the old version. Therefore, when choosing a hash board repair, make sure you choose the correct version.

Heat sink

Size

L3+ new version

16 * 17.5 * 19 mm

L3+ old version

16 * 17.5 * 22 mm

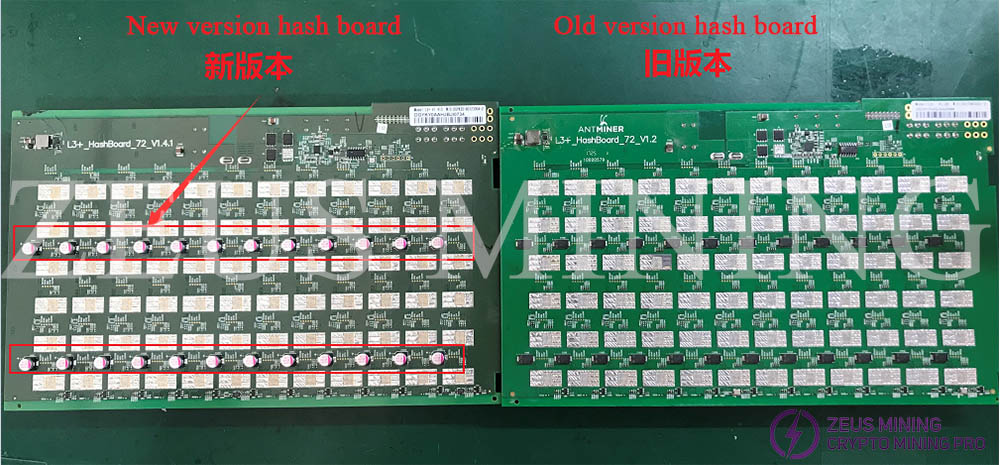

L3+ hash board comparison

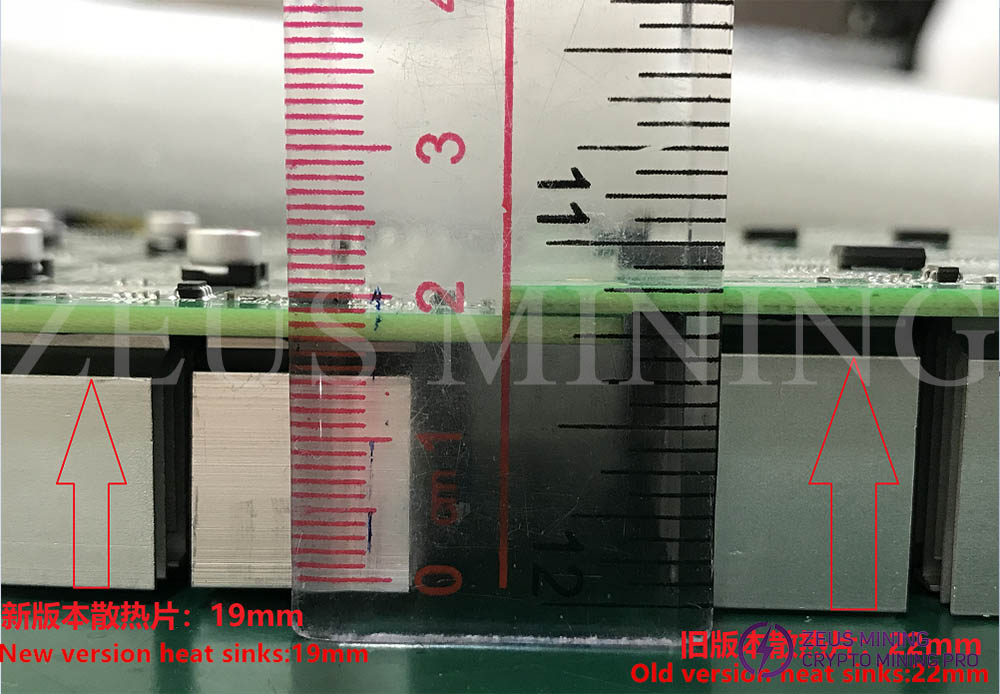

L3+ hash board heat sink comparison

Antminer T9+ hash board

Hash board version

Detail

T9+ new version

Hashboard T9+(N)

Add two rows of small capacitors to the front plate of the hash board.

T9+ old version

Hashboard T9+(S)

There are no small capacitors on the front plate of the hash board.

T9+ new version hash board.jpg

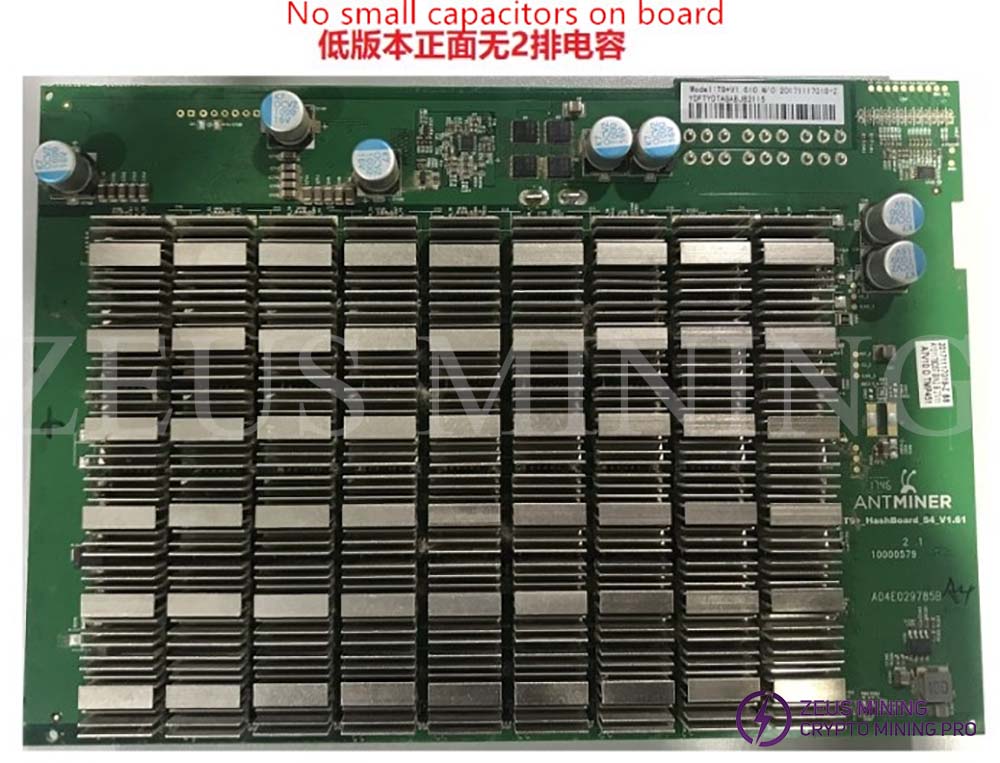

T9+ old version hash board.jpg
