Antminer S19 Pro card flashing control board firmware tutorial

I. Preparing tools

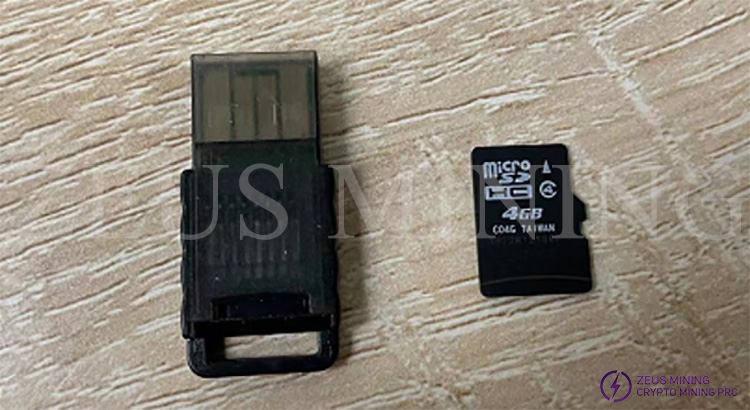

1. Hardware: computer (windows system), TF card reader, TF card.

TF card

2. Software: decompression tool (WINRAR is recommended), S19Pro card flashing firmware.

T19 card flashing firmware

3. Firmware download address: Bitmain's official website

II. Make TF card

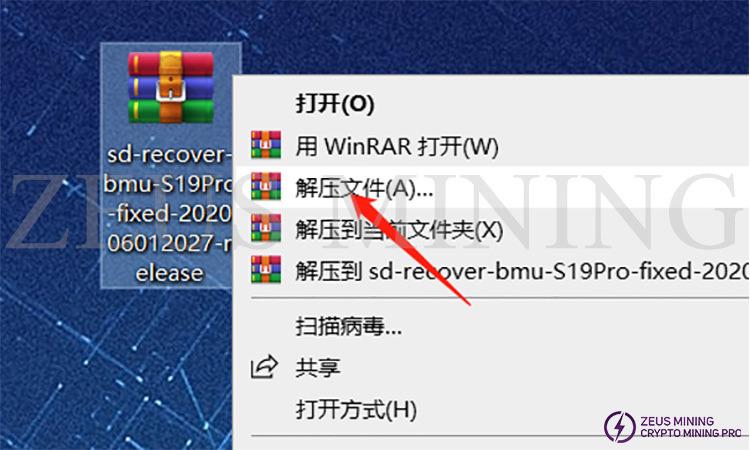

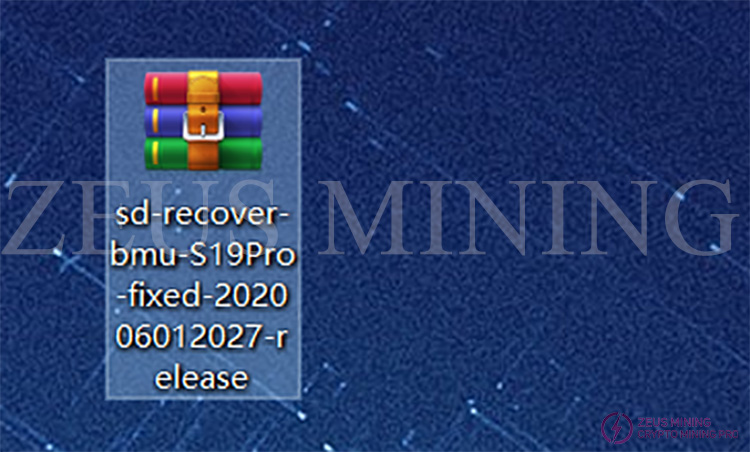

1. Unzip the downloaded firmware (right-click the firmware and select unzip the file).

unzip the firmware file

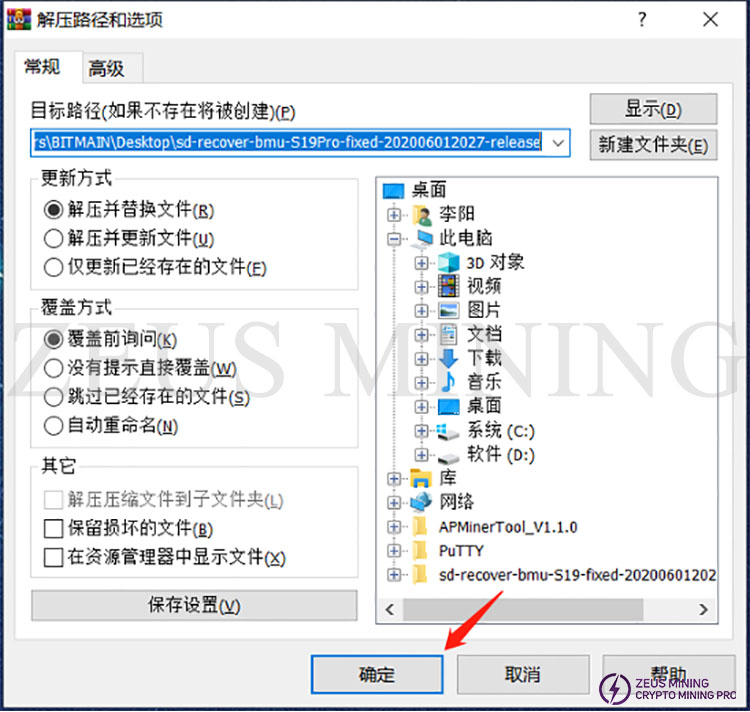

2. After selecting "Extract File," a new dialog box will pop up, just click OK.

decompression path selection

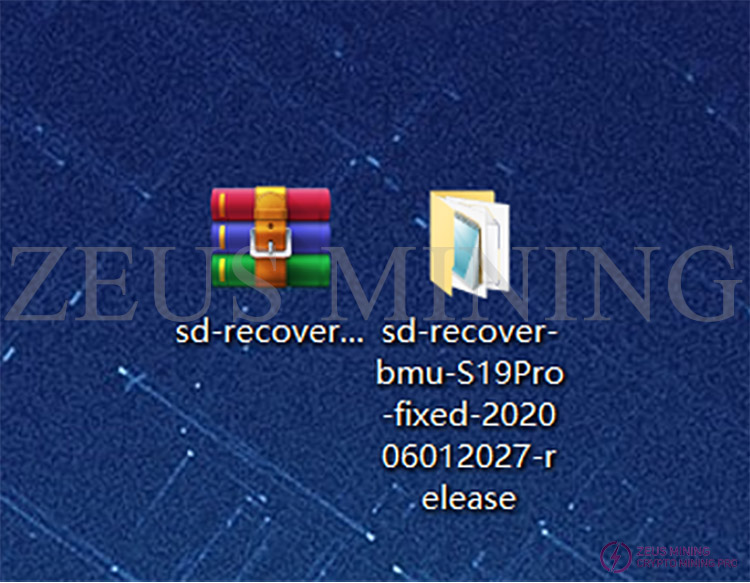

3. After decompression, a folder with the same name as the compressed package will appear. At this point, the decompression is complete, and the decompressed folder is ready for use.

unzipped folder

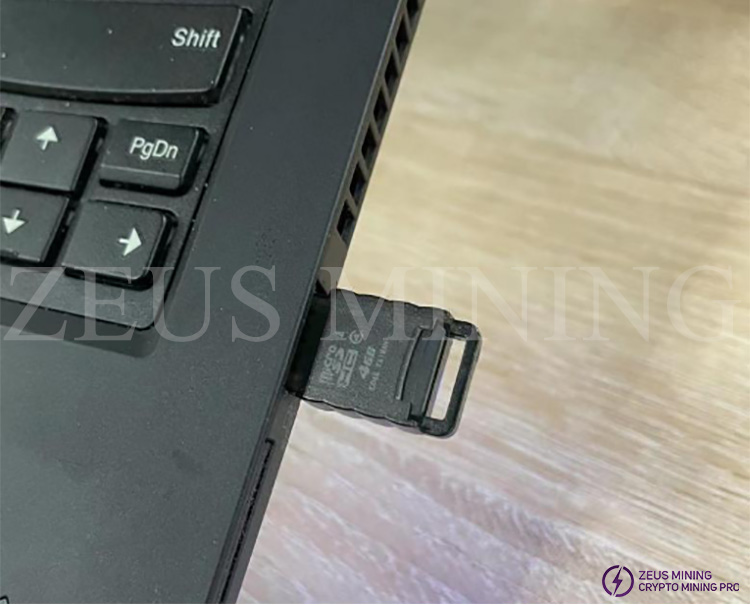

4. Insert the memory card into the card reader and the card reader into the computer's USB port.

insert the card reader

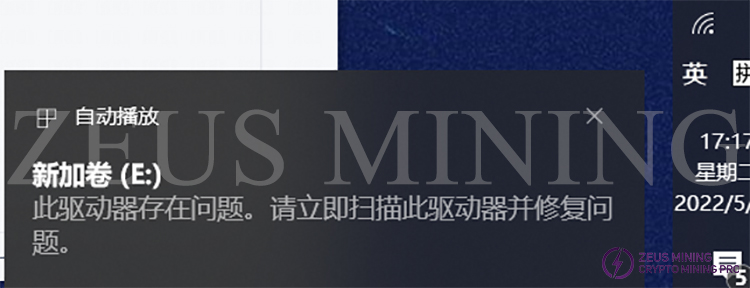

5. After the card reader is inserted into the computer's USB port, the computer will prompt the new device, display the disk letter corresponding to the TF card (the disk letter of this device is E), and record the disk letter.

TF card disk lette

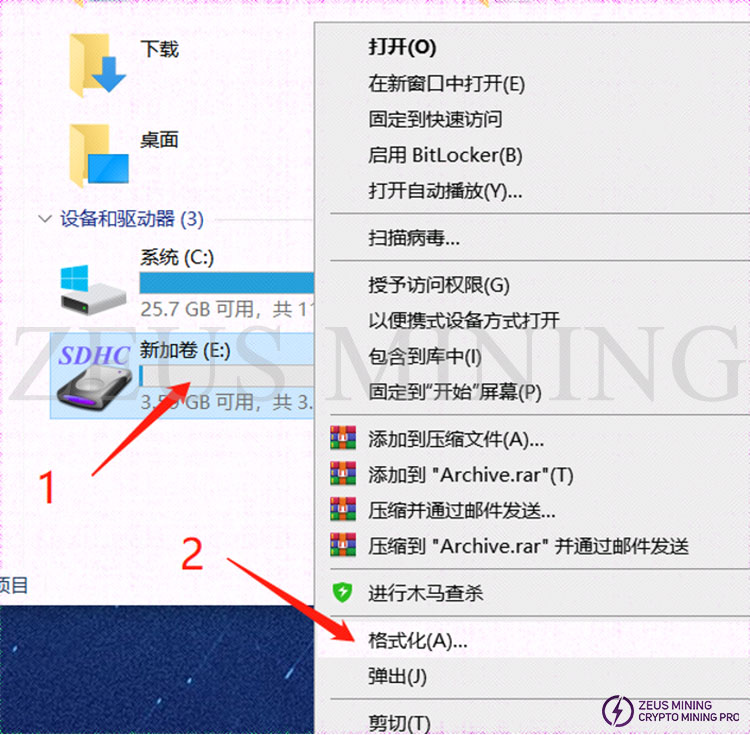

6. Format the inserted memory card into FAT32 format, find the disk corresponding to the TF card (the drive letter E just recorded, namely the E disk), then right-click the E disk, and in the pop-up dialog box, click Format.

 format the E disk

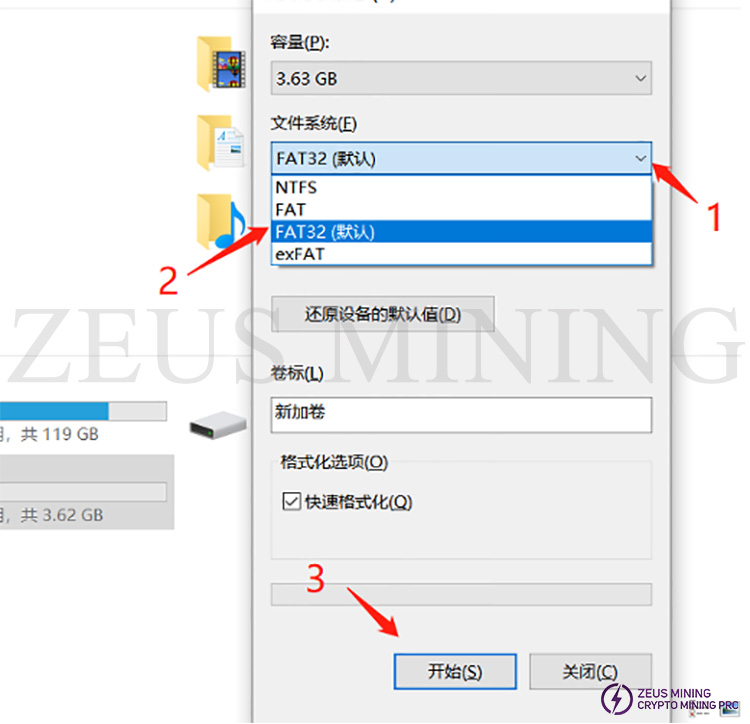

7. After clicking Format, a new dialog box will pop up (as shown in the figure below). In the new dialog box, click the drop-down menu behind the file system and select FAT32 (the default is FAT32). After selecting, click Start to prepare for formatting.

select FAT32 system file

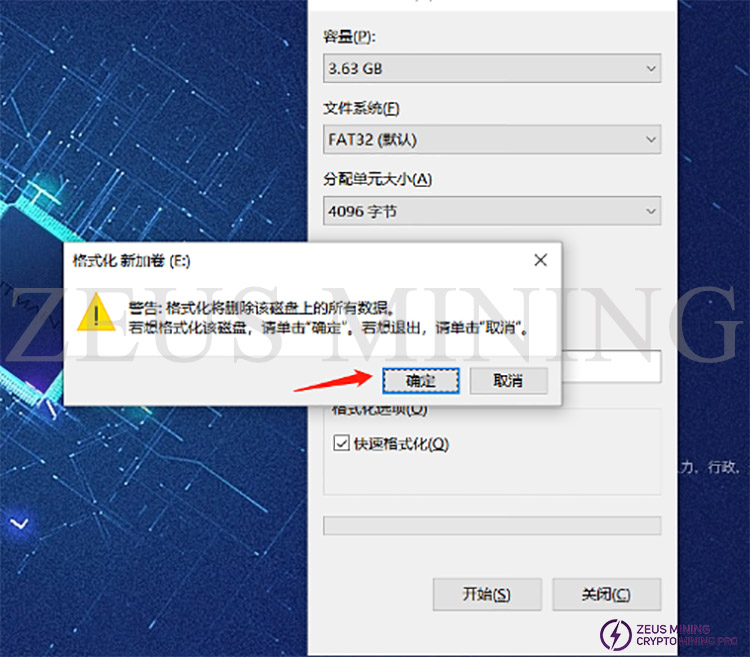

8. Before formatting starts, a dialog box will pop asking you to confirm to delete all data. After clicking Confirm, all data will be deleted. If there is important data, you need to back up the data first. If there is no important data, click Confirm.

confirm to format

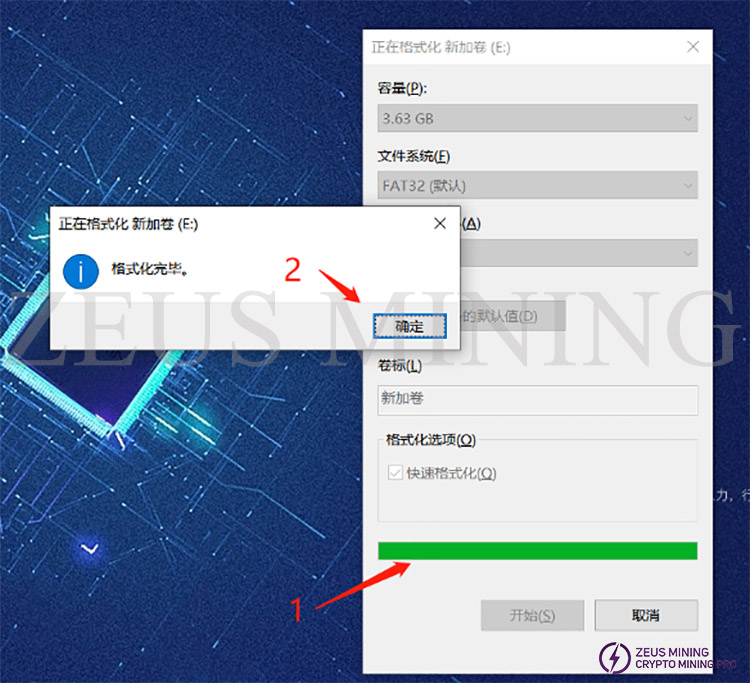

9. The formatting process is relatively simple. Generally, after clicking confirm, there will be no response for about 2 seconds. After a while (as shown in the figure below), the progress bar will end. In the end, a dialog box will pop up indicating that the formatting is complete, just click OK.

format progress bar

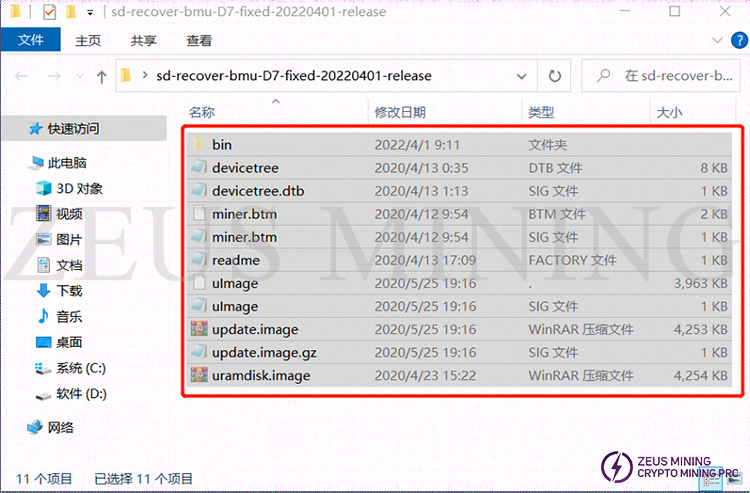

10. After the formatting is completed, the preparations for the TF card have been completed. Then, you can open the decompressed folder and copy all the files in the folder (the files in the decompressed folder are as follows).

decompressed file

11. Copy all the files in the folder to the root directory of the TF card.

copy the files

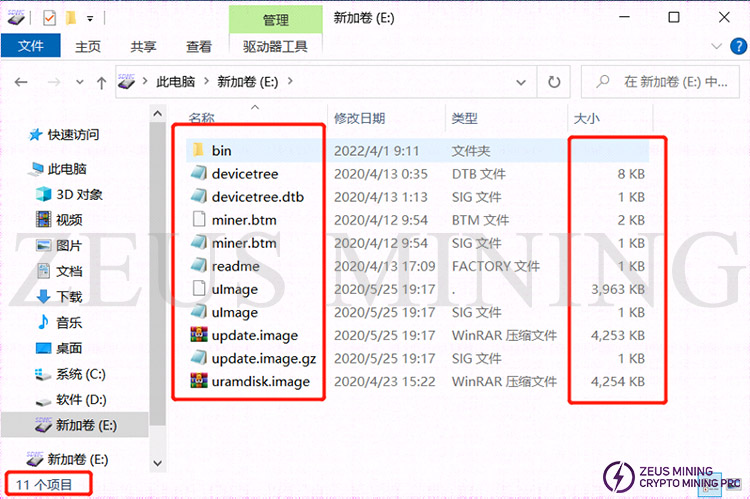

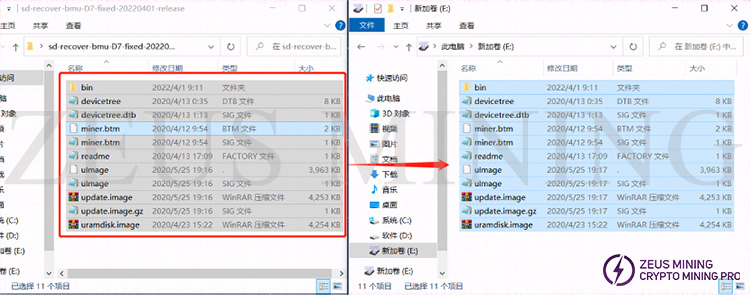

12. After copying, confirm whether the content of the TF card is as follows, mainly confirming the file name, file size, and the number of files.

confirm to copy files

13. If the confirmation is correct, the TF card is completed. You can unplug the TF card from the computer for use now.

III. Brush

1. Power off the miner (or separate control board), and insert the TF card that has been made.

power off the control board

2. Power on the miner (control board).

power on the control board

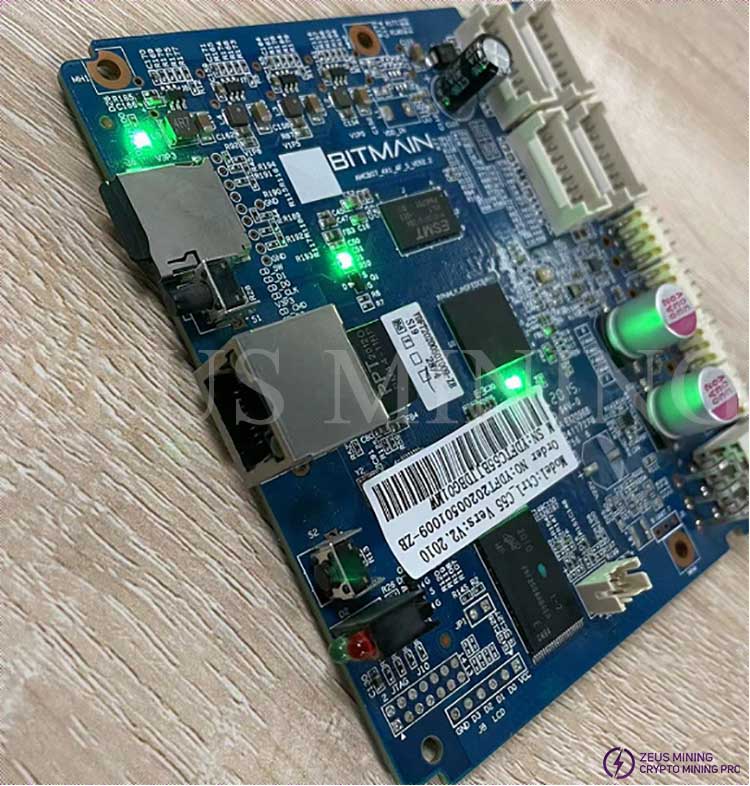

3. After the power is turned on, the status of the indicator lights is that the two lights are always on for about 3-5 seconds, the two lights are off for about 10 seconds, and the green light is always on.

a. Card flashing status double lights on

red and green lights on

b. Card flashing status double lights off

Red and green lights off

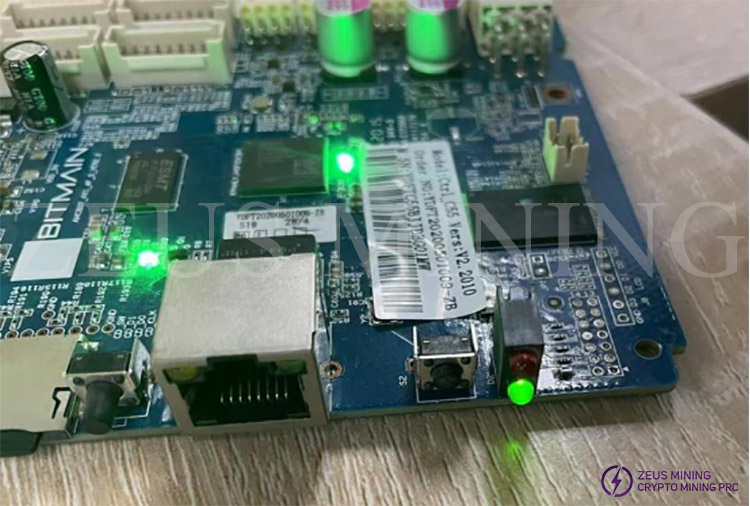

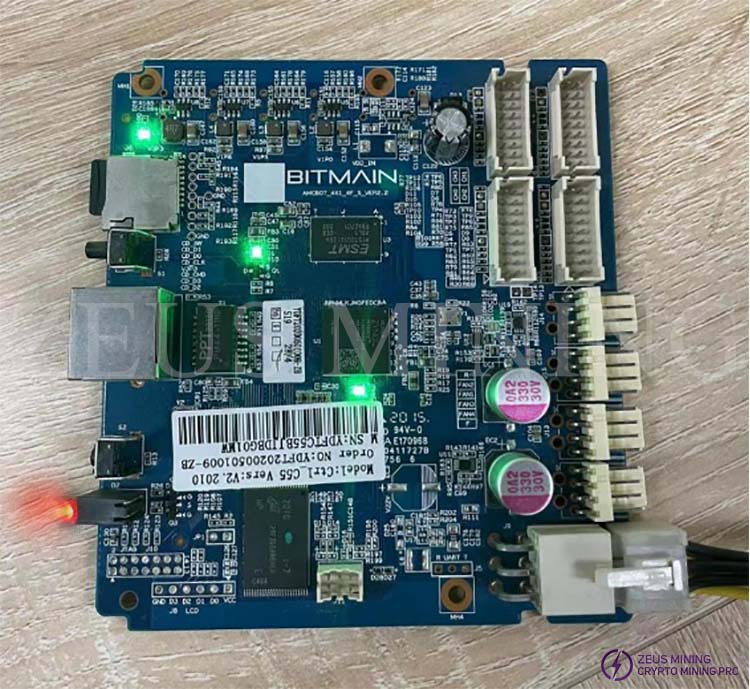

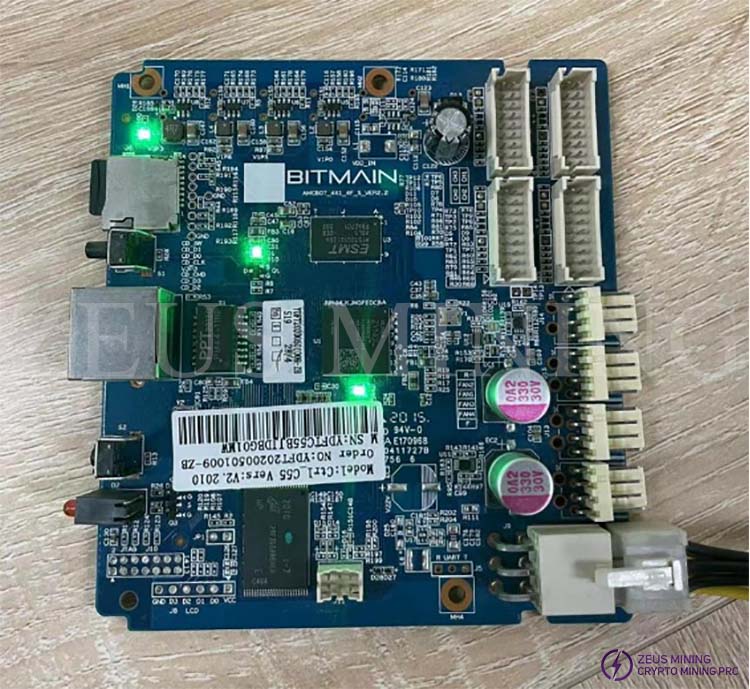

c. The status of card flashing completion is steady green light

green light is always on

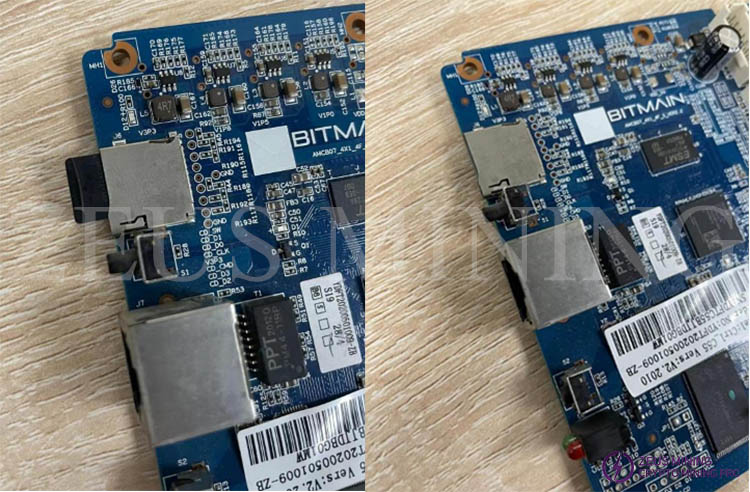

4. The card flashing is completed when the green light is always on. At this time, you can power off and pull out the TF card (to pull out the TF card, you need to press the memory card inward first, and the memory card will pop out and then pull it out).

eject the memory card

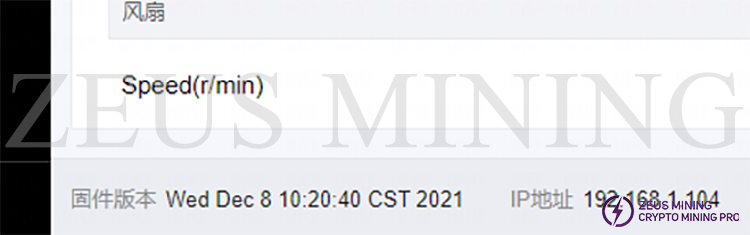

5. After unplugging the TF card, power on the control board again, and log in to the backstage after powering on to check whether the current miner version is the card flashing firmware version.

card flashing version
