Antminer S15 and T15 Manual Download

Antminer S15 and T15 Manual Download


Antminer S15 and T15 Hashboard repair guide manual download

The principles of S15 and T15 are basically the same, so we use the same detection and maintenance methods

This version contains the basic circuit schematic diagram and chip signal direction and voltage introduction

We are currently publishing in Chinese, the English version will be released soon

Basic overview:

The Antminer S15 single hash board has 72 BM1391AE chips, and the signal direction is transmitted sequentially from U1 to U72; the Antminer T15 single hash board has 60 BM1391AE chips, and the signal direction is transmitted sequentially from U1 to U60.

The Antminer S15 hash board has 12 voltage domains, and each voltage domain contains 6 chips.S15 hash board

The Antminer T15 hash board has 12 voltage domains, and each voltage domain contains 5 chips.

T15 hash board

It still uses 5 test points for inspection and maintenance

The five test points are: CLK / CO / RI / RST / BO

Some versions of Hashboard have no markup text

For a description of test points, see:

Fix: Description of Antminer Hashboard test points

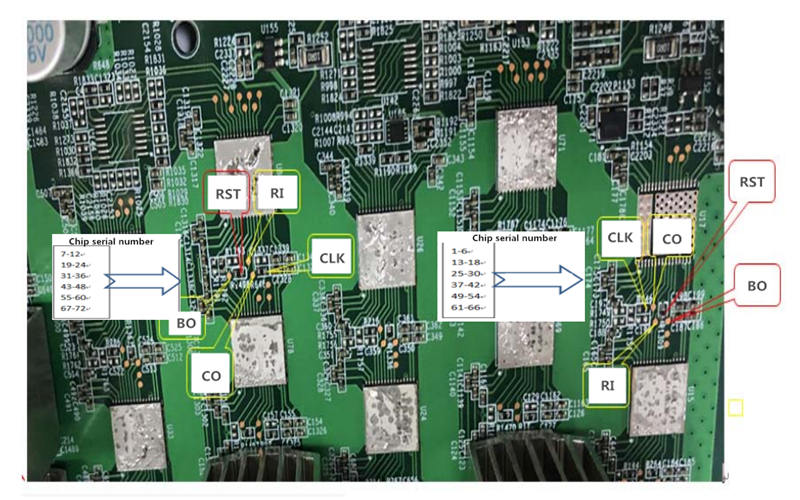

The test points are divided into two types according to the serial number of the chip:

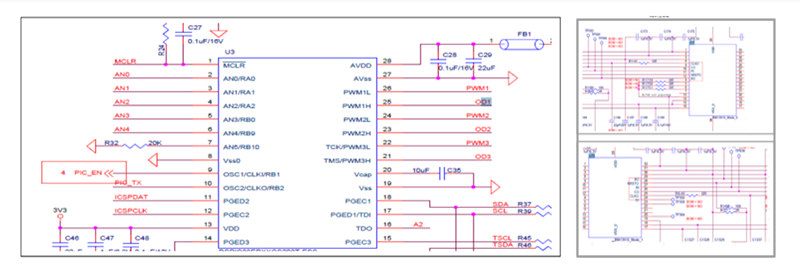

Of course, some circuit schematics are also provided


Antminer S15 T15 hash board repair guide download address:

click to download: Antminer S15 T15 Hash Board Repair Guide

Video tutorial for Hashboard inspection and repair, example model: S9

(The detection and repair methods of most miners in Antminer are basically the same)

Click to watch:AntminerS9 hash board repair and fault diagnosis video tutorial.

Related maintenance tools:

Official thermoset gel - 220g

Anti-static tin tools

Multi-function test fixture

Antminer S15 T15 chip 1391AE

Click to see more miner maintenance tools
