Maintenance of AntSpace HK3 V2 container Y type filter

I. Installation steps

1. Cut off the main power supply of the equipment;

2. Find the maintenance butterfly valve in the system shown in Figure 1 and close it, open the end cover of the filter, put the plug on it, and drain the liquid locally;

3. Find the position of the Y-type filter in Figure 1 and Figure 2;

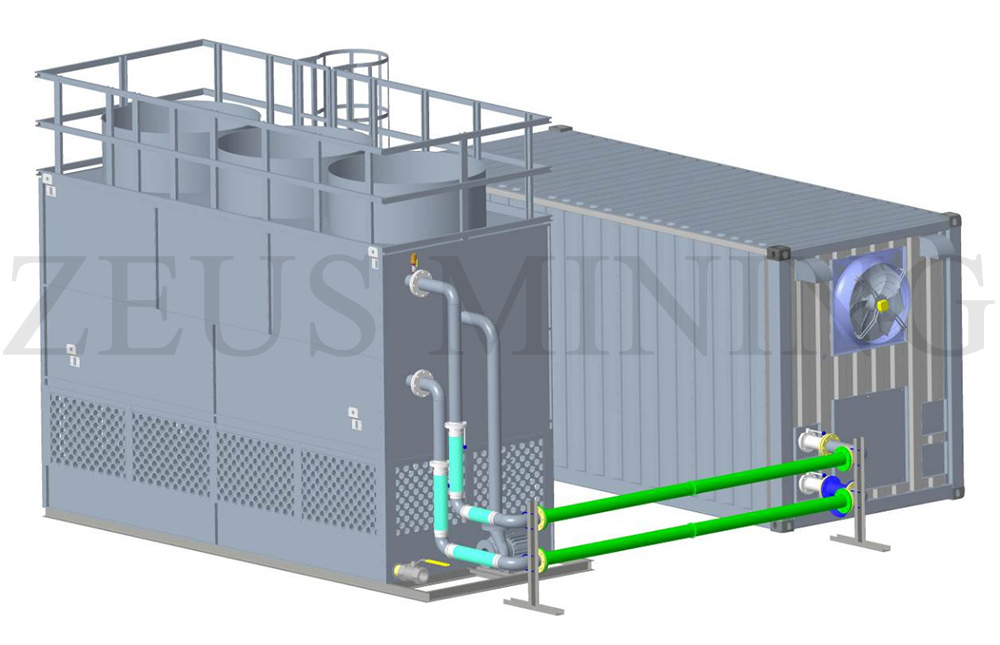

Figure 1 Location of pipeline inspection butterfly valve and Y-type filter

4. After finding the filter, use an adjustable wrench to unscrew the "filter cover" on the filter;

Figure 2 Filter view

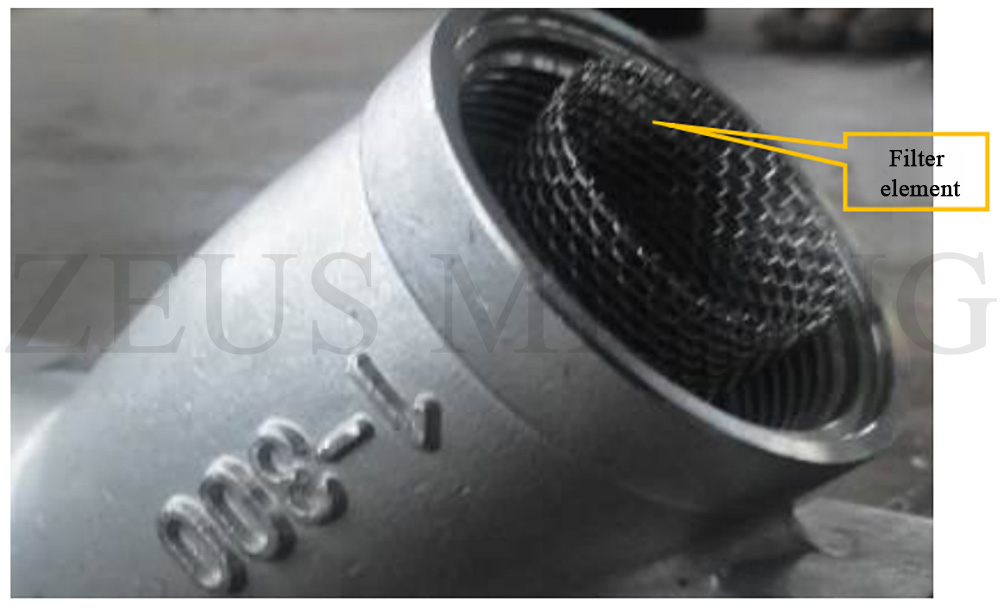

Figure 3 Schematic diagram of unscrewing the filter cover

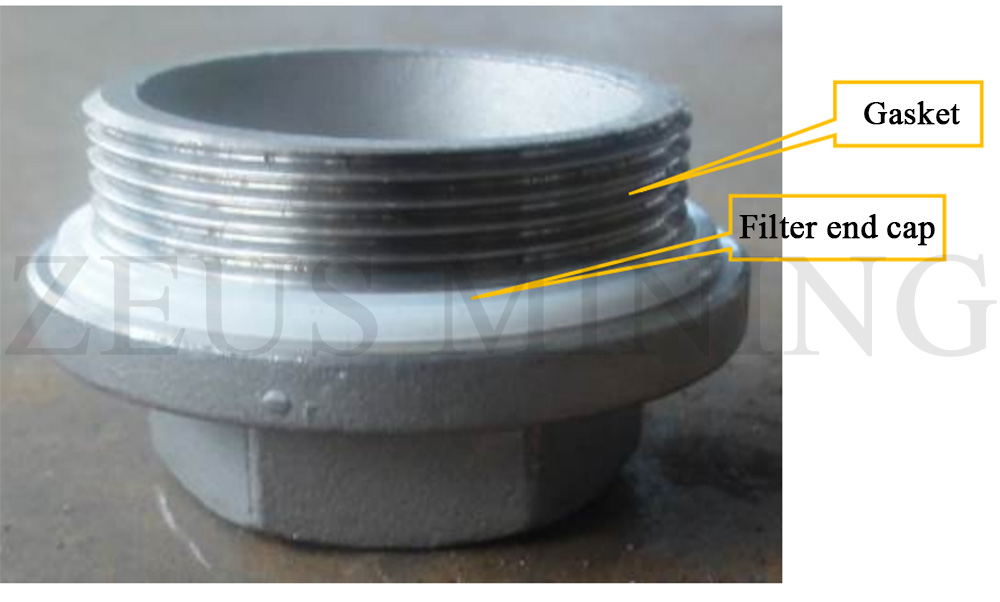

Figure 4 Schematic diagram of the filter cover

5. Take out the filter screen inside the filter to clean (or replace).

II. Installation method

1. Install the cleaned filter and tighten the filter cover with a wrench;

2. Power on the equipment and fill the system with coolant;

Note: The gasket on the filter cover must not be damaged!

Note: This is the water-cooled container parameter of AVIC version 1.3. If your product is from other manufacturers or other versions, it may be slightly different from this parameter. This parameter is for reference only.
