| Unit Price: | $ 5.5 |

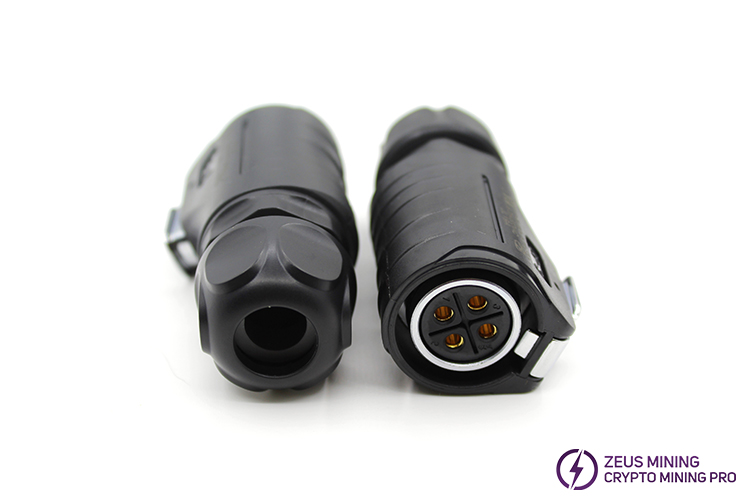

CNLINKO LP-20-J04PE-01-022 20A 500VAC female plug 4 cores, also known as LP20 waterproof aviation plug 4-core female connector, replaced the Antminer APW11 Hydro PSU cable failure plug. This connector is a high-precision, high-quality automatic plugging and unplugging device. The self-locking device is widely used in various challenging environments and occasions. It has simple operation, a fast and stable connection device, and challenging outdoor waterproof performance. 4U gold-plated connector, real gold plating, strong electrical conductivity, not easy to oxidize, and can extend its service life. In addition, it has high standards of IP67 waterproof, fireproof, and sun protection and has passed the UV0 fire retardant test.
Product parameters:
Product name: LP-20 female plug / LP-20 male socket plug
Product model: LP-20-J04PE-01-022 / LP-20-C04SX-03-101
Connection method: welding/locking wire
Cable diameter: Applicable OD range: Recommended to use ≦14mm
Waterproof level: IP65~IP68 (IP65 standard/IP67&IP68 optional)
Mechanical life: ≥500 times
Working temperature: -25℃~+85℃ (standard plastic model)
Vibration: Frequency: 5~200Hz, Amplitude: 5mm, Speed: 10m/s, 0.10us without instantaneous circuit break
Salt spray: ≥48H
Number of cores: 4 cores
Rated current: 20A
Working voltage: 500V AC
Withstanding voltage: 2000V AC
Contact resistance: 1.0mΩ
Contact: ф2.7x4
Wire gauge (mm²/AWG): 4.0mm²/12AWG
LP-20-J04PE-01-022 female plug:

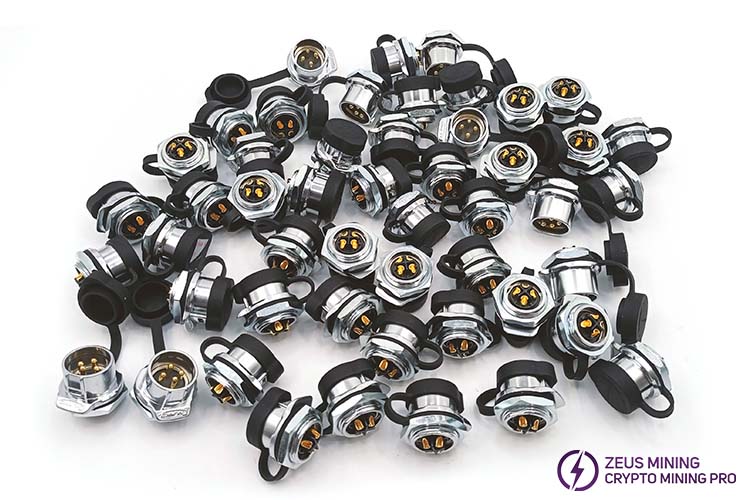

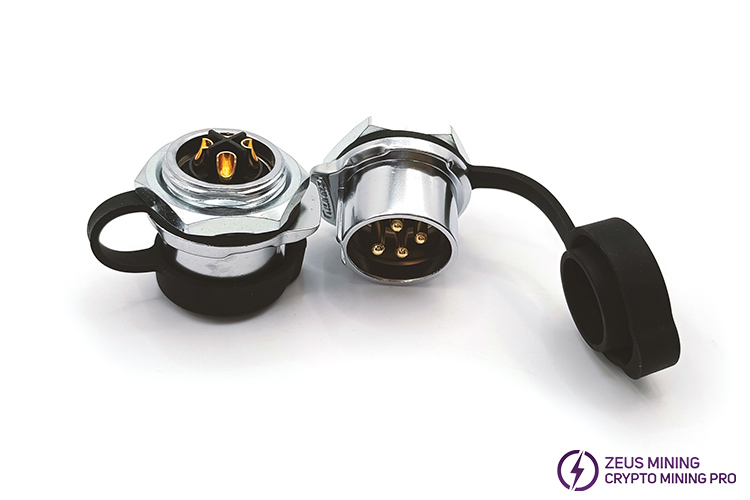

LP-20-C04SX-03-101 male socket plug:

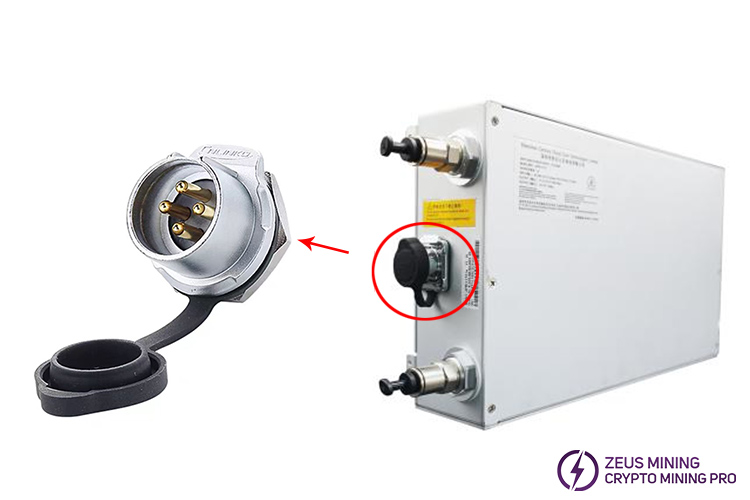

LP-20-C04SX-03-101 20A male power socket connector plug is suitable for APW11 power supply.
Application:

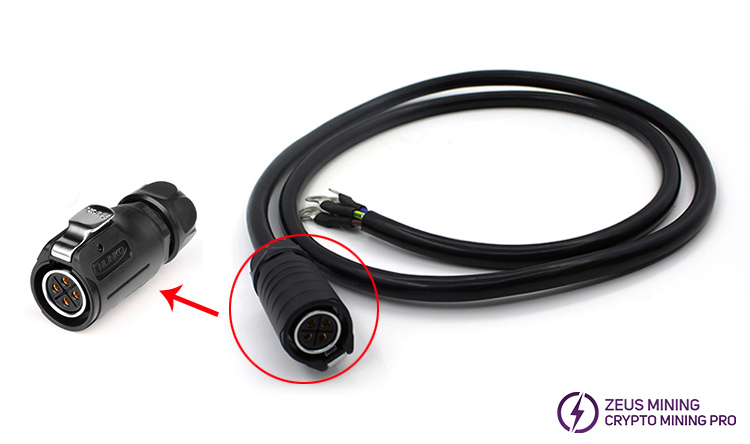

LP-20-J04PE-01-022 20A female plug connector is suitable for Antminer APW11 Hydro PSU cord and LS-7R0S14+12 7KW water cooling PSU power cable.
Please click "How to replace the LP20 aviation plug 4-core female for the APW11 Hydro PSU cord?" to view the specific usage of this product.
