Maxtor MTP-8301A Thermal Paste 11.2W/m·k 200g 2kg

Product description

Maxtor MTP-8301A is a thermal grease with a thermal conductivity of up to 11.2W/m·k. It has strong thermal conductivity and can significantly reduce the chip's temperature to ensure the server's stable operation and extend its service life. MTP-8301A thermal grease is mainly used to fill the gap between the CPU, GPU, ASIC chip, and radiator to conduct the heat emitted by the chip, keep the chip temperature at a stable working level, and avoid damage to the chip due to poor heat dissipation, thereby extending the life of its servers.

Note: It is recommended to use it with the corresponding model of the hash board thermal grease mold.

Compatible models include:

Antminer: L9, S21+, S21+ Hydro, S21 Hydro, S21PRO, S21XP, S21, T21, KS5, KS5pro, S19jXP, HS3, KS3, KA3, DR7, E11, D7, L7, S19jPro-A, S19Pro-A, S19L, S19XP, S19aPro, S19a, S19jpro+, S19jpro, S19Pro, T19 Hydro, S19 Hydro, S19pro Hydro, S19PRO+ Hydro, S19XP Hydro, S19j, S19, S19i, T19, S17Pro, T17, S17, S17e, S17+, T17e, T17+, S15, T15, etc.

Whatsminer: M63s++, M63S+, M63S, M63, M61, M60S, M60, M50S++, M50S+, M50S, M50, M32S, M32, M31S++, M31S+, M31S, M30S++, M30S+, M30S, M30, M21S, M21, M20, M20S, etc.

Avalon: A1566, A1446, A1366, A1346, A1166pro, A1146pro, A1146, A1166, A1066, A1066pro, A1056, A1047, etc.

Iceriver: KS5M, KS5L, KS3M, KS3L, KS3, etc.

Product parameters:

Product name: MTP-8301A

Thermal conductivity: 11.2W/m·k

Thermal resistance: <0.112℃-in²/W

Density: 2.8g/ml

Dielectric strength: non-conductive under normal conditions

Color: light gray

Working temperature: -50℃ to 250℃

Net weight: 200g / 2kg

Storage method: Recommended to cold storage in refrigerator

Usage steps:

1. Clean the corrosion, dust, oil, and residual silicone grease on the ASIC chip surface with Mechanic 500 S880 850 lead free circuit board cleaner and HM-11 nano high density cleaning sponge;

2. Place the integrated heat sink into the silicone grease mold, and then use a scraper to apply the thermal grease to the silicone grease mold evenly;

3. After applying, take out the integrated heat sink, install it on the hash board, and fix it with screws.

Please refer to "Usage tutorial for MTP-8301A thermal paste 11.2W/mk" for the usage tutorial.

Due to the pastes and liquids are sensitive goods and their transportation is restricted, this product will be shipped separately using sensitive goods channels, and the delivery time will be slightly longer 8 to 20 working days.

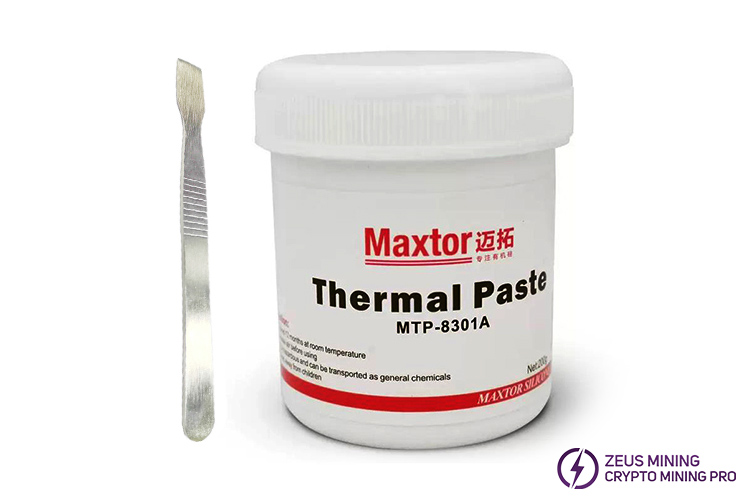

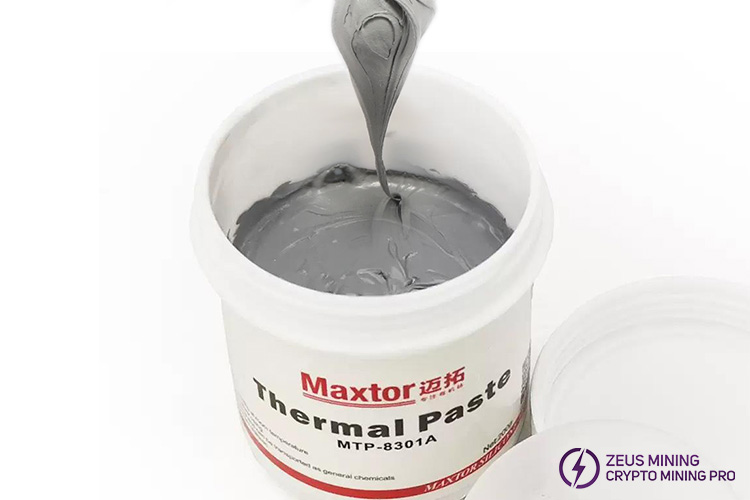

Product display

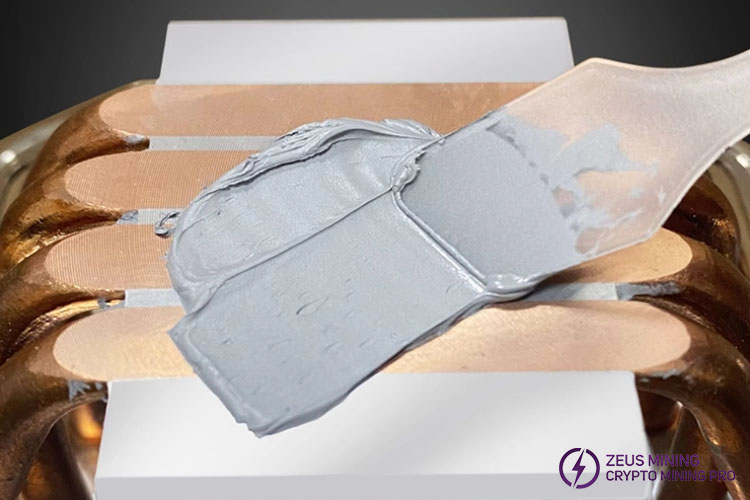

Effect display

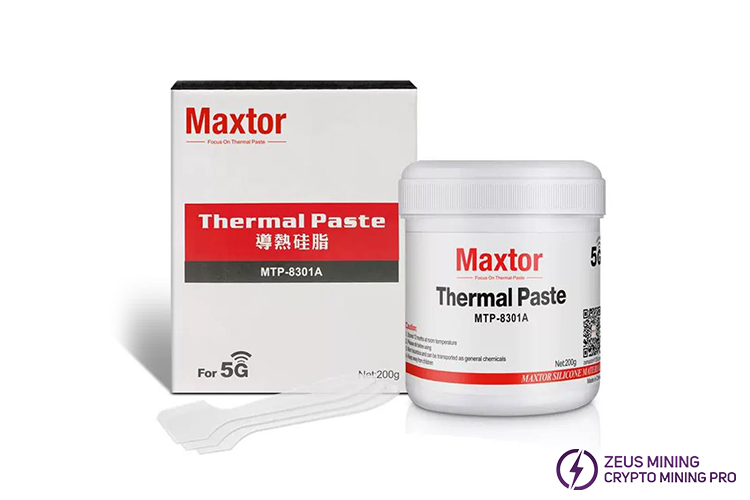

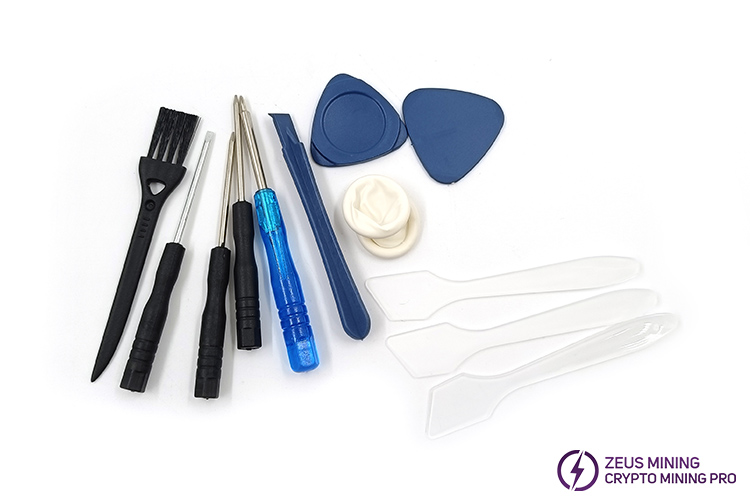

Packaging display
