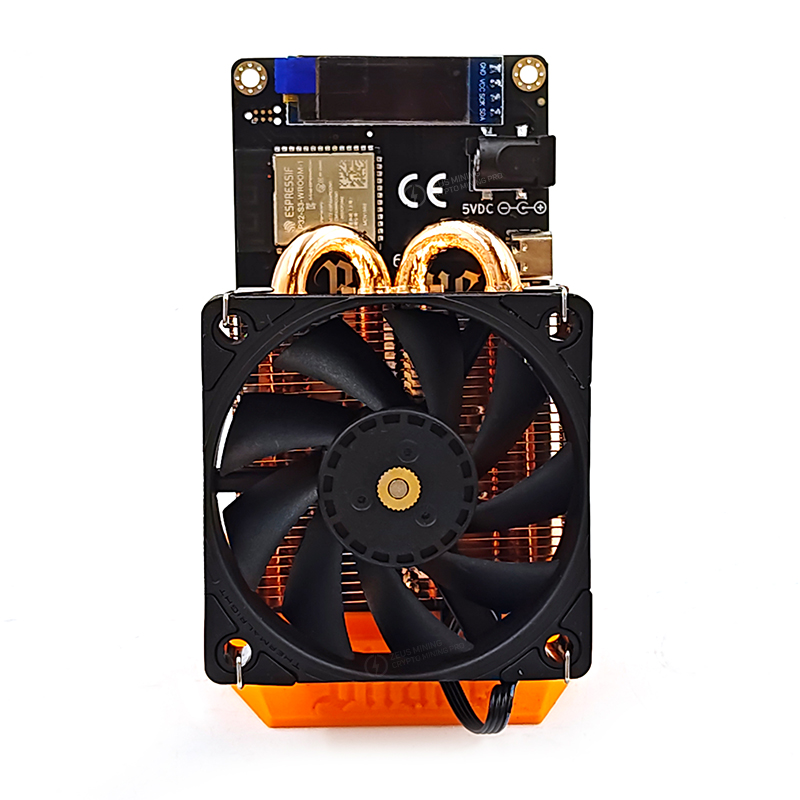

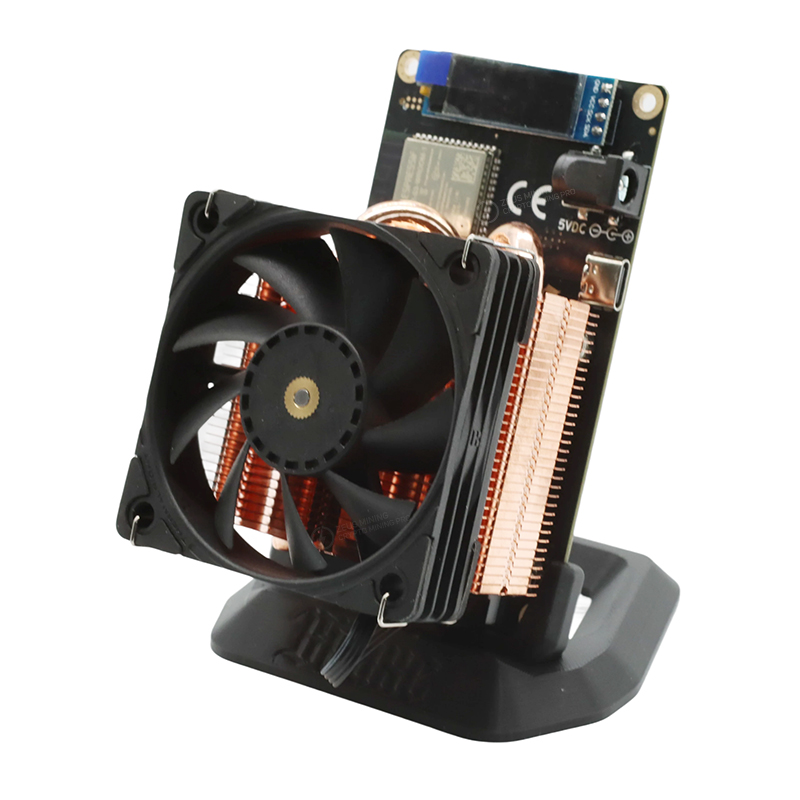

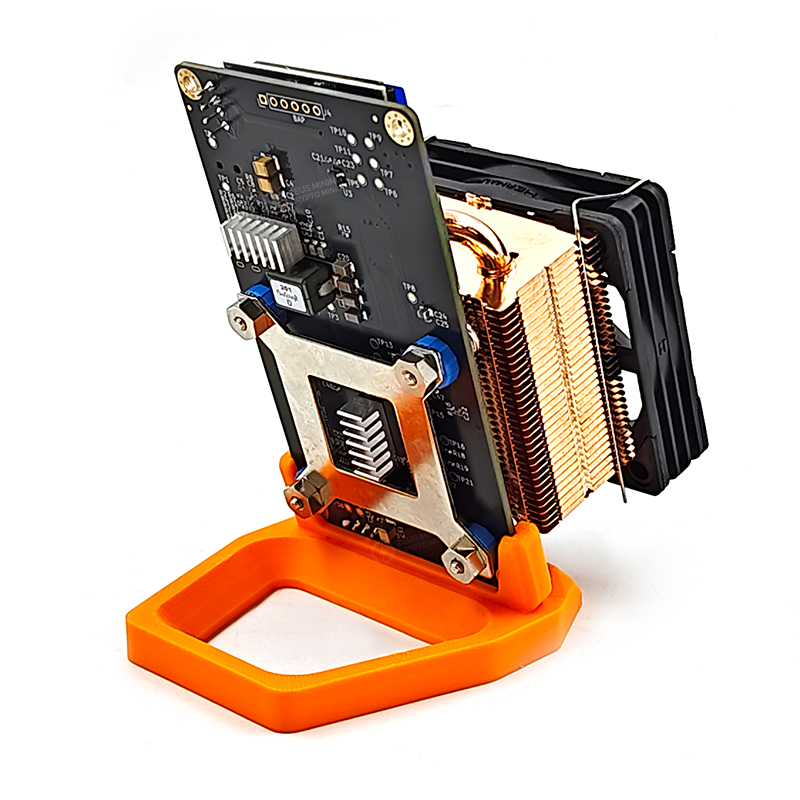

The Bitaxe Gamma 601 Max Bitcoin miner is a lightweight SHA256 hashrate device designed specifically for personal home solo mining scenarios. The entire machine is equipped with a single BM1370 ASIC chip, precisely calibrated at the factory, stably outputting a standard hashrate of 1.9TH/s while strictly controlling full-load power consumption to 30W, achieving an ultimate balance between ultra-high hashrate and ultra-low power consumption, completely solving the pain points of traditional miners such as high power consumption, high noise, and bulky size.
The device uses a full-pure copper heat dissipation module as its core heat dissipation structure, with thermal conductivity far exceeding that of conventional aluminum heat dissipation solutions. Combined with an intelligent temperature-controlled fan, it can quickly dissipate the heat generated by the BM1370 chip, ensuring stable 24/7 operation and preventing issues such as high-temperature throttling and hashrate fluctuations, significantly extending the device's lifespan. The device features a built-in dedicated WiFi module, eliminating the need for cumbersome network cabling. It supports one-click wireless network configuration and, coupled with a fully open-source operating system, is perfectly adapted for Solo mining. It boasts strong compatibility and high operational freedom, meeting the dual needs of ordinary users for home mining and experienced gamers for customized debugging.
Parameters | Specifications |
Product model | Bitaxe 601 Max |
Core ASIC Chip | Bitmain BM1370 single ASIC SHA256 chip |
Rated hashrate | 1.9TH/s (factory preset stable frequency) |
Full load power consumption | 30W (5V DC input) |
Applicable mining algorithms | SHA256 (primarily for Bitcoin (BTC), compatible with other cryptocurrencies using the same algorithm) |
Power supply | DC 5V round hole power supply + USB Type-C dual power supply interface |
Cooling solution | All-copper dense fin heat sink + 60mm PWM intelligent temperature-controlled fan |
Display configuration | 0.96-inch OLED real-time data display |
Network mode | 2.4GHz WiFi (no network cable required) |
1. Bitaxe 601 Max equipped with BM1370 single chip, 1.9TH/s full hashrate.
Using the original Bitmain BM1370 SHA256 dedicated ASIC chip, the Bitaxe 601 Max is factory pre-calibrated, with a stable nominal hashrate of 1.9TH/s. Specifically developed for the BTC SHA256 algorithm, it is primarily designed for personal Solo mining.
2. Ultra-low power consumption of only 30W under full load, ideal for low-cost home use.
The entire machine's power consumption is locked at 30W (5VDC input), equivalent to a small router. Daily 24-hour continuous operation results in extremely low electricity costs. No need to worry about power consumption when running it in a bedroom, study, or on a desktop, unlike traditional high-power mining rigs.

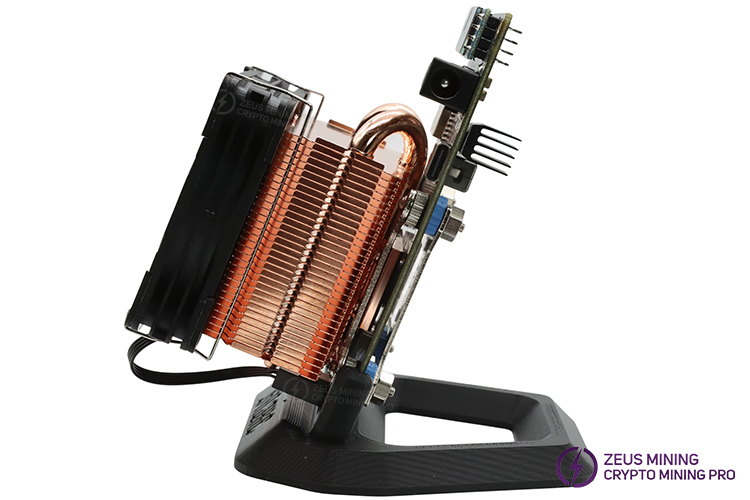

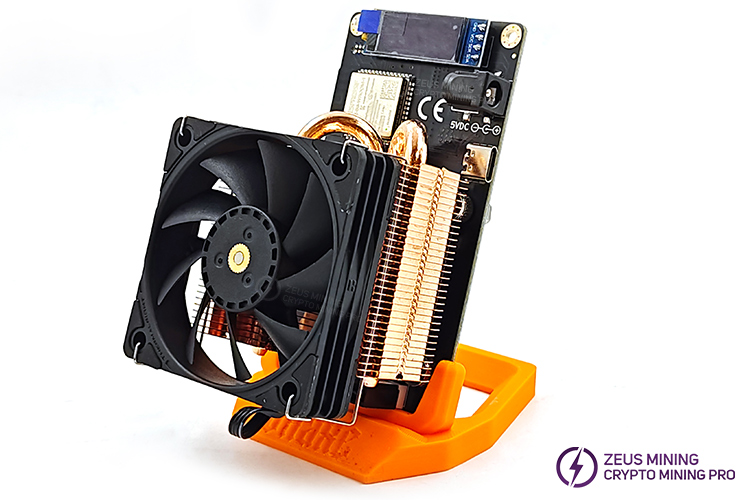

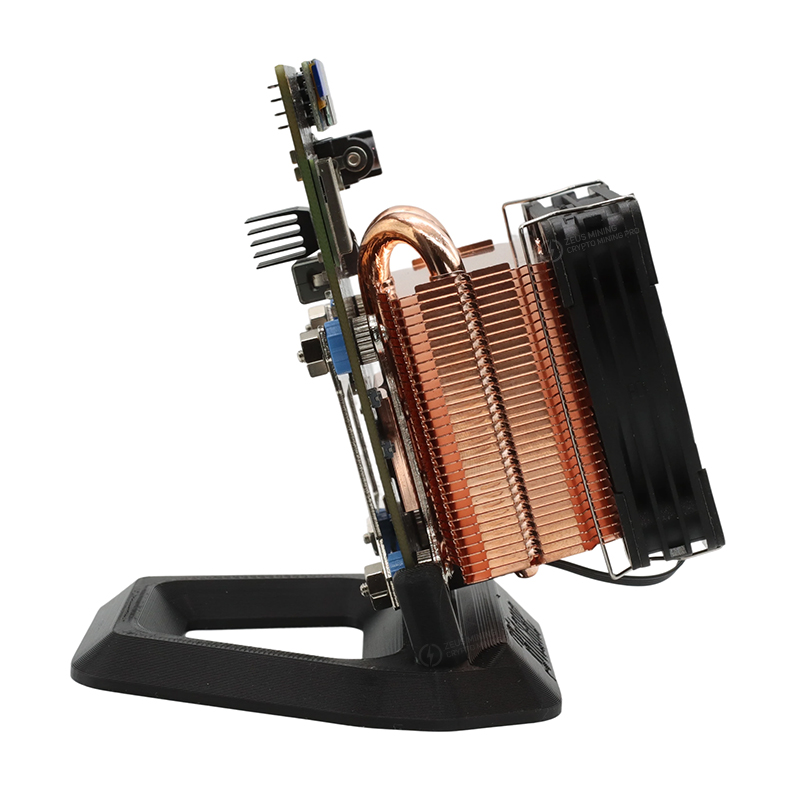

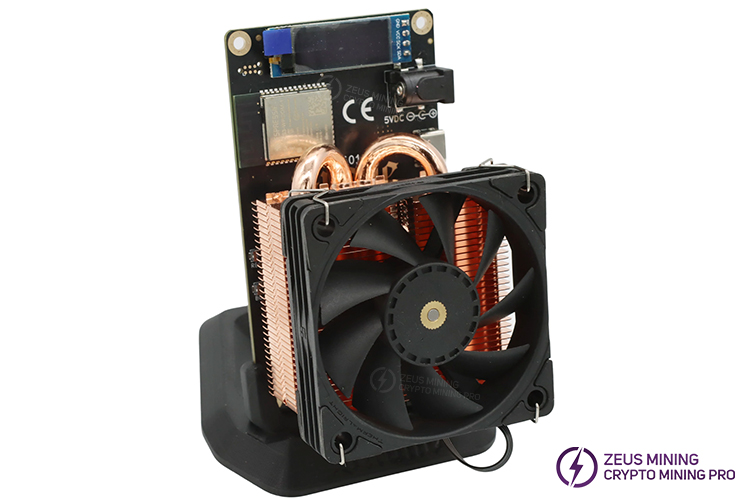

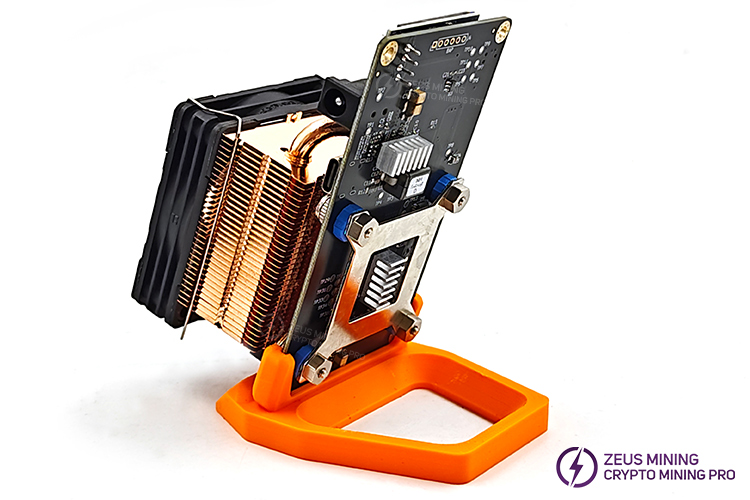

3. All-copper fins + PWM intelligent temperature-controlled air cooling for quiet and long-lasting heat dissipation.
High-density upright copper heatsinks have a thermal conductivity far exceeding that of aluminum heatsinks, quickly dissipating heat from the BM1370 chip.
A 60mm 5V silent temperature-controlled fan automatically adjusts its speed based on chip temperature, ensuring low-noise operation during normal use and automatic speed increase and temperature control during high temperatures, preventing frequency throttling and power loss.

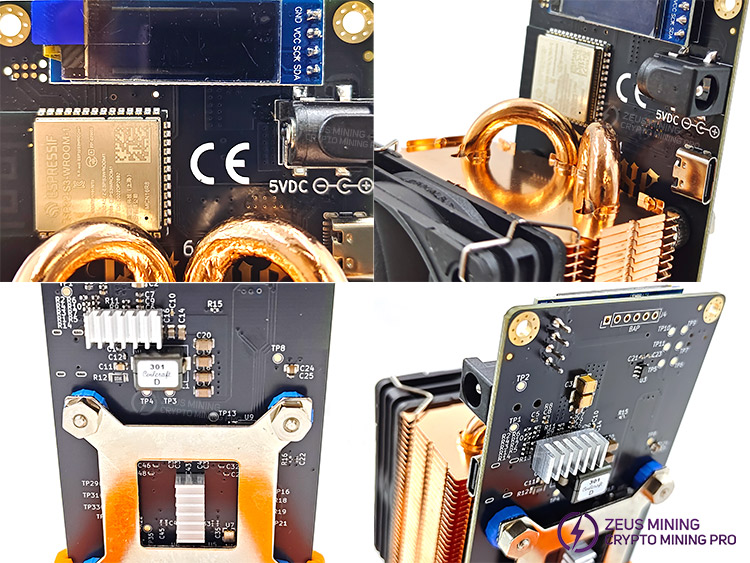

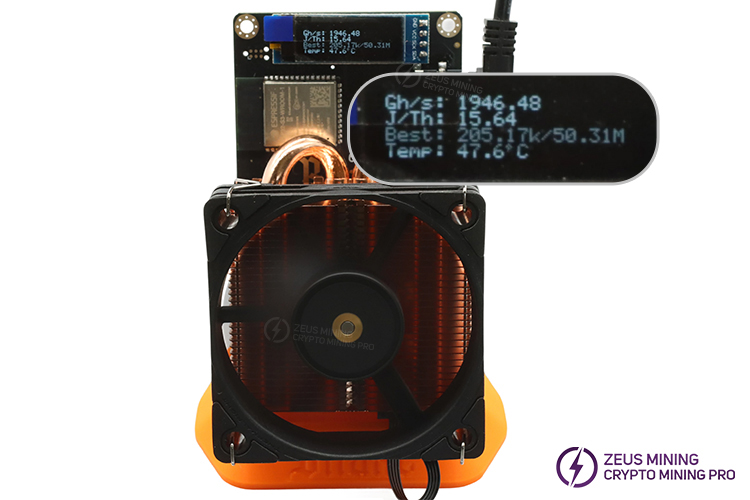

4. Onboard OLED display for convenient and visualized maintenance.
The device features a built-in 0.96-inch OLED screen that displays real-time hashrate, chip temperature, overall power consumption, WiFi connectivity, and mining pool online status. 2.4G WiFi connectivity allows for one-click mining pool configuration, parameter fine-tuning, and firmware upgrades via a web browser, making it easy for beginners.
Q1: Can the Bitaxe 601 Max maintain a stable hashrate of 1.9T? What is the overall power consumption?
A: It comes with factory-preset optimal parameters, stably running at 1.9TH/s in a normal temperature environment. The full-load power consumption is a constant 30W, and the idle power consumption is even lower.
Q2: Will high temperatures in summer reduce computing power?
A: The device features full copper heatsinks and a PWM temperature-controlled fan, allowing for stable full-load operation up to 35℃. In high-temperature environments, it is recommended to place it in a well-ventilated area, avoiding enclosed or confined spaces.
Q3: Is the machine noisy? Can it be left running 24/7 in a bedroom?
A: The temperature-controlled fan automatically adjusts its speed, with full-load noise ≤38 decibels, close to the sound of a laptop running. Its quiet design ensures it won't disturb neighbors while running in a bedroom or study.
Q4: What cryptocurrencies does the machine support for mining?
A: This is a SHA256 algorithm model, primarily designed for Bitcoin (BTC) Solo mining, and compatible with all cryptocurrencies using the same SHA256 algorithm.

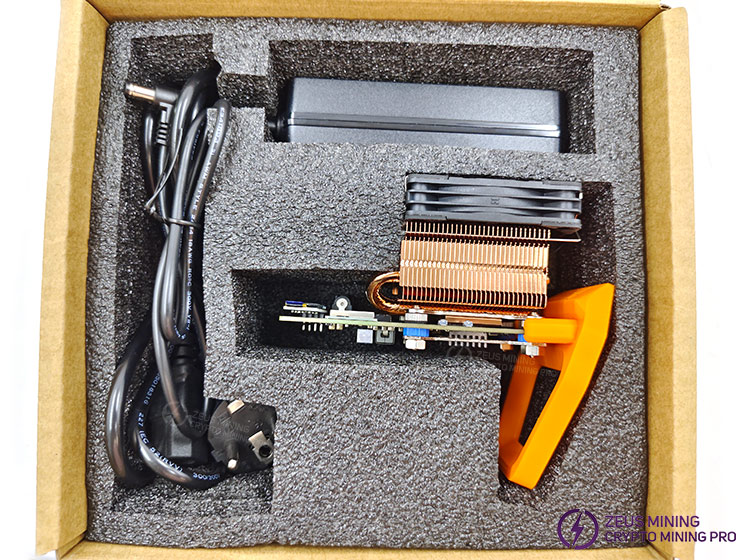

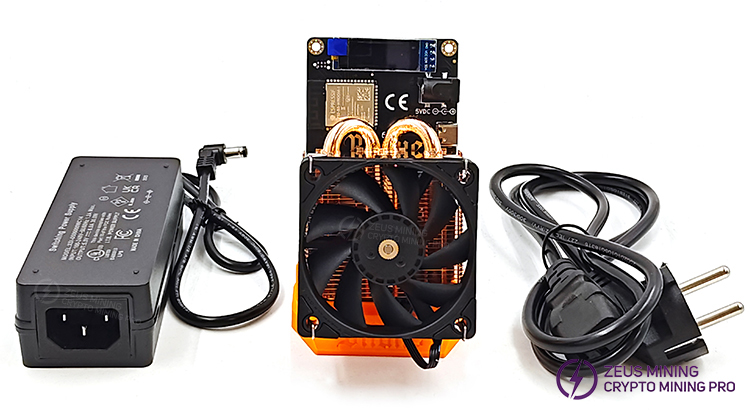

Adapter *1
Main unit *1 (black or orange)
Power cord *1
