How to use the CH343G6T USB to TTL serial port module?

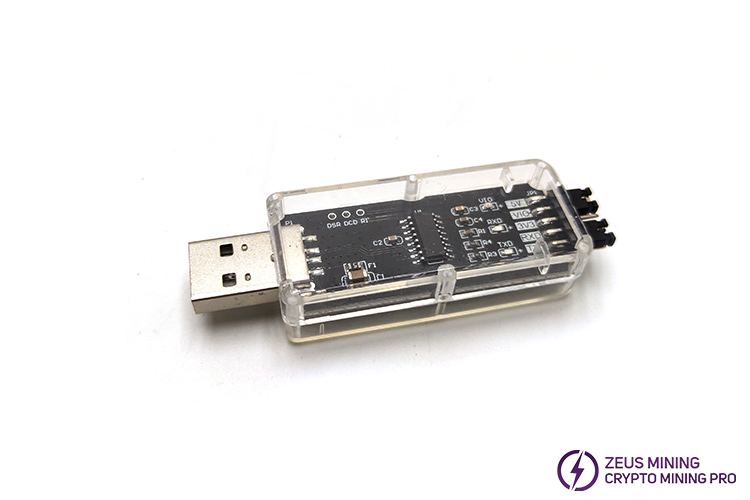

The CH343G6T USB to TTL serial port module can be used to view the Iceriver KS test fixture logs. It employs the third-generation USB-to-serial chip CH343, enabling the conversion from USB to high-speed asynchronous serial ports.

Product Features:

1. Supports serial communication voltages such as 5V / 3.3V / 2.5V / 1.8V, allowing direct connection to various MCU, CPU, and other devices without the need for level conversion.

2. Compatible with multiple systems, supporting operating systems like Windows / Linux / macOS / Android, and is compatible with various serial port software.

3. Built-in UniquelD. When the module is inserted into any USB port, the serial port number remains fixed, eliminating the need for manual searching.

4. Supports full MODEM communication signals RTS, DTR, DCD, RI, DSR, CTS, and can also be used as GPIO for MCU downloading, IO control, etc.

5. Supports hardware automatic flow control for serial port CTS and RTS, ensuring high-speed continuous communication without packet loss.

Usage Method:

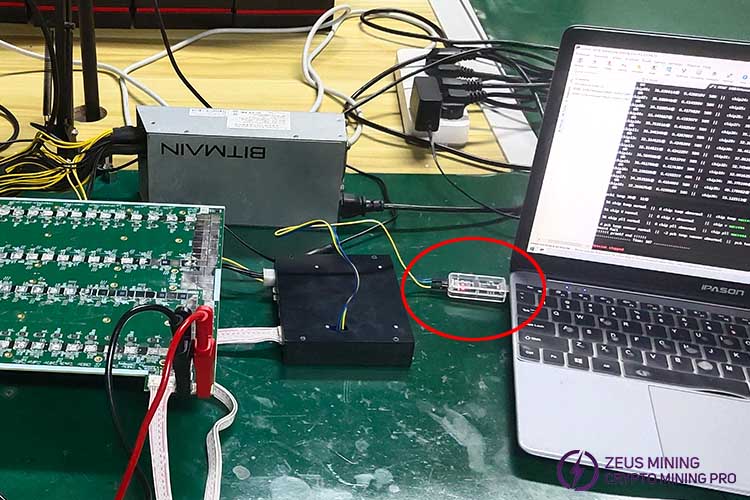

When using the KS tester to test the iceriver series hashboard, it must be used in conjunction with the CH343G6T USB to TTL serial port module. One end is connected to the DuPont cable of the tester, and the other end is connected to the computer, so that the KS test fixture log can be viewed on the computer.

The CH343G6T USB to TTL serial port module is characterized by its simplicity, speed, and multi-system compatibility, making it an ideal choice for viewing the IceRiver KS test fixture logs.
