How can the 493 solder smoking apparatus be used during the ASIC miner hash board and PSU repair?

Solder fumes produced during the soldering process contain toxic components and pose a threat to human health. The 493 industrial-grade solder fumigator, equipped with a high-efficiency activated carbon filtration system and powerful fumigation capabilities, effectively adsorbs and blocks harmful solder fumes and lead dust. The equipment also features a safe anti-static design, providing reliable protection for operators and significantly reducing the risk of inhaling toxic substances.

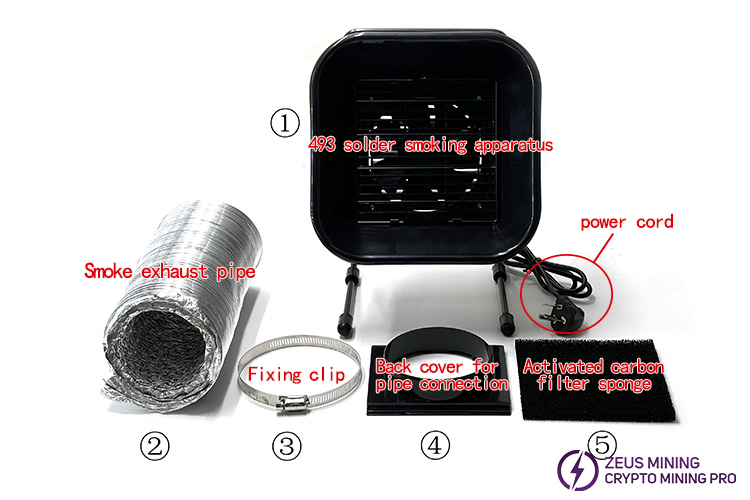

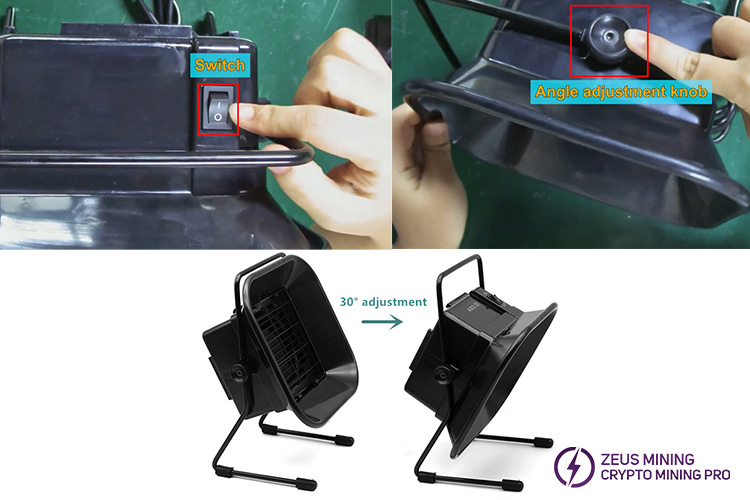

This solder smoking apparatus device features a complete filtration system, including a 5-meter-long retractable exhaust pipe, a rear cover for pipe connection, a fixing clamp, and a core activated carbon filter sponge. It has an independent power switch and a filtration angle adjustment knob (supporting 30° adjustment) for precise control of the fume extraction range; a power cord is also included.

Now I will demonstrate how to use the solder smoking apparatus:

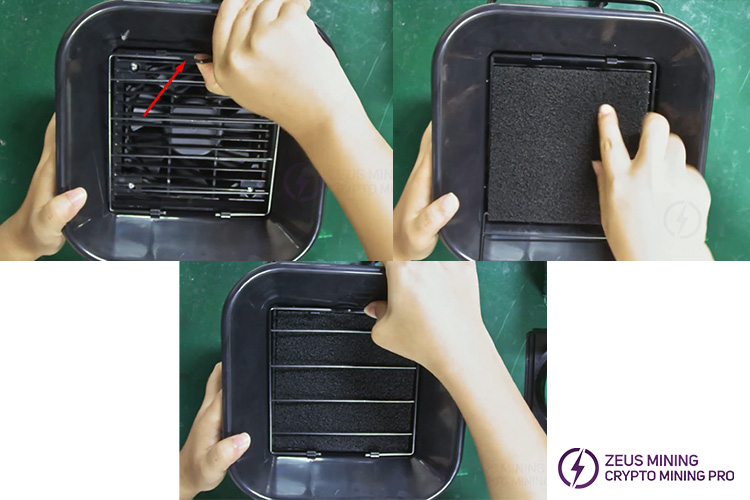

Step 1: Open the baffle, insert the activated carbon filter sponge, and then secure the baffle.

Step 2: Plug the power cord into the power outlet.

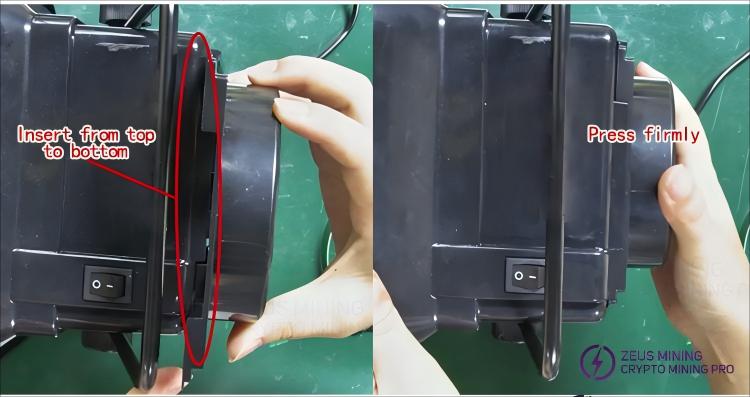

Step 3: Insert the back cover for pipe connection from top to bottom along the groove here, and press firmly.

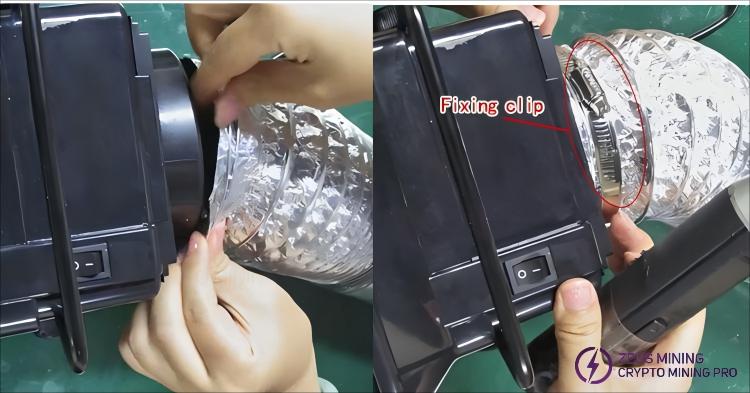

Step 4: Install the exhaust pipe and secure it with clips.

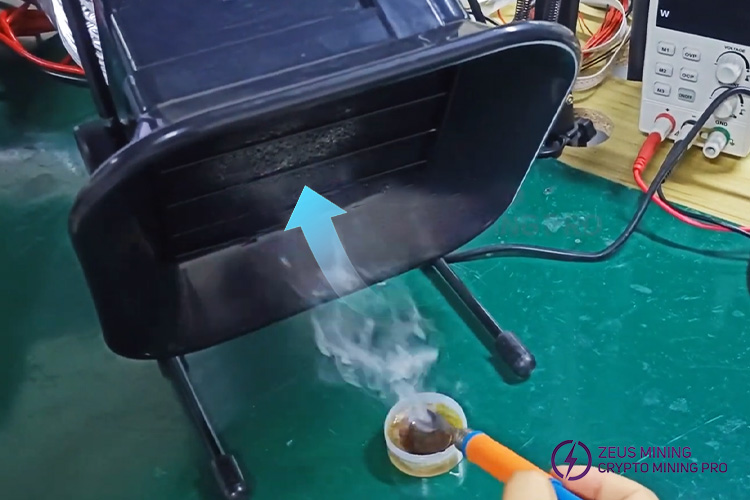

Finally, let's look at its smoke extraction effect.

When we solder components on hash boards, power boards, or other PCBs, soldering fume extractors can completely remove the fumes, providing a healthy, comfortable working environment and reducing the harm of toxic fumes to our bodies.
