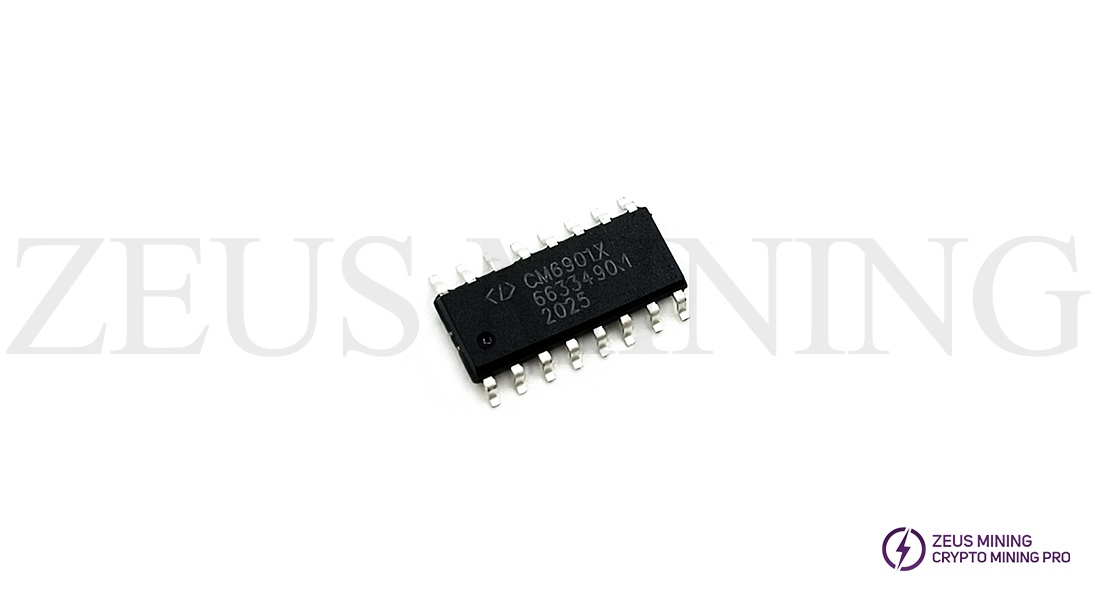

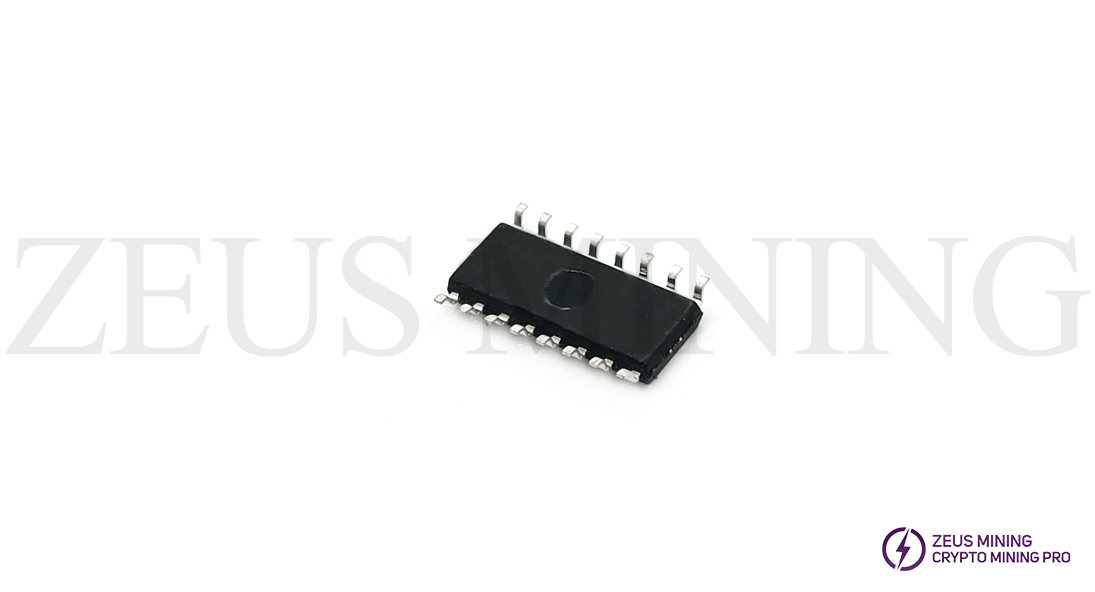

CM6901X SMD
CM6901X SMD
1 pcs $ 2.54

MOQ: 20 pcs Weight: 0.001 KG

+ Add To Cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Product description:

CM6901X SMD is an SLS, SRC/LLC + SR resonant controller and it can operate at both SRC and LLC regions with synchronous rectification to achieve high efficiency. The CM6901X has FM + 2 PWMING modes to have the optimal balance performance between hold-up time and efficiency.  It is used for DC-DC conversion in an offline application. Light load regulation is accomplished by transitioning the controller from frequency modulation mode into PWM mode. Call this is Light load PWMING function. When ac turns off, the bulk input voltage will drop. SR Ideal Diode PWMING for synchronous drivers is accomplished by comparing the voltage signal at the RSET pin to the RTCT ramp.

The pulse-width reduction will happen when switching frequency below the highest resonant point frequency fr1. CM6901 system has a constant voltage feedback loop with a precision 2.5V VFB reference. The 1V LIMIT can be latched when a standby converter is applied; otherwise, it is an auto-restart I limit.

CM6901X SMD is used to replace the faulty chip of Antminer APW12 1215a power chip.

CM6901

Features:

90+ controller and smaller & thinner transformer

20ms with reasonable Bulk Cap(hold up time)

SLS, SRC/LLC + SR resonant controller

2 Gate Drivers: Typical Peak Drive from 12V

UVLO =11V with 1V Hysteresis

SR ideal diode PWMING(cross resonant frequency application )

GM FEAO, FM modulation error amplifier

GM DEAO, PWM error amplifier

Soft start capability with shutdown function

Auto-restart during current LIMIT

Precision 2.5V VFB threshold for a constant voltage feedback loop

Precision 1V I limit threshold (ILIM)

CM6901X price
