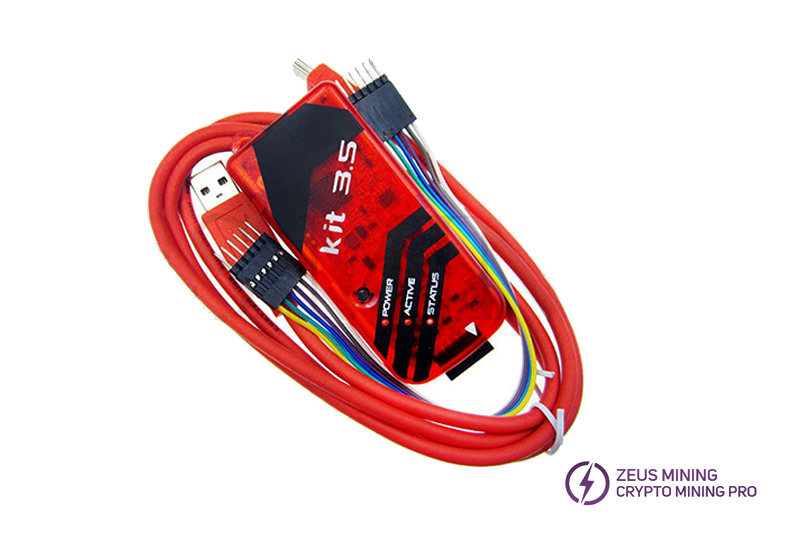

PICKit 3.5 programmer

CUSTOMER REVIEWS

PICKit 3.5 programmer
1 pcs $ 29

MOQ: 1 pcs Weight: 0.3 KG

+ Add to cart

Availability: In Stock
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Product description:

PICkit3.5 In-Circuit Debugger Programmer PICkit3.5 is an online debugger programmer, the official authentic product, and the economy is stable. It is suitable for programming and programming in various situations, and can also burn hash PIC files. Compared to kit3, PIC kit3.5 has a firmware self-recovery function.

PIC-kit3.5-programmer

Advantages after the upgrade:

1. Offline programming will not crash. It perfectly supports all versions of software MPLAB, MPLABX, offline programming will never crash, and the programming speed is faster.

2. KIT3.5 will never drop the firmware. The firmware is self-recovering, no need to disassemble the shell, no need to flash the program, the firmware is automatically restored in 1 minute.

3. Strengthen interface protection. Using 1812 self-recovery fuse and powerful protection circuit.

4. The programming voltage is stable and the power supply current is large.

5. Improve the interface, protect the circuit, and the short circuit will not be broken.

The imported USB interface is used to prevent the USB interface from being loose after being unplugged and plugged for many times; the brand new original transparent shell, using high-quality materials, the product is more durable; at the request of the majority of customers, the surface of the shell is frosted to reduce the use of fingerprints and scratches. More durable.

This product requires personnel with professional knowledge.

PICkit3.5-Debugger

PICKit 3.5 programmer is used to read and save the PIC chip data of the hash board, and the PIC chip stores the chip and voltage data of the hashboard. If the PIC chip data of a miner's hash board is damaged or lost, the hash board will not work. Different miners require corresponding PIC files, and PICKit 3.5 programmer need to be programmed with a programming tool.

How to reprogram a PIC chip (taking PIC12F1572 as an example) using PICKit 3.5 programmer?

1. First, you need to install the burning driver on your computer: MPLABX-v3.10-windows-installer.exe

After installation, it will look as the following picture:

install the burning driver

2. Set MPLAB IPE V3.10, as shown in the figure below, select PIC12F1572 as Device, and then click Apply.

set MPLAB IPE V3.10

3. Click File→Import→Hex to find the program storage disk.

find the storage disk

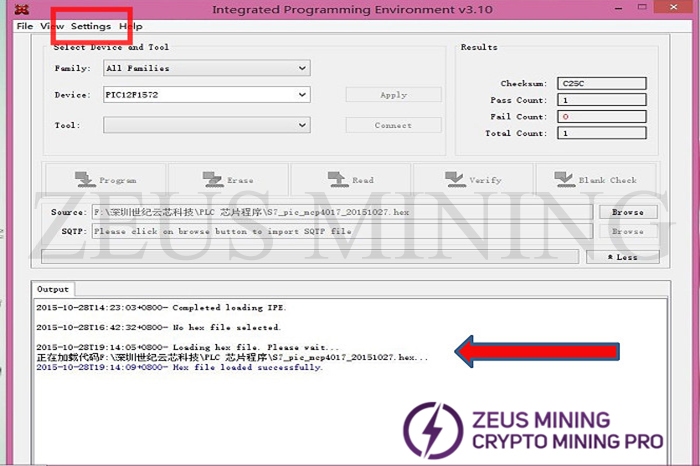

4. Select the corresponding program, open it and enter the next interface, and then select Setting→advanced mode.

setting interface

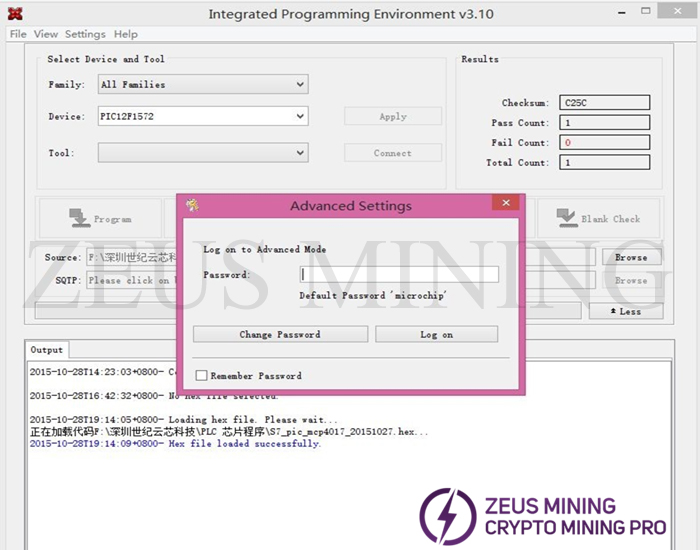

5. Enter the password microchip to enter the advanced settings.

enter the password

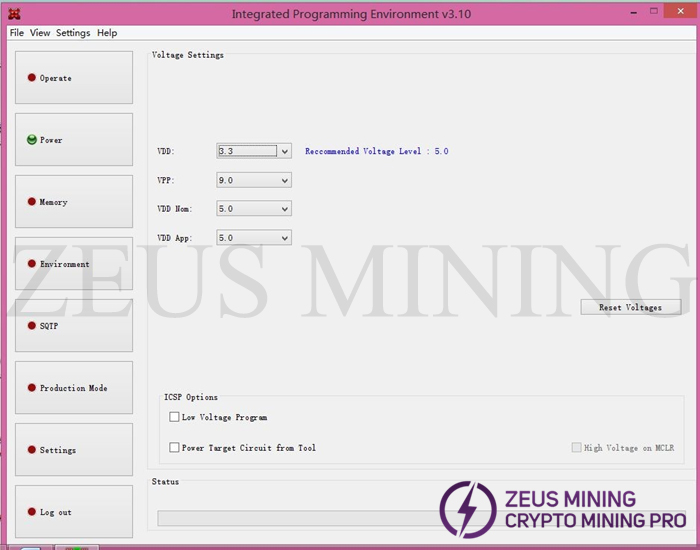

6. Click Power→VDD voltage to select 3.3V→check Power target circuit from Tool ✔→click Operate to enter the next interface.

3.3V VDD Voltage

7. Make sure that the data serial port of the PICKit 3.5 programmer is properly connected to the computer.

PICKit 3.5 with computer

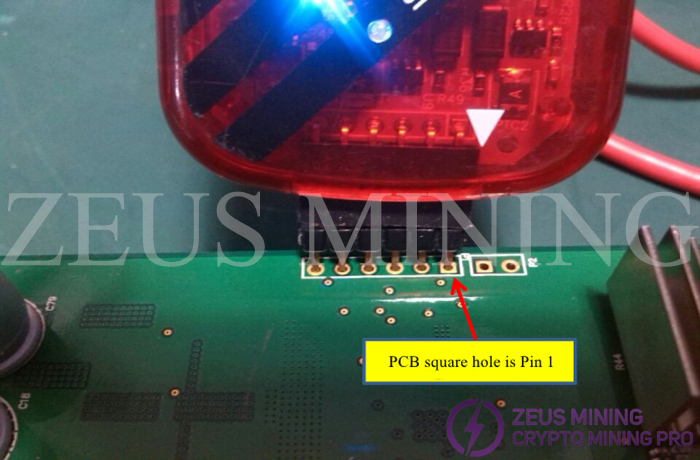

8. PICKit 3.5 programmer is directly connected to the P1 position of the hash board, and the direction image.pngon the PICKit 3.5 programmer is aligned with the P1 square hole (as shown in the picture). Note that the hash board does not need to be powered up at this point.

connet PICKit 3.5 to hash board

9. Click Connect, the MPLAB IPE warning check appears, then click OK.

MPLAB IPE warning

10. Click Program to start burning.

PICKit 3.5 programming

11. Click Read to view the burning information.

programming information

Notice:

(1) The voltage of the PIC16F1704 chip needs to be adjusted to 3.3V for programming.

(2) The voltage of the PIC16F1705 chip needs to be adjusted to 4.8V for programming.

(3) The voltage of the PIC12F1572 chip needs to be adjusted to 3.3V for programming.

(4) When programming the next PCBA continuously, connect the PICKit 3.5 programmer to the hash board correctly and click Program to start programming.

self-recovery-PIC-kit3.5

best-PIC-kit3.5

Notice
