Antminer S19 S19pro T19 overclocking board
Antminer S19 S19pro T19 overclocking boardAntminer S19 S19pro T19 overclocking board
Ratings:
( 540 Reviews )

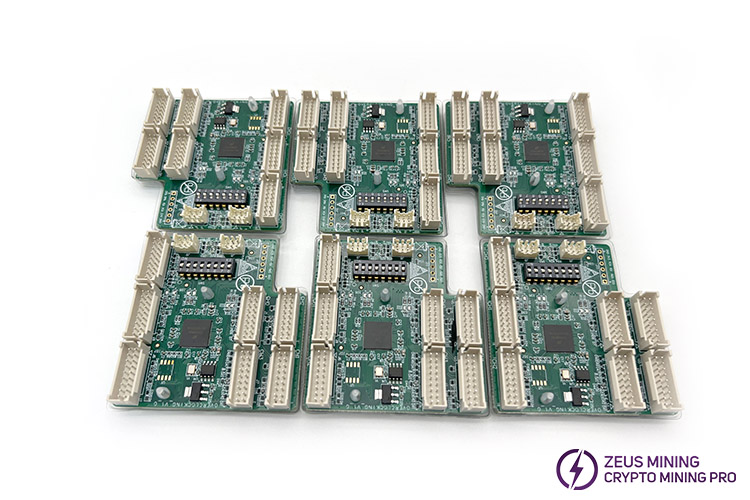

Antminer S19 S19pro T19 overclocking board
Function: Suitable for Antminer S19 S19pro T19 air cooling and oil cooling.
Unit Price: $ 88
MOQ: 1    Unit Weight: 0.3 KG    Availability: In Stock
- +
+ Add to cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Telegram : @zeusmining_presales
Download the BOM for one-stop delivery
Product description:

Antminer S19 T19 S19 PRO overclocking control board / Overclocking board for S19 T19 S19pro / Antminer S19 PRO overfrequency board / OC over clocking board

Overclocking control board is a device that allows Antminer T19, S19 and S19 Pro to run at higher frequencies to obtain higher hashrate. Compared with firmware overclocking, the S19 T19 S19pro overclocking control board belongs to hardware overclocking, which does less damage to miner, runs stably, and most importantly does not steal hashrate. Using the KINTEX-7 main control solution for overclocking special control board, the use of this product can increase the hash rate of the whole miner by 18%~30%, thereby bringing more benefits.

It is easy to install, stable in performance, and has multiple gear overclocking options to configure. It is especially suitable for working in environments with excellent heat dissipation conditions and sufficient overclocking margin, such as oil-cooled environments.

Note: This overclocking board can only be used for Antminer S19, T19, and S19 PRO, and cannot be used for other miner models.

The overclocked version is not suitable for BM1362 series ASIC chip miners.

Antminer Overclocking Board

How to properly use the Antminer overclocking control board to increase the hashrate of your miner? ZEUS MINING has compiled a detailed tutorial on the use of the Antminer S19 T19 S19 pro overclocking control board.

Ⅰ. Applicable conditions of overclocking control board

1. Model: Antminer T19, S19 and S19 Pro

2. The hardware version of the control board is: AMCB07_4X1_4F_S

3. Control board firmware version:

Firmware Compatibility

Firmware version

Firmware package

Antminer S19

Sun Apr 11 20:36:08 CTS 2021

Antminer-S19-release-202104112036.bmu

Tue Nov 16 19:22:45 CTS 2021

Antminer-S19-release-202111161922.bmu

Antminer S19 Pro

Fri Dec 11 11:23:xx CTS 2020

Antminer-S19-Pro-release-202012111123.bmu

Mon Apr 19 16:36:50 CTS 2021


Tue Nov 16 19:20:40 CTS 2021

Antminer-S19-Pro-release-202111161920.bmu

Antminer T19

Mon Apr 19 16:37:26 CTS 2021


Fri Dec 11 11:20:49 CTS 2020

Antminer-T19-release-202012111120.bmu

Tue Nov 16 20:55:57 CTS 2021

ANTMINER-T19-release-202111162055.BMU

4. Working temperature: -10℃~45℃

Notice:

Due to the limited testing environment, not all firmwares were verified. Some firmware versions that are no longer in the table may also be available. For unusable firmware versions please upgrade to a verified version.

Ⅱ. Overclocking model description

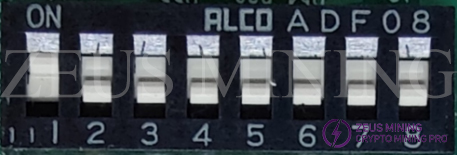

There is an 8 bit DIP switch on the overclocking board, as shown in the figure below, to configure overclocking options. When configuring the overclocking option, the Antminer must be powered off.

8 bit DIP switch

The corresponding relationship between overclocking options and DIP switches is shown in the table below. The factory default DIP switch configuration is: Overclocking 1


1

2

3

4

5-8

Overclocking increases hashrate

T19

S19

S19 Pro

Overclocking 1

OFF

OFF

OFF

OFF

Reverse(OFF)

3.5T

3.5T

5.3T

Overclocking 2

NO

OFF

OFF

OFF

7T

7T

10.6T

Overclocking 3

OFF

NO

OFF

OFF

10.5T

10.5T

15.9T

Overclocking 4

NO

NO

OFF

OFF

14T

14T

21.2T

Overclocking 5

OFF

OFF

NO

NO

17.5T

17.5T

Not recommended

Overclocking 6

NO

OFF

NO

OFF

21T

Not recommended

Overclocking 7

OFF

NO

NO

OFF

24.5T

Overclocking 8

NO

NO

NO

OFF

28T

Bypass

Don't Care

NO

Not overclocking is equivalent to not installing the overclocking kit

Notice:

1. Affected by various factors such as individual chip differences, network conditions, mining pools, etc., the actual computing power increased by overclocking will be different from the table data. The table data is for reference only.

2. With the increase of the overclocking gear, the power consumption of the miner will increase significantly. Please select the appropriate overclocking gear according to the actual heat dissipation capacity and power output capacity of the miner. The overclocking gear that exceeds the cooling capacity or power output capacity of the miner may cause permanent damage to the miner or even cause a fire accident.

Ⅲ. Materials required for overclocking:

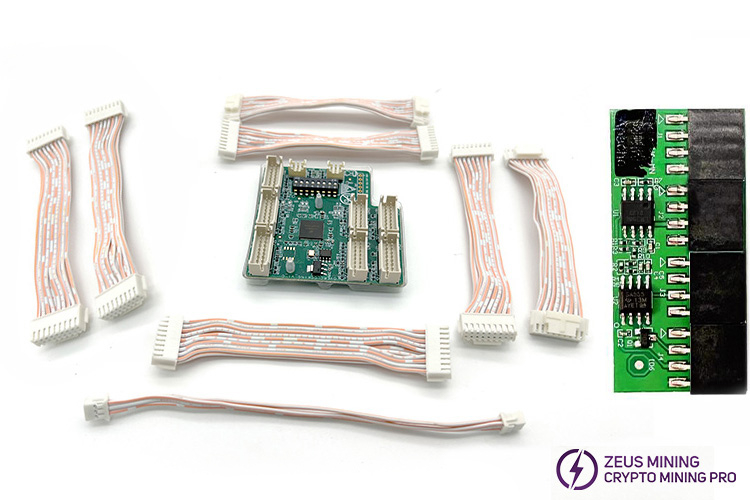

1. Antminer S19 overclocking control board*1

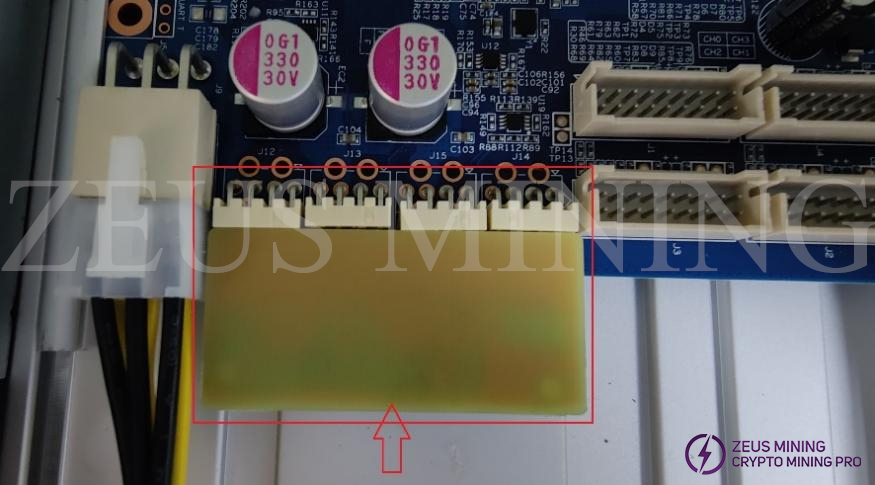

2. Fan simulation board*1 (It can be used in environments that do not require fans such as oil cooling)

3. Power voltage regulator cable*1

4. Hash board signal cable*7

It should be noted that the fan of the miner must work normally in an air-cooled environment, and the fan simulation board is prohibited.

Ⅳ. Installation Tutorial of Overclocking Board Kit

1. Remove the signal cables between the control board and the hash board. The original cables are no longer needed.

2. In oil cooling and other scenarios that do not require fans, disconnect the four fans, and insert the fan simulation board into the fan socket of the control board, as shown in the following figure:

Fan simulation board

Please note: If it is in an environment that requires the fans to keep running, such as air-cooling, please ensure that the fans are well connected, and they are forbidden to disconnect the fans and use the fan simulation board.

3. The signal cable of the hash board and the voltage regulator cable of the power supply are installed and connected according to the relationship in the following table:


Connection relationship

Hash board signal cable

Control board J3

Overclocking board J5

Control board J2

Overclocking board J3

Control board J1

Overclocking board J1

Control board J4

Overclocking board J7

Hash board*3

Overclocking board J2 J4 J6

Set of power supply voltage regulation cable

Control board J11

Overclocking board J8

Original power supply voltage regulation cable

PSU

Overclocking board J9

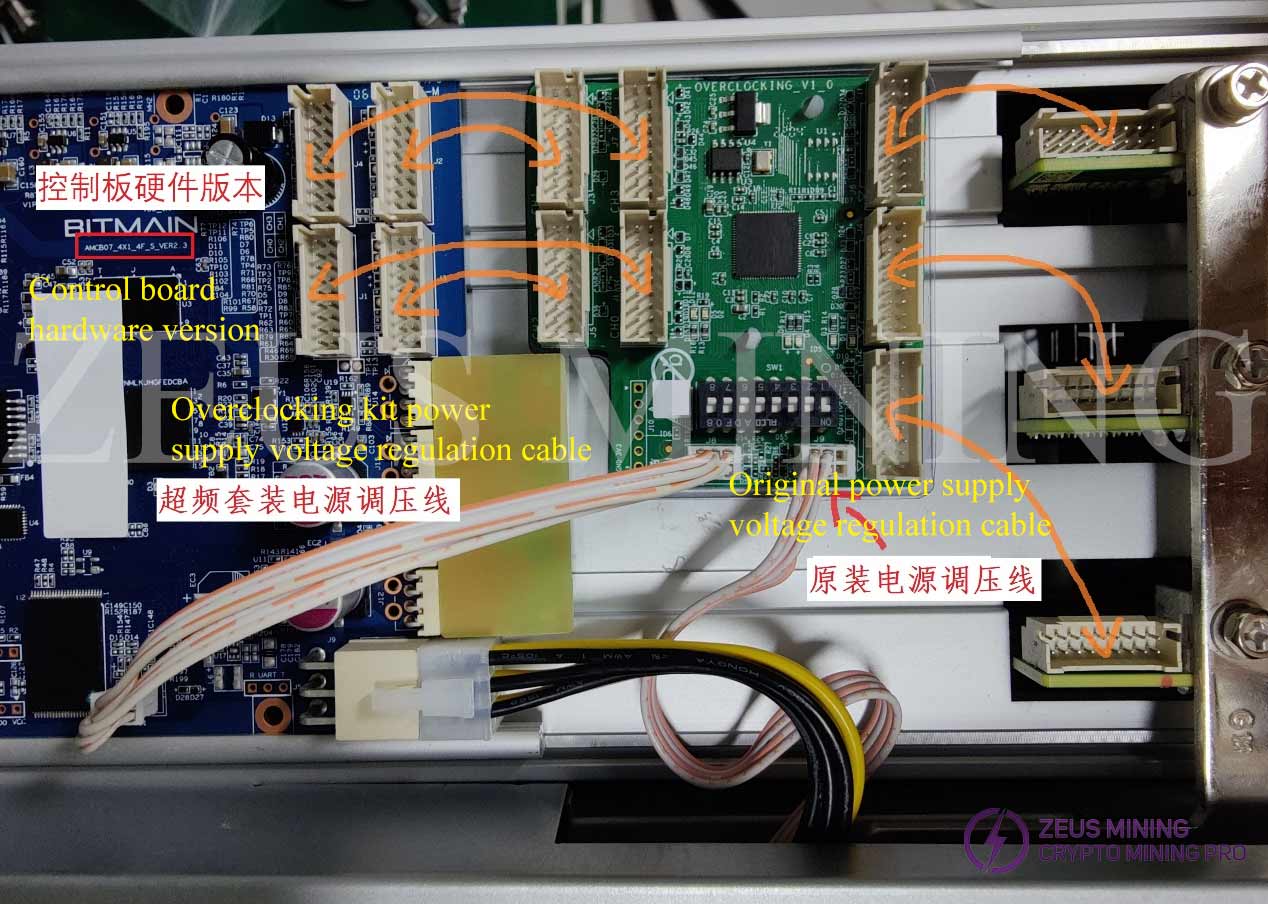

The following figure is a schematic diagram of installation and connection:

Overclocking board installation

4. According to the required overclocking gear, turn the DIP switch to the corresponding position.

Tips:

This product is divided into oil cooling and fan cooling, please choose the type you need.

1: S19PRO 110T, using oil cooling, can be overclocked to 150T+

2: S19PRO 110T, using fan cooling, can be overclocked to 130T+

3: S19 95T, using fan cooling, can be overclocked to 110T+

The project has been upgraded. The upgraded overclocking board can manually set the gear, which is convenient and better to control the device. At the same time, the upgraded version has a higher cost performance.

Antminer 19 series overclocking board

Measured data of overclocking boards for each model:

1) Measured data of S19-84T miner

Power consumption W / Hash rate T

bypass

Overclocking 1

Overclocking 2

Overclocking 3

Overclocking 4

Overclocking 5

Overclocking 6

Overclocking 7

Overclocking 8

25℃ - 30℃

3120

3160

3338

3532

3740

3964

4218

4514

4855

84.7

87.7

91

94.6

98

101.5

105

108.6

112

2) Measured data of S19-95T miner

Power consumption W / Hash rate T

bypass

Over clocking 1

Over clocking 2

Over clocking 3

Over clocking 4

Over clocking 5

25℃ - 30℃

3306

3532

3725

3950

4162

4393

95.4

99

102.5

106

109.7

113

3) Measured data of S19 Pro 110T miner

Power consumption W / Hash rate T

bypass

Over clocking 1

Over clocking 2

Over clocking 3

Over clocking 4

25℃ - 30℃

3327

3539

3794

4094

4398

110.7

115.5

120.7

125.8

132

The above test data are for reference only. Affected by different operating environments, individual differences among miners, etc., miners' actual operating data may differ from the above test data. The actual operation data shall prevail.

Notice
