TPH1R403NL MOS
Ratings:
( 900 Reviews )

TPH1R403NL MOS


Function: Antminer S19j S19jpro S19xp hash board replacement MOS chip.
Unit Price: $ 1.3
MOQ: 10　　Unit Weight: 0.001 KG　　Availability: In Stock
- +
Subtotal: $ 13
+ Add to cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:


More

Product description

TPH1R403NL Silicon N-channel MOS

The TPH1R403NL N-ch MOS field effect transistor is used for the repair and replacement of the MOSFET chip of the hash board.

TPH1R403NL MOS chip function and fault symptoms:

The TPH1R403NL is an N-channel high-power MOSFET with a 30V withstand voltage, a maximum current of 150A, and ultra-low on-resistance in the milliohm range. It is used in the core power supply circuit of hash boards such as Antminer S19j, S19jpro, and S19xp, responsible for voltage domain switching and high-current regulated output. It works in conjunction with a buck circuit to stably provide the chip core voltage. It effectively solves faults such as hash board partition power supply short circuits, ASIC chip recognition failures, hash rate drops, hash board link loss/offline, and full-load restarts.

TPH1R403NL N-channel power MOSFET features:

1. High-speed switching

2. Small gate charge: QSW = 10.6 nC (typ.)

3. Low drain-source on-resistance: RDS(ON) = 1.7 mΩ (typ.) (VGS = 4.5 V)

4. Low leakage current: IDSS = 10 μA (max) (VDS = 30 V)

5. Enhancement mode: Vth = 1.3 to 2.3 V (VDS = 10 V, ID = 0.5 mA)

TPH1R403NL low-resistance MOS application:

High efficiency DC-DC converters

Switching voltage regulators

Product display

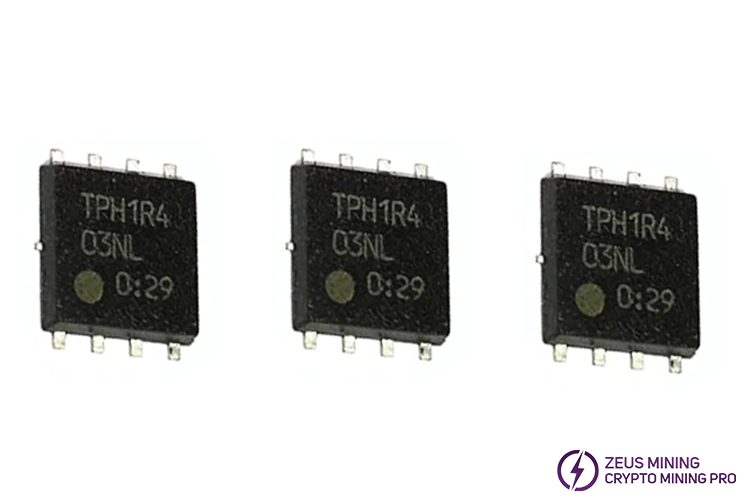

TPH1R403NL MOS chip

Related products:

MOS Chip TPHR9003NL

PW180N65WS

VS3603GPMT
