| Unit Price: | $ 0.85 |

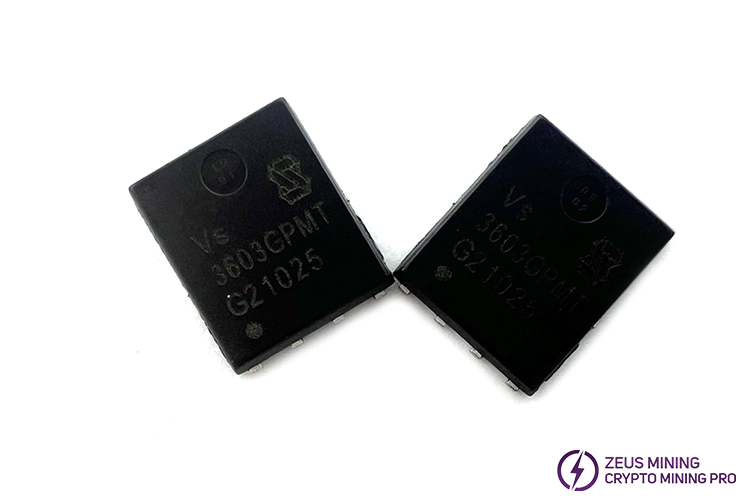

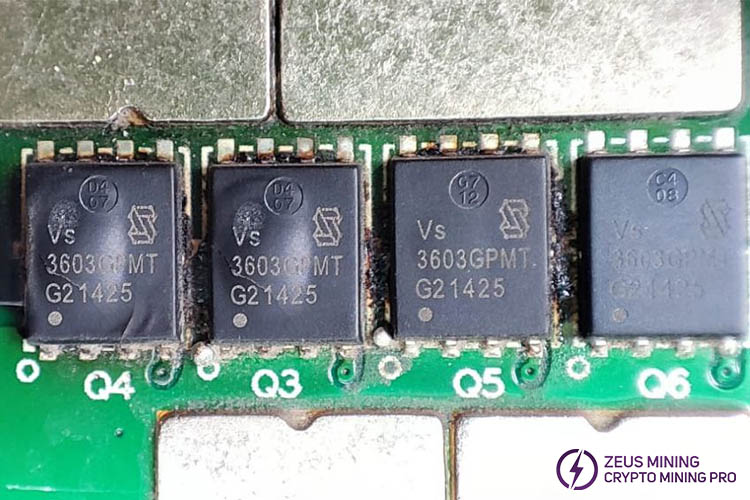

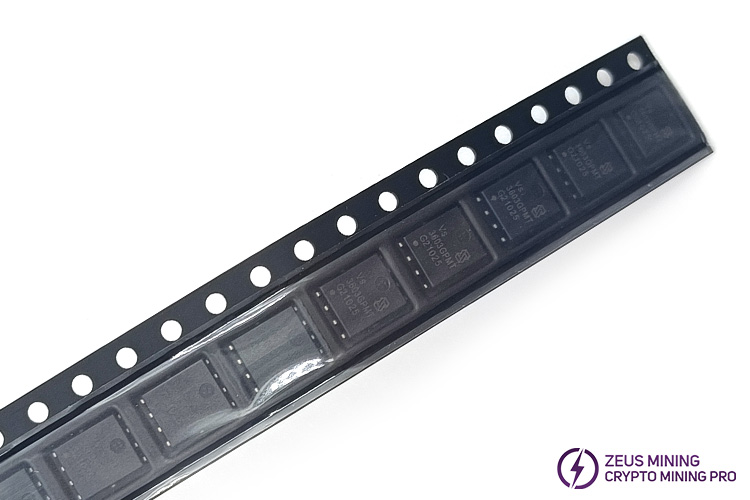

The VS3603GPMT is a high-power N-channel step-down MOSFET. It has a 30V withstand voltage, a 205A rated current, and is packaged in a PDFN5x6 package. It is widely used in the step-down power supply circuits of the Antminer S19 series hash boards, serving as a core power device for stable partitioned power supply and low-heat operation under full load.
When the drain-source of the VS3603GPMT MOS transistor breaks down and short-circuits, the corresponding power supply branch voltage drops and fluctuates violently. This can lead to chip recognition failure, a sharp drop in the overall hash rate, normal recognition under no load but continuous frequency reduction under full load, random restarts of the miner, frequent overheating under full load, intermittent hash rate fluctuations, and intermittent offline chain breaks in the hash board. With prolonged aging, it will gradually deteriorate into a hard short circuit and fail.
~ Enhancement mode
~ Very low on-resistance
~ VitoMOS® Ⅱ Technology
~ Fast Switching and High-efficiency
~ 100% Avalanche test
Type Designator | VS3603GPMT |
Marking Code | 3603GPMT |
Type of Transistor | MOSFET |
Type of Control Channel | N -Channel |
Maximum Power Dissipation (Pd) | 89W |
Maximum Drain-Source Voltage |Vds| | 30V |
Maximum Gate-Source Voltage |Vgs| | 20V |
Maximum Gate-Threshold Voltage |Vgs(th)| | 2.2V |
Maximum Drain Current |Id| | 200A |
Maximum Junction Temperature (Tj) | 150°C |
Total Gate Charge (Qg) | 102nC |
Rise Time (tr) | 83nS |
Drain-Source Capacitance (Cd) | 5170pF |
Maximum Drain-Source On-State Resistance (Rds) | 0.0021 Ohm |
