| Unit Price: | $ 0.47 |

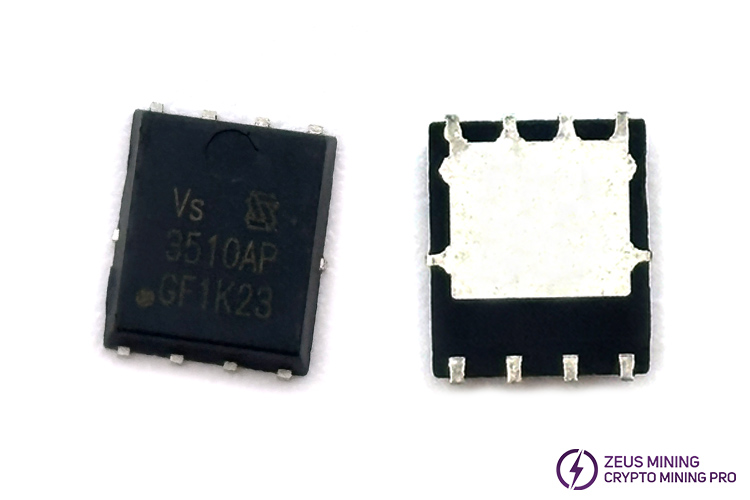

Vs3510AP P-Channel Advanced Power MOSFET for Antminer D7 L7 hash board
The VS3510AP transistor is a P-channel MOS FET with -5V logic level control. Low on-resistance RDS(on) @ VGS is -4.5V with enhanced mode and fast switching capability. Adopt PDFN 5x6 package.
The VS3510AP is a high-current N-channel step-down MOSFET for Antminer D7 L7 hash boards. It has a withstand voltage of 30V and a rated current of 45A. It is responsible for the high-current regulated power supply and on/off control of various groups of the ASIC chip, and performs zone current limiting and power-on buffering functions. When this device malfunctions, it can cause localized abnormal overheating of the hash board, increased branch supply voltage drop, gradual decay of the hash rate, frequent hardware fault reports, and even slight leakage can cause power supply voltage fluctuations and intermittent offline disconnection of the hash board.
Drain-Source breakdown voltage | -30V |
Diode continuous forward current | -45A |
Continuous drain current @VGS=-10V (TC=25°C) | -45A |
Pulse drain current tested | -180A |
Avalanche energy, single pulsed | 56mJ |
Maximum power dissipation | 37W |
Gate-Source voltage | ±20V |
Storage and operating temperature range | -55 to 150°C |
