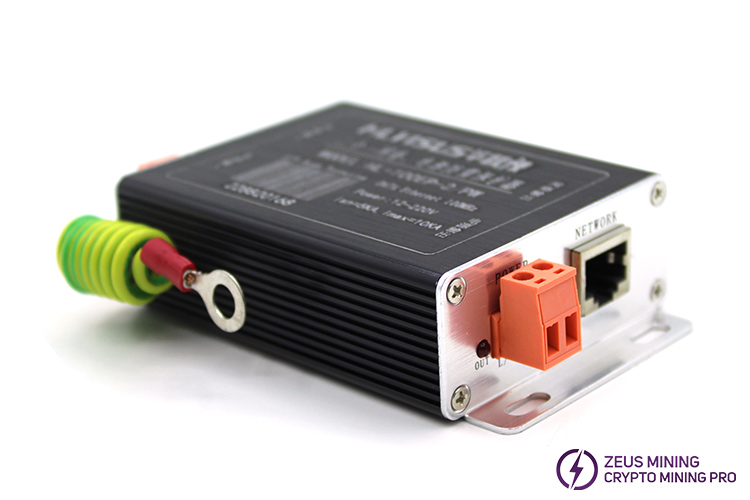

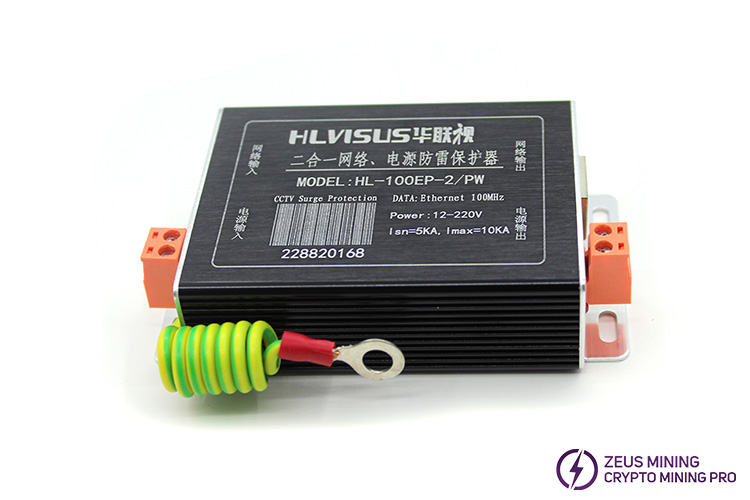

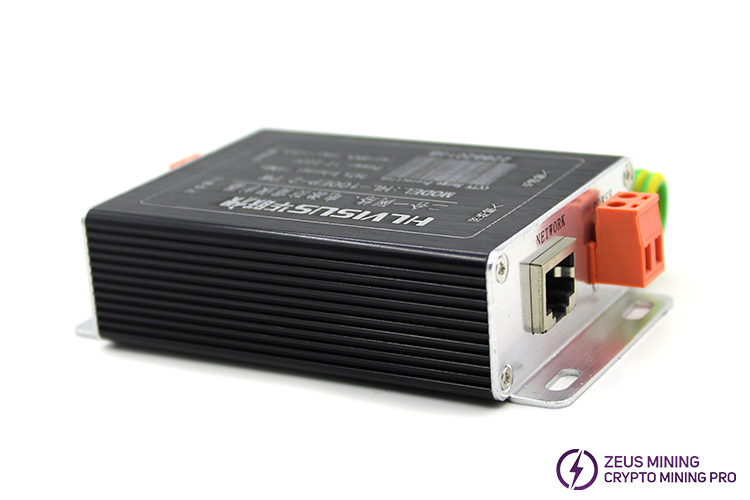

Network cable lightning arrester
Network lightning protection device Surveillance camera network cable power supply two-in-one signal surge protection lightning arrester, lightning induction, protection function, only to protect the safety of equipment. This product is anti-inductive lightning surge protection, which reduces the probability of the protected product being burned out by the surge caused by lightning.
Feature:
1. Instant lightning protection to protect equipment safety;
2. Inductive lightning protection, large flow and short time;
3. Check the quality level by level, try to avoid every hidden danger;
4. Intelligent recovery function, when the induced lightning voltage exceeds 5V, it will automatically disconnect. The two protections (network signal protection and power protection) are safer;
5. Wider range of voltage stabilization, high transmission, low loss, the voltage supports the range of 12-220V, the input and output load is less than 50W;
6. Thermal fuse to improve safety. When the line temperature and the inside of the lightning arrester are close to a certain value, it will automatically disconnect to prevent burnout;
7. Using ESD technology, the transmission distance is increased, the capacitance value is reduced, the attenuation is reduced, and the transmission distance is increased to 100m, and the ordinary transmission in the city is within 60m;
8. Wide range of use and diversification, applied to network interface equipment to meet your security needs;
Product parameters:
| Model | HL-100EP-2/PW |
| Function | Network/Power |
| SPD port | two ports |
| SPD category | combination type |
| Power surge protection features | |
| Rated voltage Un | 220V AC |
| Imax continuous operating voltage Un | 275V AC |
| Protection level Up (8/20us) | 1150V AC |
| Rated load current IL | 1A |
| Response time | ≤25ns |
| Nominal discharge current In (8/20us) | 5kA |
| Imax discharge current (8/20us) | 10kA |
| Network signal surge protection characteristics | |
| Continuous operating voltage Un | 8V |
| Protection level Upx-x (1.2/50us) | 150V |
| Nominal discharge current In (8/20us) | 1.5kA |
| Nominal discharge current Imax (8/20us) | 3kA |
| Transmission characteristics | 100Mbps |
| Response time | ≤1ns |
| Insertion loss | ≤0.5dB |
