Headband Magnifier
Headband Magnifier
Headband Magnifier
1 pcs $ 22

MOQ: 1 pcs　Weight: 2 KG

+ Add To Cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Product description:

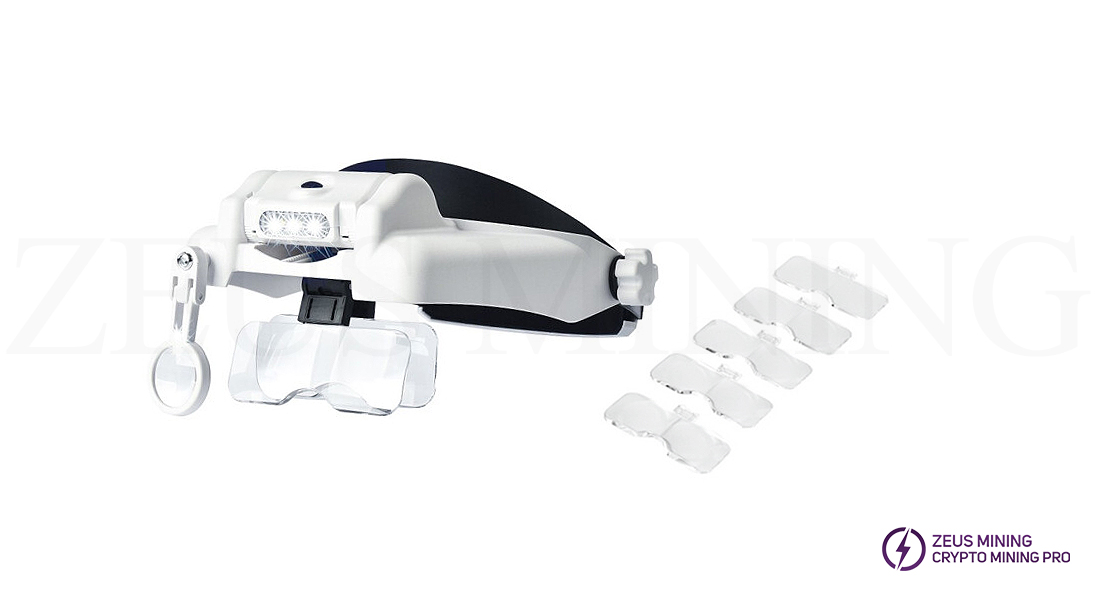

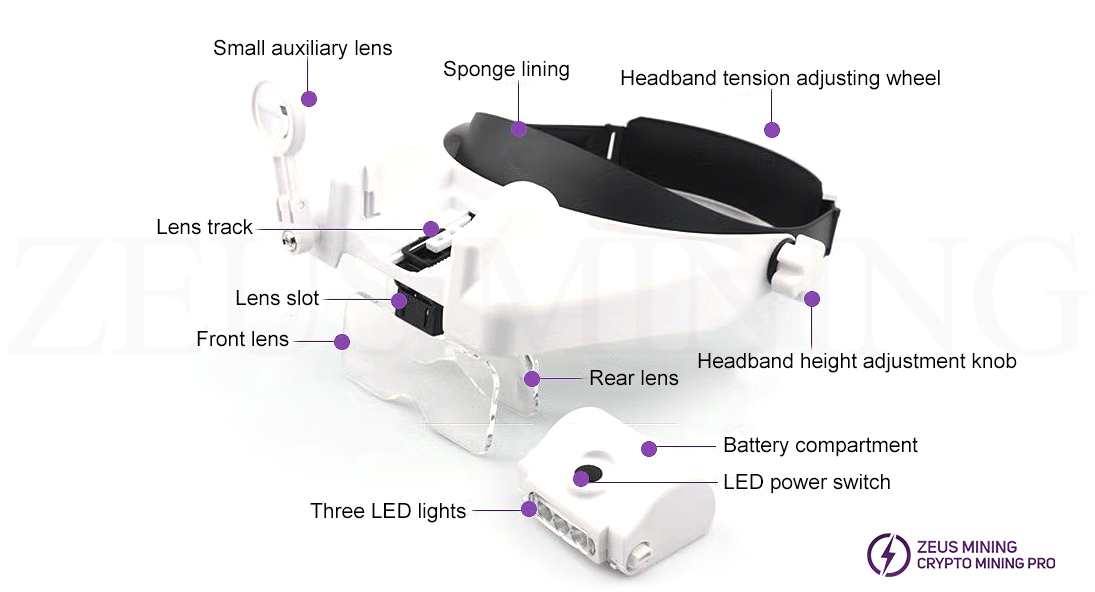

Head-mounted maintenance magnifier, multiple sets of lenses, multiple magnifications, suitable for watch, mechanical and electronic maintenance. Three-mirror superposition combination, 1-14 times magnification can be changed at will. Wrapped in breathable knitted fabric, soft padding, comfortable to wear; 3 white LEDs, adjustable angle; front and rear movable lens design, users with different eyesight can adjust the lens group front and back to focus clearly.

headband magnifier with light

Headband Magnifier application

NameHead-mounted multifunctional magnifier
Lens5 optical lenses + 8 times small secondary lens
Magnification1-14 times of 31 combinations
Headlamp3 white LED headlights
Head circumference50~60cm head circumference can be worn
BatteryPowered by 3 AA batteries
UseElectronics, mechanical maintenance, reading, etc.

With LED lighting

professional headband magnifier

Headband Magnifier price

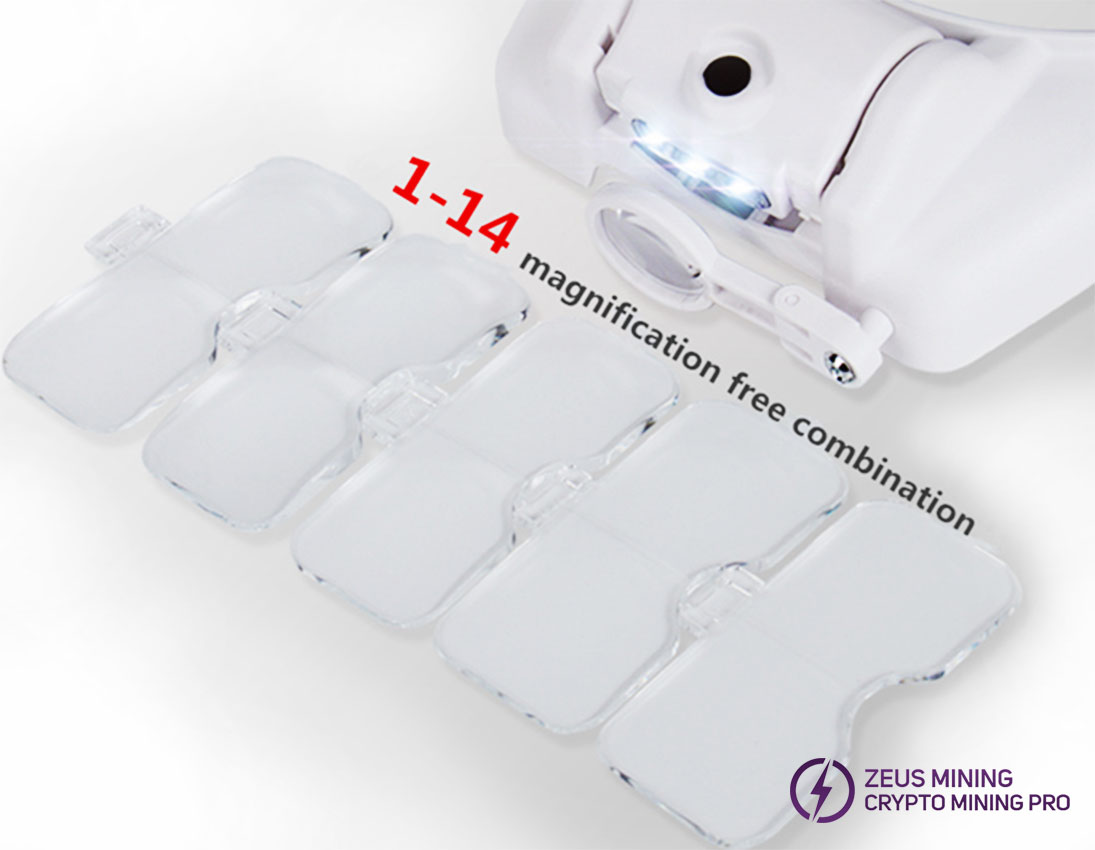

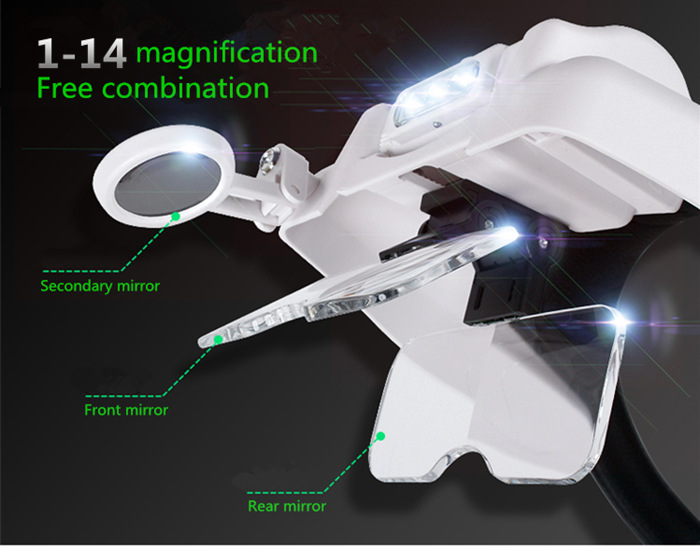

Multiple lenses can be freely combined to achieve 1-14 magnification

Ultra-lightweight, only 300g

headband magnifying visor

Magnification description

Lens combination multiple focal length comparison table
Lens typeMultipleFocal length
Main lens1x500mm

1.5x330mm

2x250mm

2.5x200mm

3.5x142mm
Small secondary lens8x62.5mm
Lens combination (two main lenses)
Lens multipleCombination multipleCombination focus
1x+1.5x2.5x200mm
1x+2x3x165mm
1x+2.5x3.5x142mm
1x+3.5x4.5x110mm
1.5x+2x3.5x142mm
1.5x+2.5x4x125mm
1.5x+3.5x5x100mm
2x+2.5x4.5x110mm
2x+3.5x5.5x90mm
2.5x+3.5x6x83mm
Lens combination (one main lens + small secondary lens)
1x+8x9x55mm
1.5x+8x9.5x52mm
2x+8x10x50mm
2.5x+8x10.5x47mm
3.5x+8x11.5x43mm
Lens combination (two main lenses + small secondary lens)
1x+1.5x+8x10.5x47mm
1x+2x+8x11x45mm
1x+2.5x+8x11.5x43mm
1x+3.5x+8x12.5x40mm
1.5x+2x+8x11.5x43mm
1.5x+2.5x+8x12x41.5mm
1.5x+3.5x+8x13x38mm
2x+2.5x+8x12.5x40mm
2x+3.5x+8x13.5x37mm
2.5x+3.5x+8x14x35mm

Headband Magnifier with LED
