Rectifier chip 10A1000V

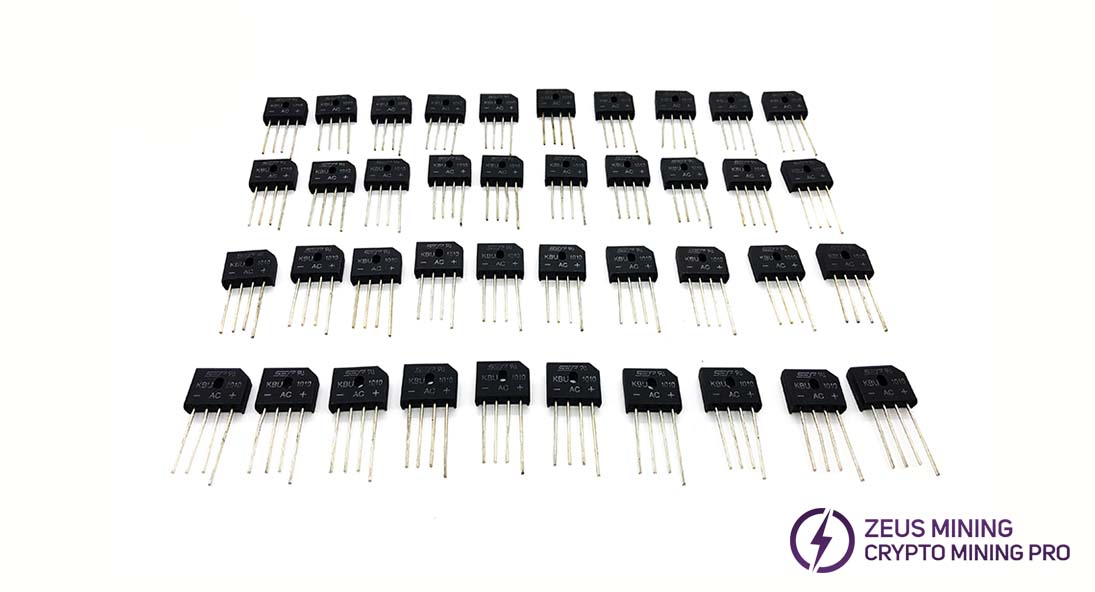

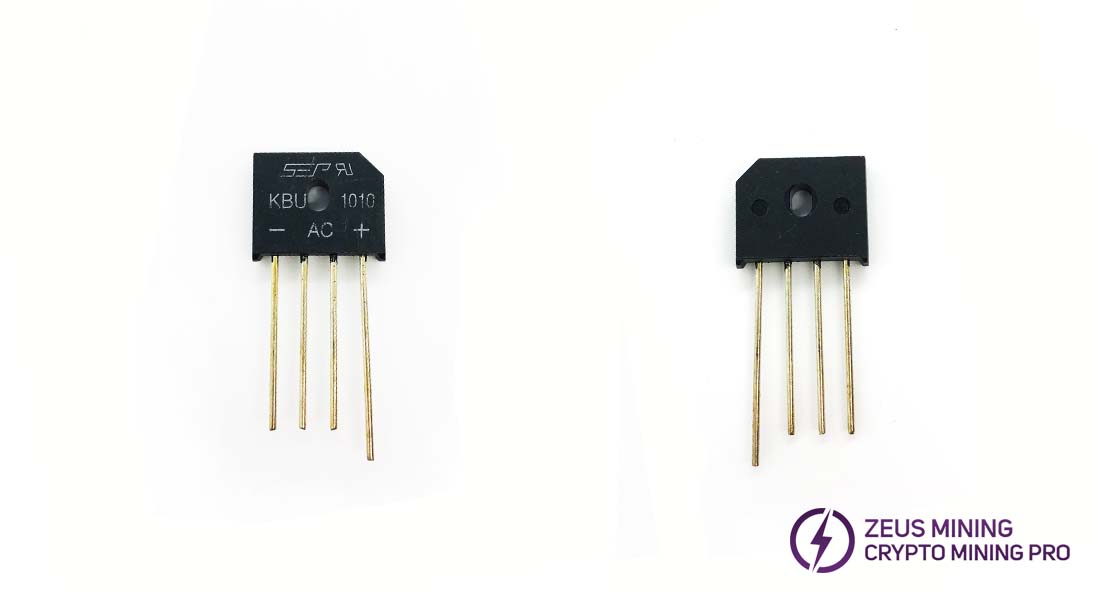

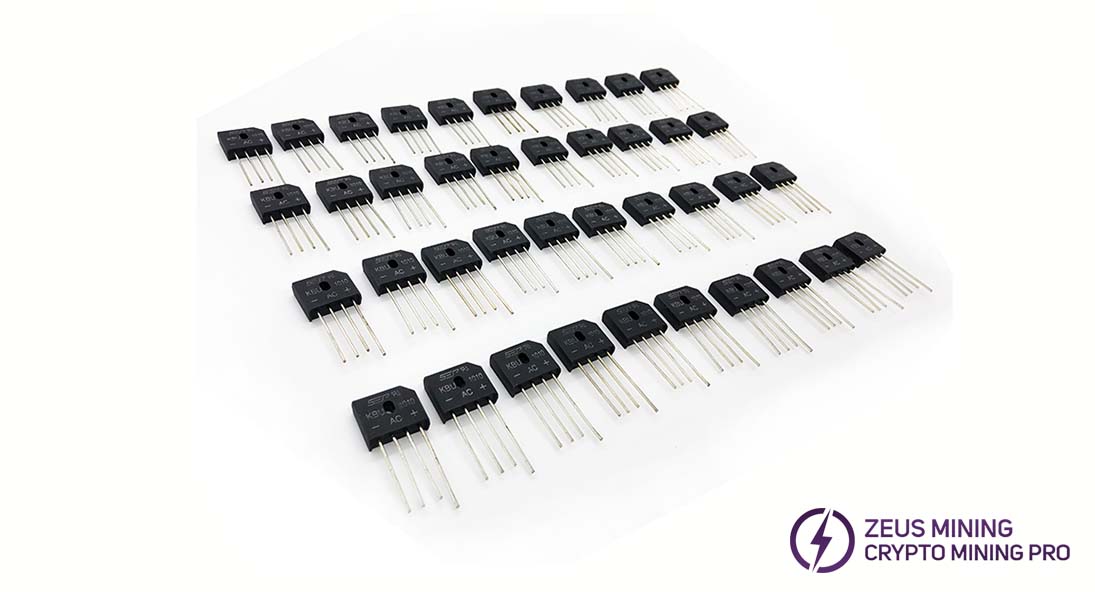

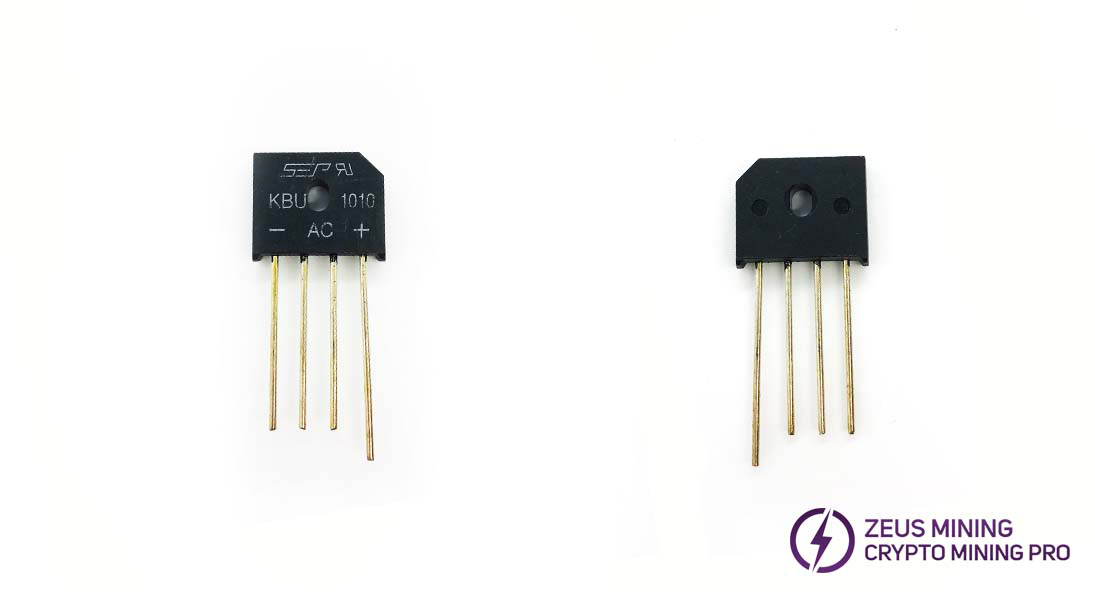

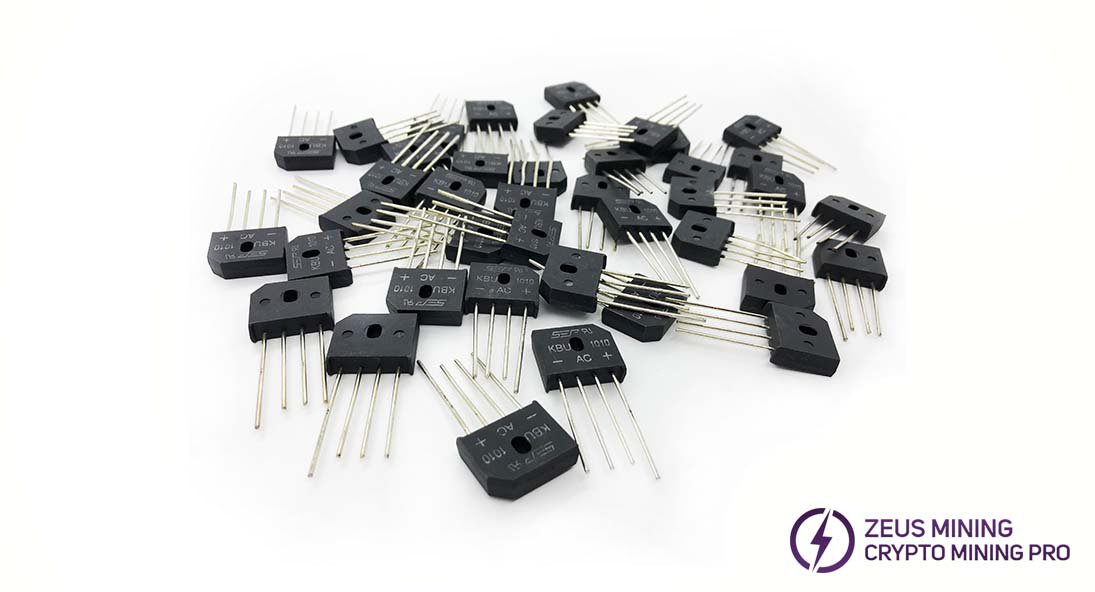

Welcome to choose our high-quality product, KBU 1010 Rectifier bridge 1000V 10A, which has good material, fine workmanship, durability and long life, easy installation, simple operation, and its application is also very wide.
|Repetitive peak reverse voltage||1000V|
|Working peak reverse voltage||1000V|
|DC blocking voltage||1000V|
|Average rectified output [email protected]=100℃||10A|
|Non-repetitive peak forward surge current 8.3ms single sine half-wave superimposed rated load (JEDEC method)||300A|
|Forward voltage @IF=5.0A||1.0V|
Reverse peak current @TC=25℃=10uA
Rated fusing (t＜8.3ms)
|Typical thermal resistance||8.0K/W|
|Operating and storage temperature range||-65℃~+150℃|
|Weight||8 grams (approximately)|
1. Low forward pressure drop;
2. High current capability;
3. High reliability;
4. High surge current capability;
5. Ideal printed circuit board;
