IXFH46N65X2

Product description

IXFH46N65X2 650V 46A MOSFET transistor in a TO-247 package with low gate drive requirements for robust device performance and reliable operation.

The IXFH46N65X2 is a 650V/46A N-channel high-voltage power MOSFET. In Antminer and Whatsminer high-power mining rig power supplies, it is mainly used as a PFC boost diode and LLC half-bridge primary-side switch, serving as a core component for high-voltage power conversion and handling high-frequency switching and energy transfer on the 380V bus.

When the IXFH46N65X2 power MOSFET experiences breakdown or gate leakage, the mining rig power supply may experience fuse blowout, no output, repeated start-stop cycles, rapid overheating of the heatsink, low no-load voltage, and immediate voltage drop upon connection to the hash board, accompanied by high-frequency whistling. Under full load, it may briefly overheat and shut down. Unstable bus voltage can cause fluctuating hash rate and frequent restarts. In severe cases, it can burn out the paired MOSFET, drive resistor, drive chip, and even the downstream hash board, resulting in carbonized PCB traces and a burnt odor.

This is a brand-new original product, and the price may be more expensive than the substitute product, but the quality is guaranteed; welcome to buy.

IXFH46N65X2 Power MOSFET parameters:

Drain to source voltage (V_dss): 650V

Current - continuous drain (I_d) @ 25°C: 46A (Tc)

Drive voltage (Max R_{ds On}, Min R_{ds On}): 10V

R_{ds on (Max)} @ I_d, V_gs: 76mOhm @ 23A, 10V

V_{gs(th) (Max)} @ I_d: 5.5V @ 4mA

Gate charge (Q_g) (Max) @ V_gs: 75nC @ 10V

V_gs (Max): ±30V

Input capacitance (Ciss) (Max) @ V_ds: 4810pF @ 25V

Power dissipation (Max): 660W (T_c)

Operating temperature: -55°C ~ 150°C (T_J)

IXFH46N65X2 650V 46A features:

With TO-247 packaging

Low R_DS(ON) and Q_G

Avalanche rated

Low package inductance

IXFH46N65X2 PFC boost MOS advantages:

High power density

Easy to mount

Space savings

IXFH46N65X2 applications:

Switch-mode and resonant-mode power supplies

DC-DC converters

PFC circuits

AC and DC motor drives

Robotics and servo controls

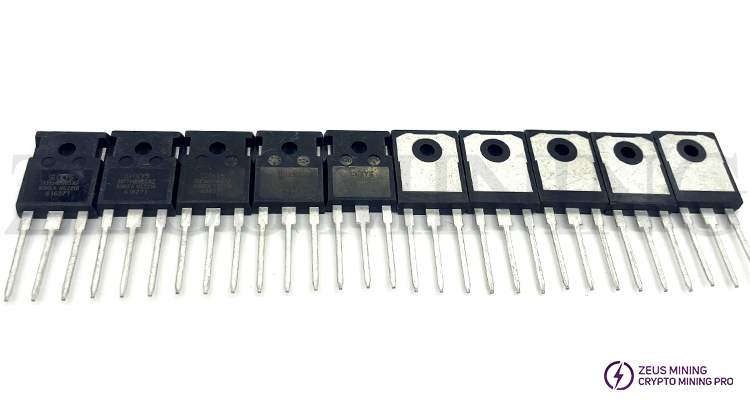

Product display
