| Unit Price: | $ 0.31 |

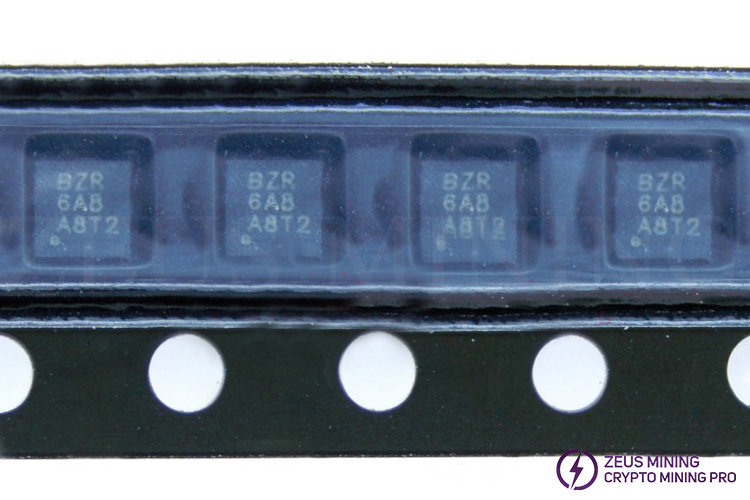

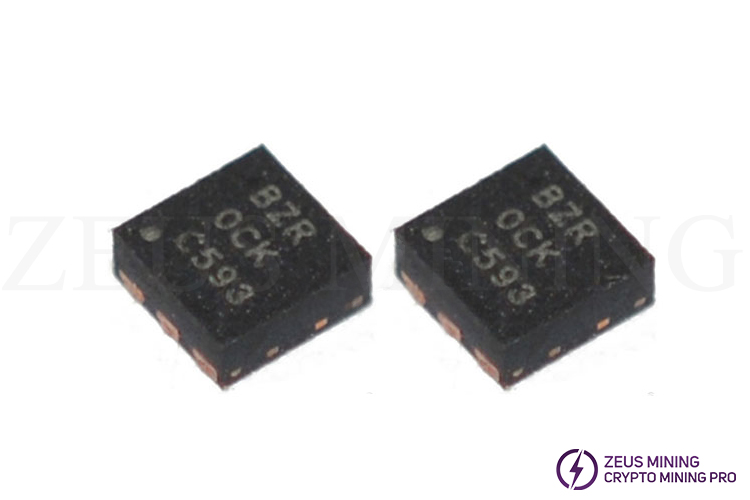

TPS61161DRVR is a white LED driver with digital and PWM brightness control in a 2*2mm WSON package, located on the Antminer L3 hash board, with an integrated switch FET with a rated voltage of 40V, which is a boost converter for driving series LEDs device. The boost converter operates at a fixed switching frequency of 600kHz to reduce output ripple, improve conversion efficiency and allow the use of small external components.
During operation, the LED current can be controlled via the CTRL pin using a single-wire digital interface (EasyScale protocol). Alternatively, a pulse-width modulated (PWM) signal can be applied to the CTRL pin, with the duty cycle determining the feedback reference voltage. In digital or PWM mode, the TPS61161DRVR does not burst the LED current; therefore, they do not generate audible noise on the output capacitor. Furthermore, for maximum protection, the device features integrated open-LED protection to prevent the output voltage from exceeding the absolute maximum rating of the device during an open-LED condition.
Product parameters:
Vin (Min) (V): 2.7
Vin (Max) (V): 18
Vout (Min) (V): 2.7
Vout (Max) (V): 38
Type: Inductive
Switching frequency (Max) (kHz): 600
LED current per channel (mA): 20
Peak efficiency (%): 90
Topology: Boost
Features: EasyScale 1-Wire Interface, Load Disconnect During Shutdown
Operating temperature range (℃): -40 to 85
Product features:
• 2.7V to 18V input voltage range
• 38V Open LED protection
• 200mV voltage reference with ±2% accuracy
• Flexible digital and PWM brightness control
• Built-in soft start
• Up to 90% efficiency
