| Unit Price: | $ 0.2 |
Antminer S21PRO S21 S21IMM HS3 S19XP S19Kpro S19XP Hydro L9 S19jpro+ hash board 0.8V LDO replacement chip

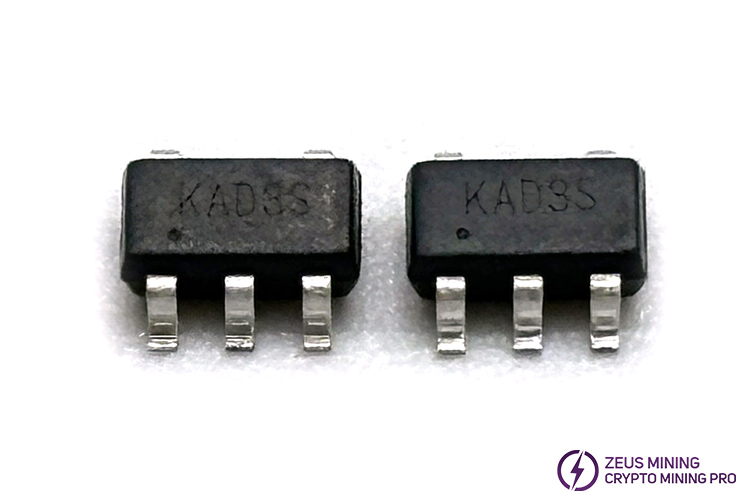

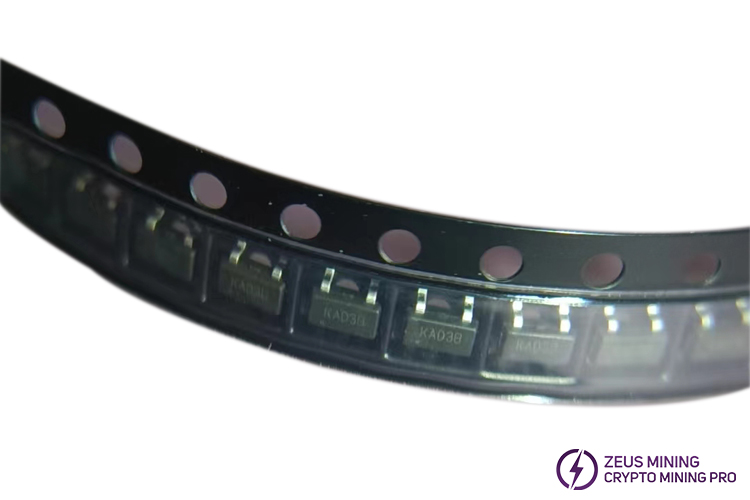

Welcome to buy the LDO chip marked KAD on the hashboard, and its voltage is 0.8V. With SOT23-5 package. And the DIO7910A08ST5 KAD** chip is compatible with Antminer S21PRO, S21, S21 IMM, L9, HS3, S19Kpro, S19XP, S19XP Hydro, S19jpro+, T21, etc. hash boards.
The DIO7910A08ST5 is a high-precision, low-noise, high-speed, high-PSRR, low-dropout CMOS linear regulator with high ripple rejection. In addition, the chip features a foldback maximum output current that serves as both short-circuit protection and an output current limiter.
The DIO7910A08ST5 LDO regulator, with a fixed output of 0.8V, provides a stable bias voltage for the ASIC chip's core reference circuit, maintaining the ASIC chip's normal oscillation and operation. It is a key component for a stable output hash rate of the link. When the DIO7910A08ST5 chip malfunctions, it will directly pull down the 0.8V power, causing the entire link to fail to start, the single-chain hash rate to be reset to zero, and numerous ASIC chip error flags to appear in the backstage.
• 1.6V to 5.5V operating input voltage range
• 0.8V output voltage range
• 300mA output current
• Ultra-low quiescent current: typical. 25 microamps
• Dropout voltage: 170mV @ IOUT=300mA
• PSRR: 75dB @ 1kHz, IOUT = 20mA
• Output voltage tolerance: ±1%
• Stable with 1 µF ceramic capacitor
• Thermal overload protection
• Short circuit protection
• Fast output discharge
Related products:
SGM2036-0.8YN5G/TR 0.8V LDO SS7
SGM2036 ADJYN5G/TR SQ7 LDO 0.8V
