| Unit Price: | $ 0.35 |

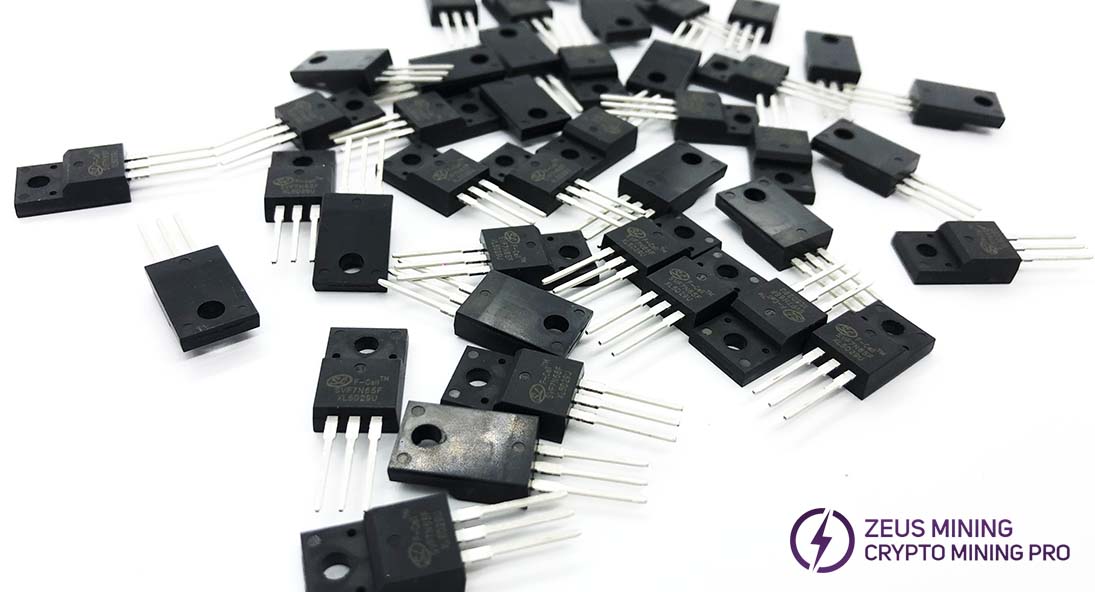

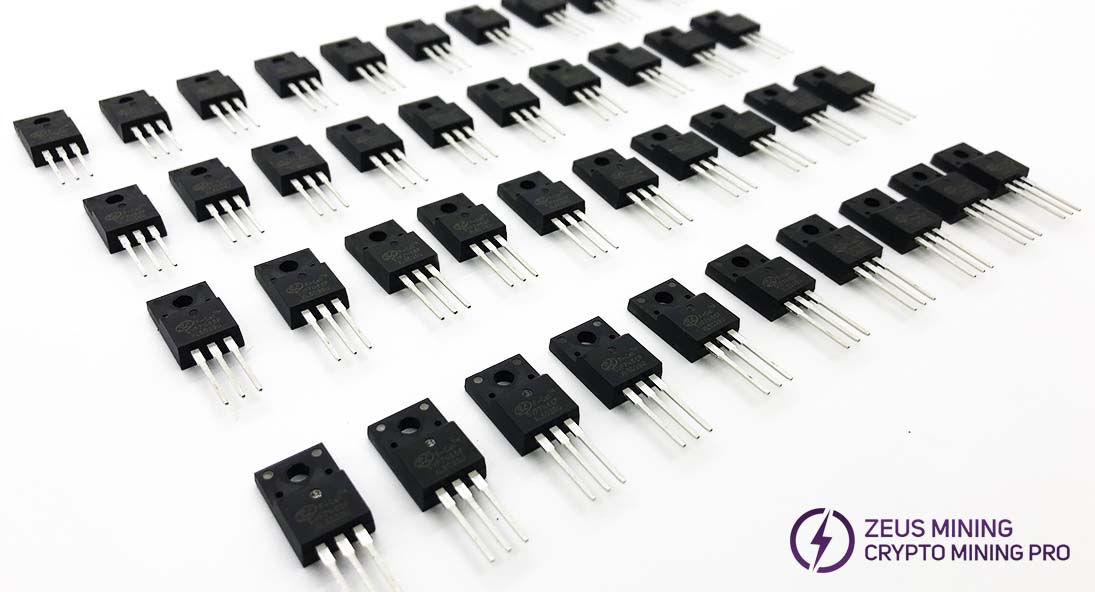

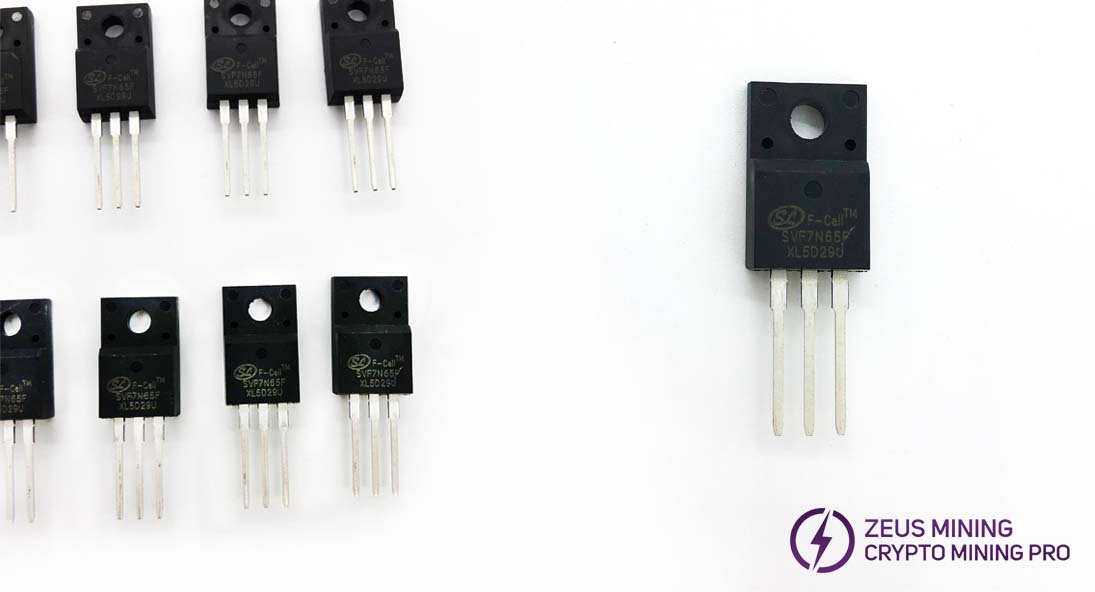

SVF7N65F MOS FET for APW17 APW12 PSU
The SVF7N65F SI7N65F Field effect transistor enhancement mode high voltage power MOS field effect transistor is manufactured using planar high voltage VAMOS process technology. Advanced technology and strip-shaped cell design structure make this product have lower on-resistance, superior switching performance and good avalanche breakdown tolerance.
The SVF7N65F is a 650V 7A high-voltage MOSFET used as the PFC boost switch in Antminer APW12/APW17 power supplies, ensuring stable hashrate output under full load for S21 and S19 series miners.
When this component fails, the power supply will directly blow the AC fuse, the power indicator light will remain constantly on, there will be no main 12V output, the miner will not power on, hashrate will fluctuate, and the miner will frequently restart. In severe cases, it can also burn out the PFC driver and boost diode, and the high-voltage PCB will turn black and emit a burnt smell.
This product can be widely used in AC-DC switching power supply, DC-DC power converter, high-voltage H-bridge PWM motor drive.
This is a brand-new original product, and the price may be more expensive than the substitute product, but the quality is guaranteed; welcome to buy!
7A, 650V, RDS(on)
Low gate charge
Low reverse transfer capacitance
Fast switching speed
Improved dv/dt capability
Related products:
Antminer APW17 1215a Power Supply for S21 S19jXP KS5 KS5pro
