| Unit Price: | $ 82 |

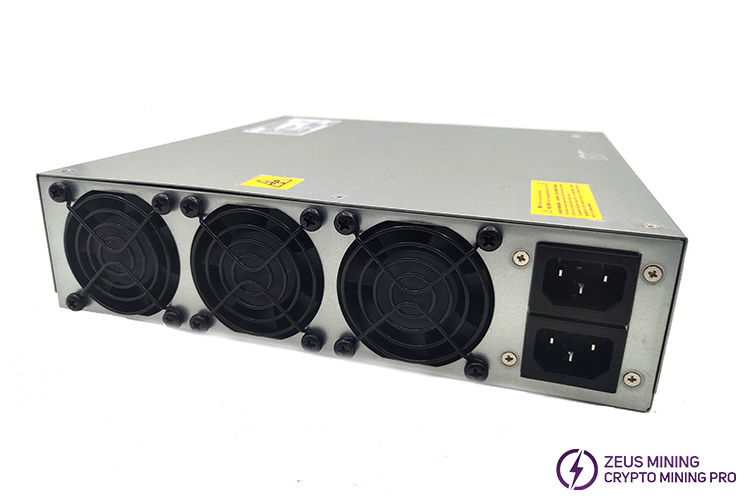

APW121215, this power supply is currently widely used. Most of the 19 series models use this power supply. The 4-digit number 1215 behind APW12 means that the power supply's output voltage is 12-15V. This power supply has many versions, including a, b, c, d, e, and f.
Brand new original, six months warranty, welcome to buy!
The most commonly applicable APW12 1215d power supply models include S19i, S19XP, S19pro, S19j Pro, S19j Pro+, etc.
The general situation is as follows:
APW121215 a /b /c versions are interoperable (no voltage feedback).
APW121215 d /e /f versions are interchangeable (with voltage feedback).
APW121215 d /e /f version can be used instead of part a /b /c by upgrading the firmware, but the a /b /c version cannot be used instead of d /e /f.
Parameter:
Model: APW121215
Version: d
Input: (200-240V 50/60Hz 10A) X 2
Output 1: 12-15V 208A MAX
Output 2: 12V 18A MAX
| APW12 | ||
| OUT1 | DC Voltage | 12V - 15V |
| Rated Current (220V input) | 208A (when 15V can upto 233A ~ 240A) | |
| Ripple & Noise | <1% | |
| Line Regulation | <1% | |
| Load Regulation | <1% | |
| Setup Time | <2S | |
| Short Circuit Protection | >10mS | |
| OUT2 | DC Voltage | 12V |
| Rated Current (220V input) | 18A | |
| Ripple & Noise | <1% | |
| Voltage Accuracy | 12.2V - 12.4V | |
| Line Regulation | <1% | |
| Load Regulation | <1% | |
| Setup Time | <2S | |
| Short Circuit Protection | >10mS | |
| Input | Voltage Range | 200-240V AC |
| Frequency Range | 47-63Hz | |
| Power Factor | >0.99 (full load) | |
| Leakage Current | <1.5mA (220V 50Hz) | |
| Protection | Low-voltage Input | 80 - 89V AC |
| Output Short Circuit | Yes | |
| Overheat Protection | Yes | |
| Over-current Output | 291A - 350A (protection value varies under different voltage) | |
| Environment | Operating Temperature | -20 - 45℃ |
| Operating Humidity | 20% - 90%RH (non-condensing) | |
| Altitude | < 2000m | |
| Structure | Dimensions | 254.6mm * 251.6mm * 63mm |
| Net Weight | 3.6KG | |
| Cooling System | forced‐air cooling | |
| Noise | 45dBA | |
