| Unit Price: | $ 369 |

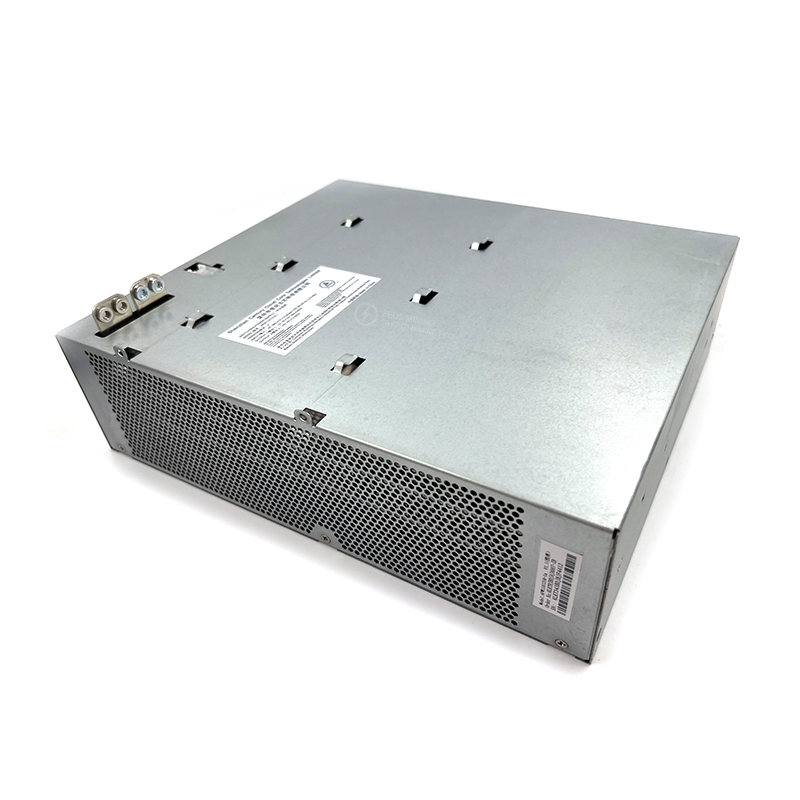

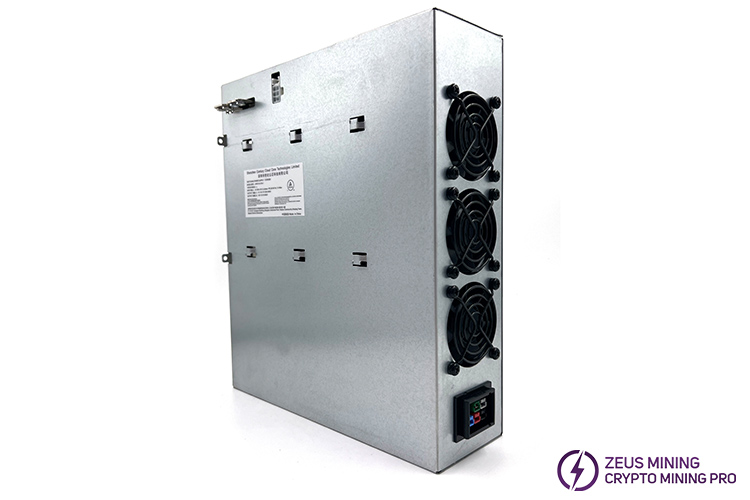

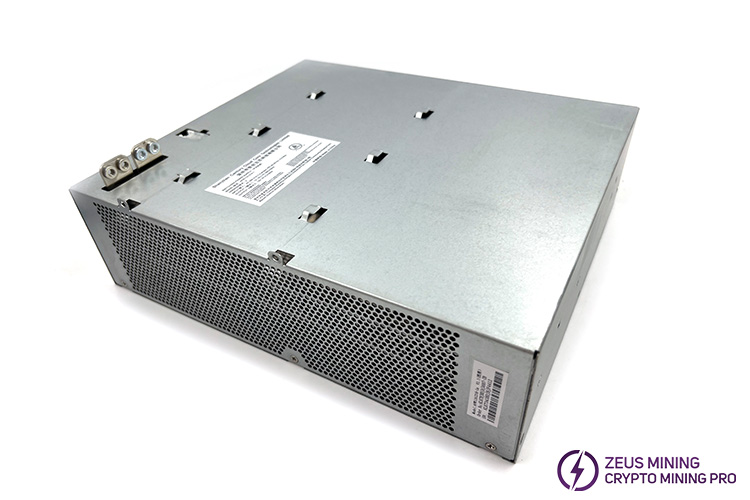

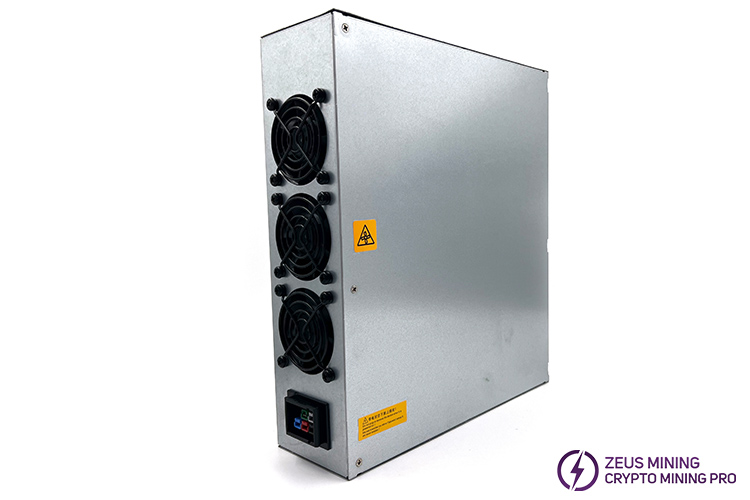

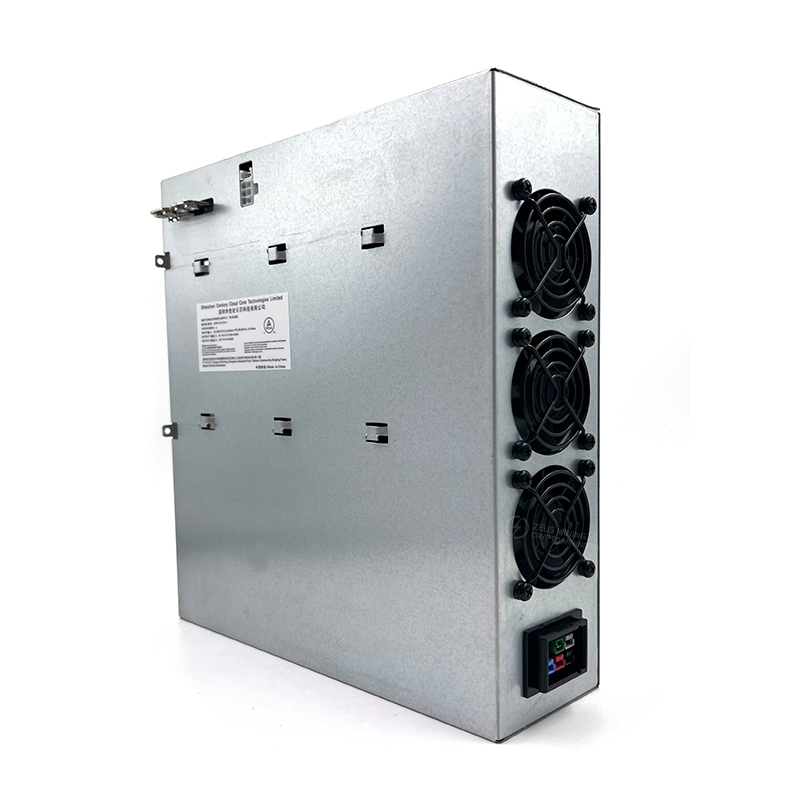

The APW11A1216-1a PSU 12V to 16V V1.1 3610W EMC power supply is specially designed for the Antminer T21 air-cooled crypto miners. Its input voltage is 380V to 415V AC, and its output voltage is 12V to 16V DC. This power supply can provide advanced power system operation, be stable and safer, and save more on electricity bills. The APW11A1216-1a PSU power supply is equipped with cooling fans, which can help the T21 miner power supply solve problems such as overheating the working system. This robust power supply is designed to support high-performance mining, making it an essential addition to your crypto-mining setup.
Note: please confirm the inventory quantity with the sales manager before placing an order.
Parameter:
Model: APW11A1216-1
Version: a
Input: AC 380-415V, 3-phase + PE, 50-60Hz, 12A Max
Output 1: 12-16V 356A MAX
Output 2: 12V 21A MAX
Carton packaging size: 315x340x350mm (3 pieces/carton)
Product specifications:
OUT1 | DC Voltage | 12V-16V |
Ripple & Noise | <1% | |
Source adjustment rate | <1% | |
Load Regulation | <1% | |
Start-up and rise time | <6S | |
Power-off retention time | >10mS | |
OUT2 | DC Voltage | 12.3V |
Rated current (three-phase 380V input) | 21A | |
Ripple & Noise | <1% | |
Voltage Accuracy | 12.2V-12.4V | |
Source adjustment rate | <1% | |
Load Regulation | <1% | |
Start-up and rise time | <5S | |
Power-off retention time | >10mS | |
Input | Voltage Range | 380V-415V AC |
Frequency Range | 50Hz-60Hz | |
Power Factor | >0.99 (full load) | |
Leakage Current | <1.5mA (380V 50Hz) | |
Protection | Input undervoltage protection value | 333V AC |
Output Short Circuit | Yes | |
Over-temperature protection | Yes | |
Output overcurrent protection value | 408A-453A | |
(protection value varies under different voltage) | ||
Environment | Operating Temperature | -20-45℃ |
Operating Humidity | 20%-90%RH (non-condensing) | |
Altitude | < 2000m | |
Structure | Dimensions | 290mm*250mm*80mm |
Net Weight | 6.4Kg | |
Cooling method | Forced air cooling | |
Noise | 55dB |
For more detailed usage steps of this product, please click here.
PSU model correspondence table | |
APW3 series | Z11 series, S9 series, T9, L3 series |
APW5 | S9 Hydro, S9 series, L3 series, Z11 series |
APW7 | S9 Hydro, S9 series, L3 series, Z11 series, Z15 series |
APW8 | S15, T15, S11, D5, DR5 |
APW9 | S17 Pro, T17, S17 |
APW9+ | S17e, S17+, T17e, T17+ |
APW111721c | S21 Hydro, S21+ Hydro, S21XP Hydro, S19Hydro, T19 Hydro, T19Pro Hydro, S19Pro Hydro, S19Pro+ Hydro, S19XP Hydro, S19e XP Hydro, S19XP+ Hydro |
APW12 | S19, S19j, S19Pro, S19jpro, S19i, T19 |
APW121215a | S19, S19j, S19Pro, S19jpro, S19apro, S19a, S19i, T19, D7, E9, E11, E9pro |
APW121215b | S19, S19j, S19Pro, S19jpro, S19apro, S19a, S19i, T19, D7, E9, E11, E9pro |
APW121215c | S19, S19j, S19j+, S19Pro, S19jpro, S19a, T19, D7, E9, E11 |
APW121215d | S19, S19Pro, S19jpro, S19jpro+, S19XP |
APW121215e | S19Pro, S19jpro, S19XP, S19L |
APW121215f | S19, S19Pro, S19jpro, S19jpro+, S19XP, S19Kpro |
APW121215g | S19 Pro-A |
APW121417a | S19, S19XP, L7, S19JL |
APW121417b | S19, K7, L7, DR7, KA3, KS3, HS3 |
APW12A | S19j pro-A |
APW171215a | S21, S19jxp, KS5, KS5Pro, AL1, AL1Pro, L9 |
APW171215c | S21XP, S21Pro, S21+ |
APW11A1216-1a | T21 |
APW11I1216-1a | S21 Imm |
