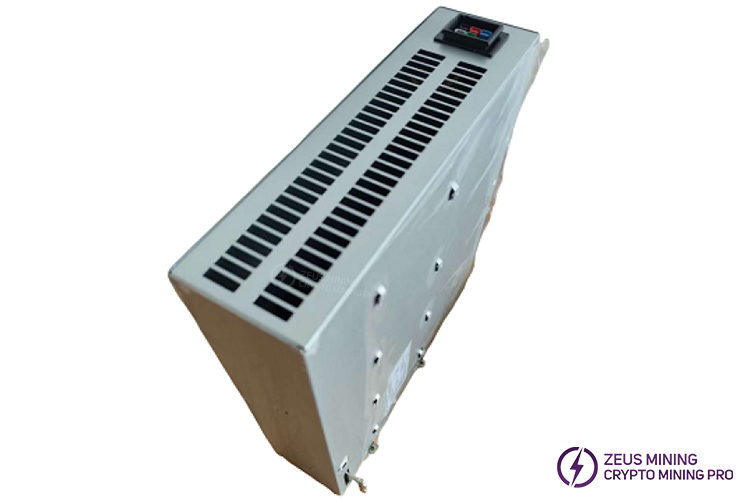

The Bitmain APW11M1216-1a PSU is a dedicated power supply for the Antminer S21XP IMM immersion-cooled miner. It provides a stable 12-16V output voltage and 380-415V AC input voltage. Designed to improve the overall operating efficiency and performance of the S21XP immersion miner, it ensures reliable power for high-intensity mining operations. With its customized design for immersion environments, stable power supply performance, and comprehensive safety protection, the APW11M1216-1a power supply meets the high-intensity mining needs of Antminer S21XP immersion miners, making it an indispensable accessory for your cryptocurrency mining equipment.
Parameters:
OUT1 | DC Voltage | 12V-16V |
Rated Current(380V input) | 356A | |
Ripple & Noise | <1% | |
Line Regulation | <1% | |
Load Regulation | <1% | |
Start-up and rise time | <10S | |
Power-off hold time | >3mS | |
OUT2 | DC Voltage | 12.3V |
Rated Current(380V input) | 21A | |
Ripple & Noise | <1% | |
Voltage Accuracy | 12.2V-12.4V | |
Line Regulation | <1% | |
Load Regulation | <1% | |
Start-up and rise time | <10S | |
Power-off hold time | >10mS | |
Input | Voltage Range | 380-415V AC |
Frequency Range | 50/60Hz | |
Power Factor | >0.99(full load) | |
Leakage Current | <5mA（380V 50Hz） | |
Protection | Input low-voltage protection value | <342V AC |
Output Short Circuit | Yes | |
Overheat Protection | Yes | |
Over-current Output | 400-440A（protection value varies under different voltage） | |
Environment | Operating Temperature | 20-55℃ |
Altitude | <2000m | |
Structure | Dimensions | 320*290*80mm |
Net Weight | 6.4kg | |
Cooling System | Immersion liquid cooling |
PSU model correspondence table | |
APW3 series | Z11 series, S9 series, T9, L3 series |
APW5 | S9 hydro, S9 series, L3 series, Z11 series |
APW7 | S9 hydro, S9 series, L3 series, Z11 series, Z15 series |
APW8 | S15, T15, S11, D5, DR5 |
APW9 | S17 Pro, T17, S17 |
APW9+ | S17e, S17+, T17e, T17+ |
APW111721c | S23 Hydro, S21e XP Hydro, S21XP+ Hydro, S21e Hydro, S21 Hydro, S21+ Hydro, S21XP Hydro, S19 Hydro, T19 Hydro, T19Pro Hydro, S19Pro Hydro, S19Pro+ Hydro, S19XP Hydro, S19e XP Hydro, S19XP+ Hydro |
APW11G0 | S21+ Hydro |
APW12 | S19, S19j, S19Pro, S19jpro, S19i, T19 |
APW121215a | S19, S19j, S19Pro, S19jpro, S19apro, S19a, S19i, T19, D7, E9, E11, E9pro, S19+ |
APW121215b | S19, S19j, S19Pro, S19jpro, S19apro, S19a, S19i, T19, D7, E9, E11, E9pro, S19+, Z15pro |
APW121215c | S19, S19j, S19j+, S19Pro, S19jpro, S19a, T19, D7, E9, E11 |
APW121215d | S19, S19Pro, S19jpro, S19jpro+, S19XP |
APW121215e | S19Pro, S19jpro, S19XP, S19L |
APW121215f | S19Pro, S19j, S19jpro, S19jpro+, S19XP, S19Kpro, S19 Pro++, D9, X5 |
APW121215g | S19 Pro-A |
APW121417a | S19, S19XP, L7, S19JL |
APW121417b | S19, K7, L7, DR7, KA3, KS3, HS3 |
APW12A | S19j pro-A |
APW171215a | S21, S19jxp, KS5, KS5Pro, AL1, AL1Pro, L9 |
APW171215c | S21XP, S21Pro, S21+, KS7, L11 |
APW11A1216-1a | T21 |
APW11I1216-1a | S21 Imm |
APW11H1721-2a | U3S21EXPH, 3US21EXPHD, U2L9H |
APW11M1216-1a | S21XP Imm |
