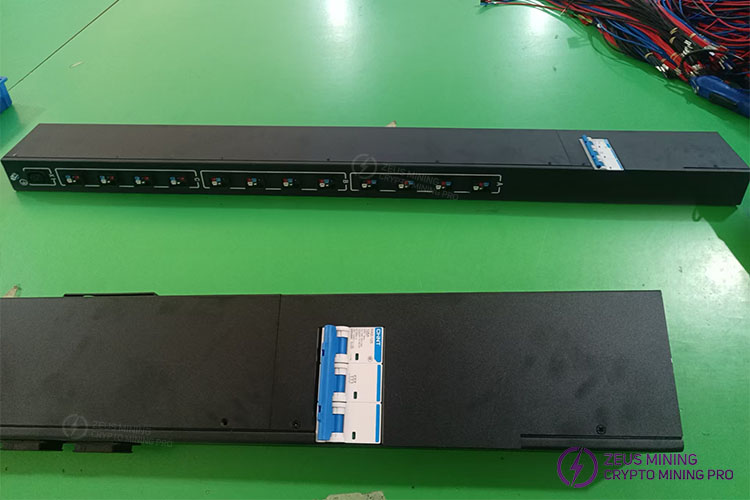

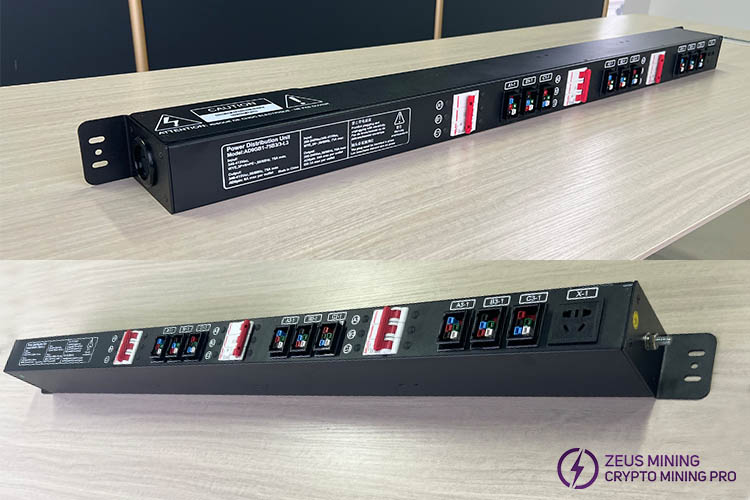

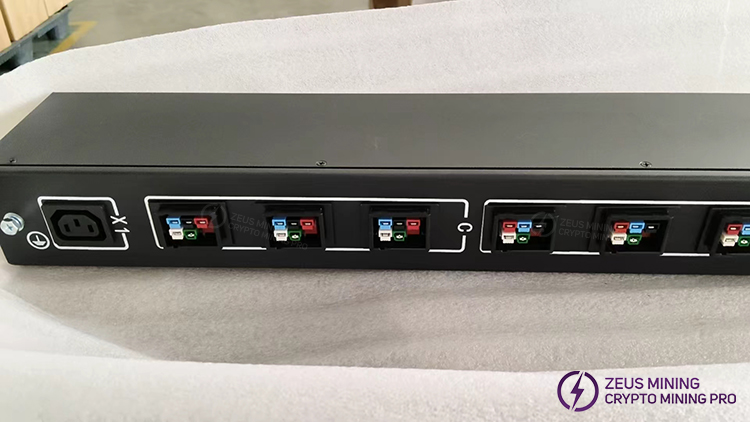

Bitmain Antminer S21 / T21 / S19j XP PDU

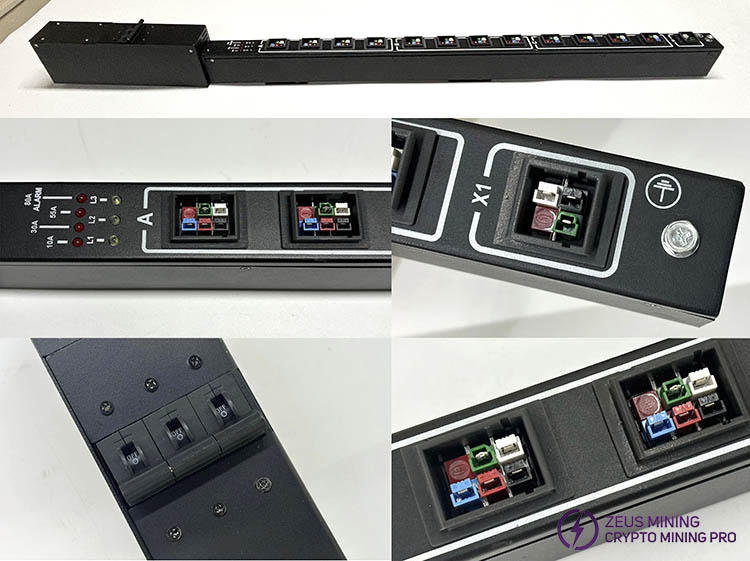

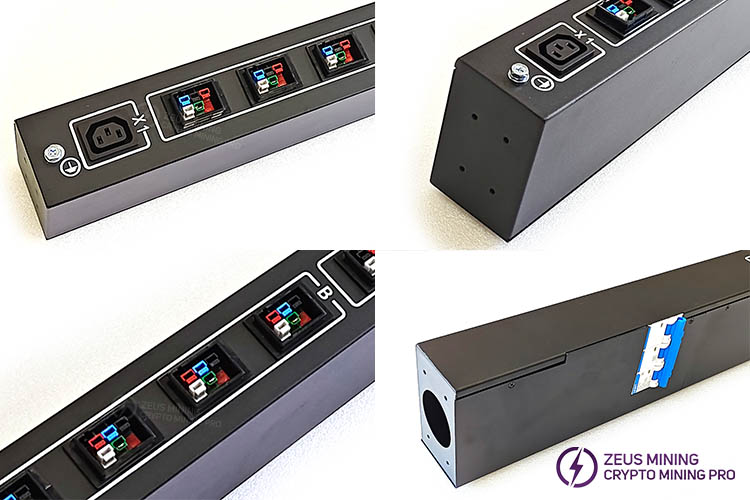

PW12V1 PDU is suitable for new models such as Antminer S21 Imm / T21 / S21 / S19jxp / L9 / AL1pro / AL1 / S21XP / S21PRO / KS5 / KS5PRO. It is a new generation of supercomputer power distribution unit developed by Bitmain to meet the needs of high-power Antminer. The product is equipped with 12, 9, or 6 output ports, which can realize three-phase or single-phase voltage and current output of each output socket according to the actual needs of customers. The PDU is also equipped with a 125A (version 1, 2),100A (version 3), 63A (version 4) air switch circuit breaker (with a withstand voltage of less than 500V), which can achieve comprehensive overload protection and short-circuit protection. The product provides LED status indication for each phase power supply and LED status indication for three-phase load imbalance.
Note: Due to different production batches, there may be slight differences in the product. The actual product received shall prevail.

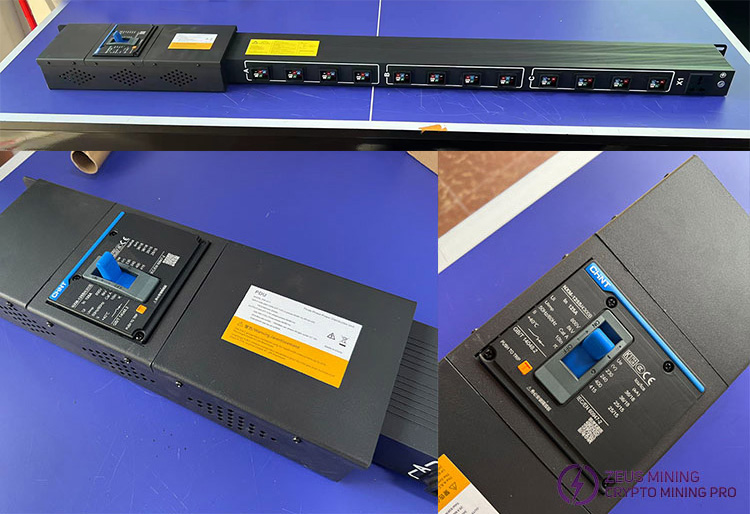

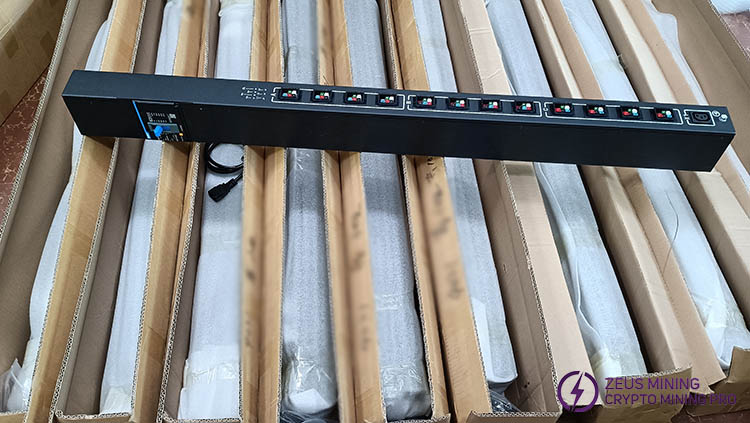

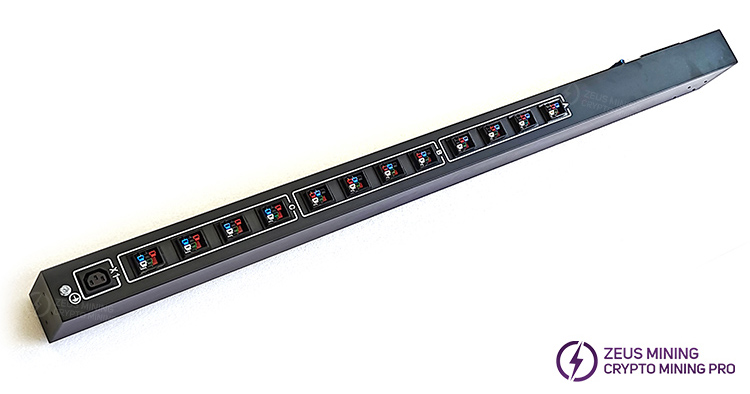

Version 1: 12 + 1 socket holes
Size: 1330mm x 130mm x 100mm
Version 2: 12 + 1 socket holes
Size: 1361mm x 64.2mm x 112mm
Parameters:
12AWG inside the PDU
Temperature resistant 105°C, flame retardant copper wire
Input copper core wire 25², aluminum core wire 50²

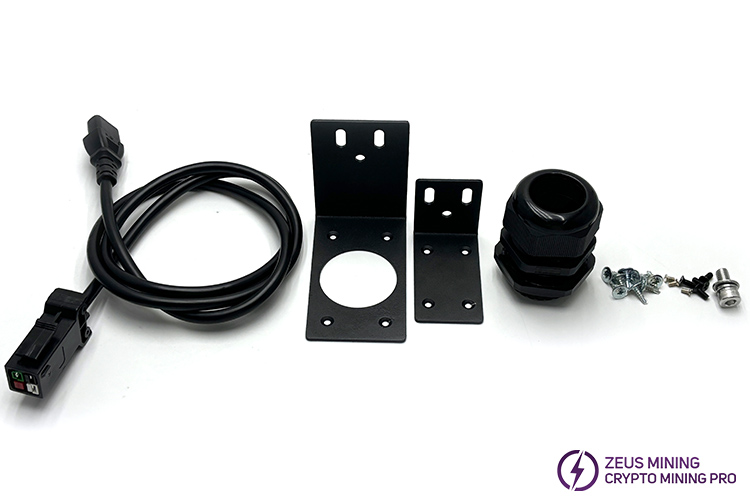

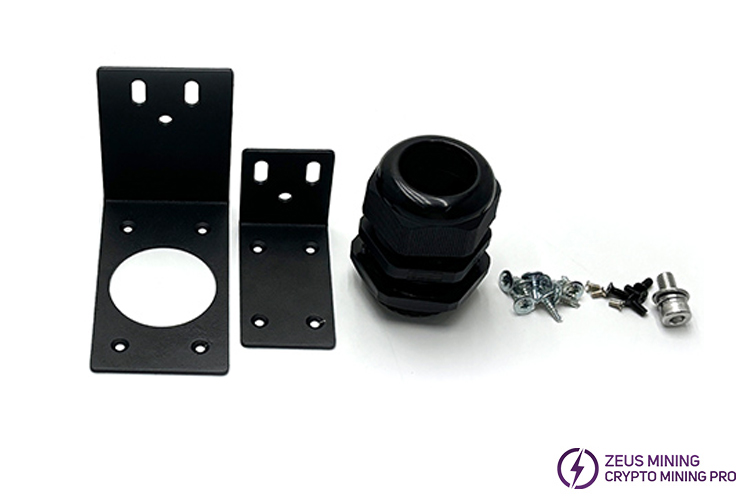

Product accessories list:

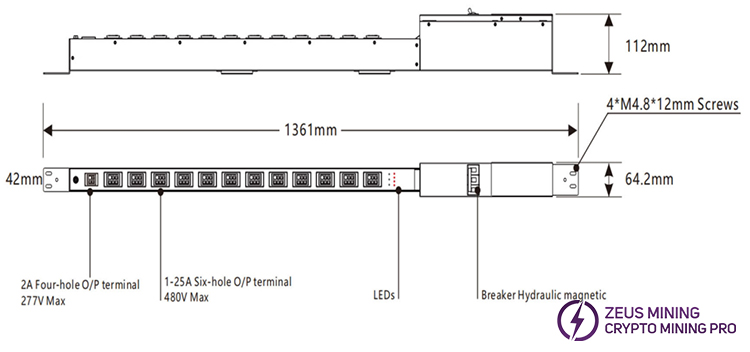

Outline dimension:
For the PDU upgrade, the actual diagram is subject to the following figure.
Product specification:
Product information | Name | ANTPDU |
Model | PW12V1 | |
Input parameter | Input voltage | 346~480VAC,3P+N+PE |
Frequency | 50/60Hz | |
Input current | 125A | |
Output parameters | Output rating | 83kW |
Output voltage | 3Phase 346~480VAC | |
Output voltage | 200~277VAC Single phase | |
Output bits | 12 Port 6pin+1 Port 4pin | |
Protect Grade | IP20 | |
Working environment | Working temperature | -20~40°C |
Working humidity | 5%~90%RH(Non-condensing) | |
Altitude | ≤2000m | |
Store environment | Storage temperature | -40~70°C |
Storage humidity | 5%~95%RH(Non-condensing) |

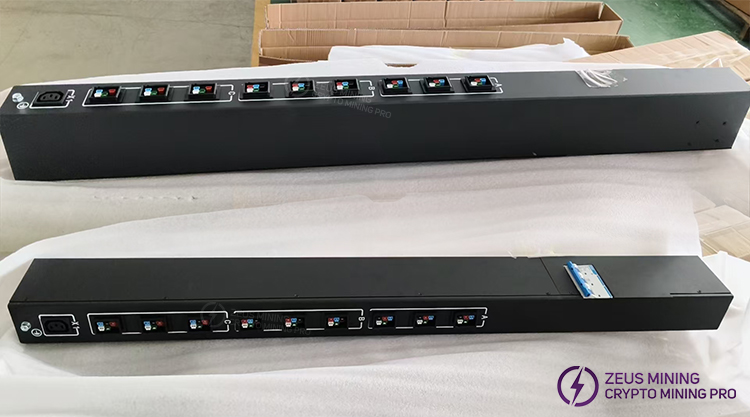

Version 3: 9 + 1 socket holes
Size: 1070mm x 130mm x 80mm

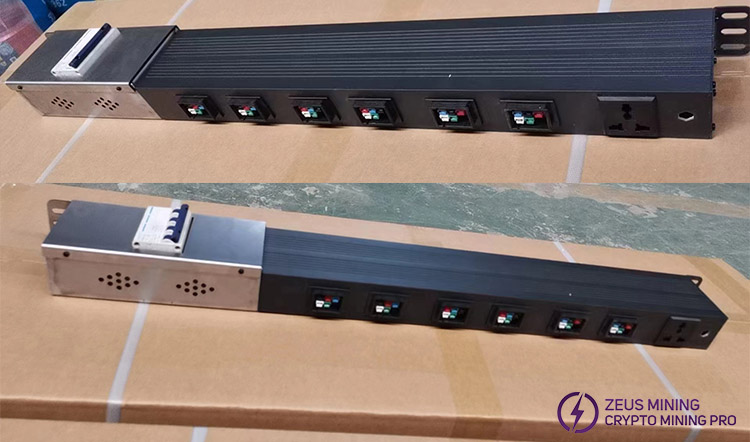

Version 4: 6+ 1 socket holes
Size: 800mm x 90mm x 60mm
Product specification: (Version 1, 3, 4 are the same)
Input parameters | Input voltage | 346-480V AC, 3P+N+PE |
Frequency | 50/60Hz | |
Input current | 125A/100A/63A | |
Output parameters | Output power | 85KW |
Output voltage | 346-480V, 4P | |
Output voltage | 200-227VAC single phase | |
IP | IP20 | |
Working environment | Working temperature | -20-40℃ |
Working humidity | 5%-90%RH, no condensation | |
Elevation | ≤2000M | |
Storage environment | Storage temperature | -40-70℃ |
Storage humidity | 5%-90%RH, no condensation | |
Enter the line | Copper | 252 |
Aluminium | 502 |
