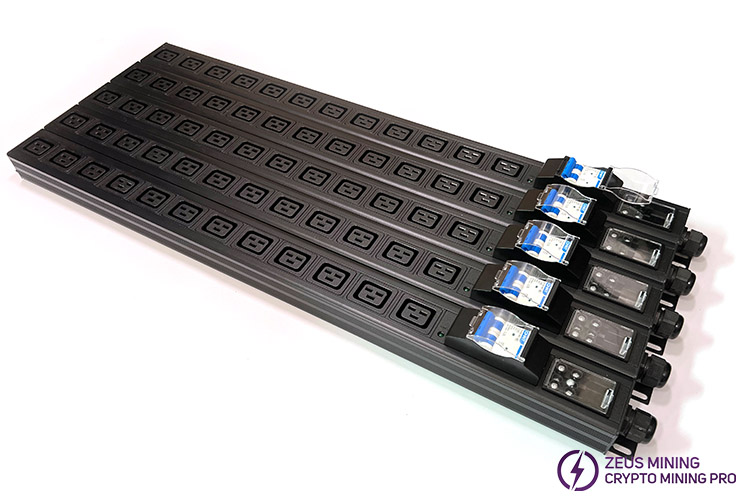

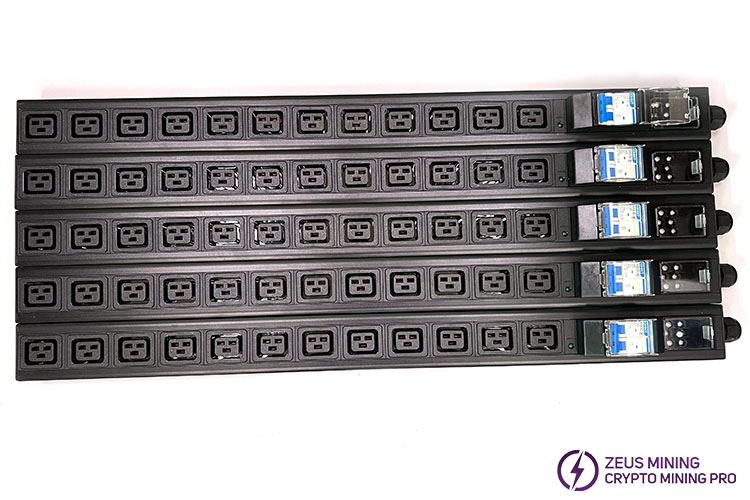

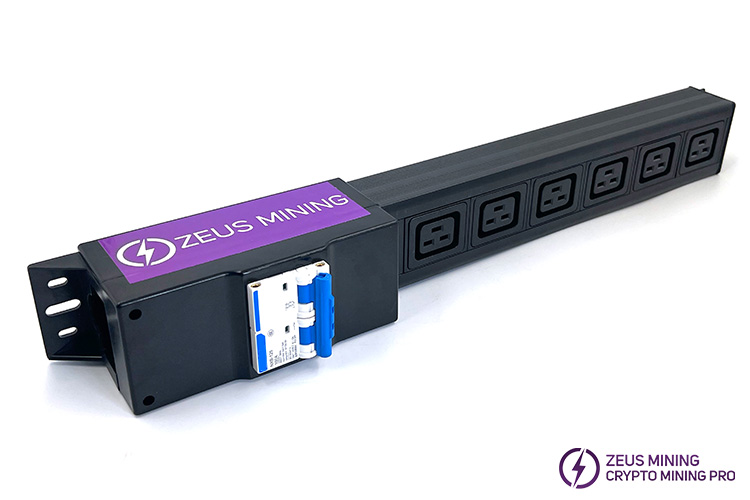

C19 socket PDU power strip

Product description:

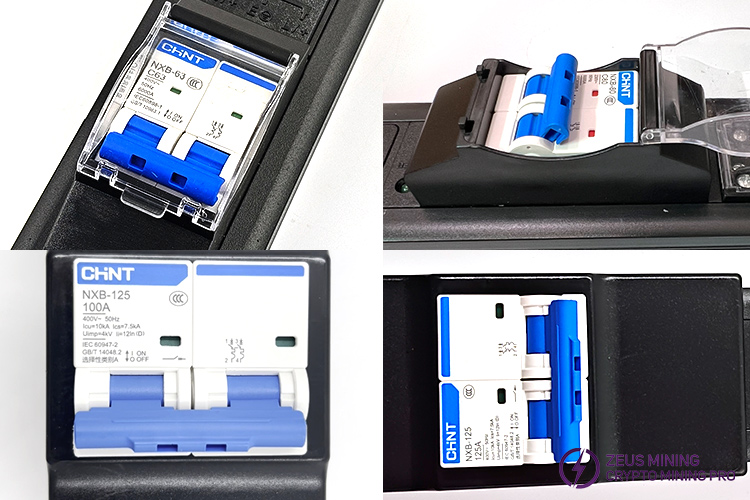

The C19 socket PDU is suitable for plugs with C20 power cords and is used to power miners such as Antminer and Whatsminer. The PDU has an aviation-grade thickened aluminum alloy shell and a grounding design to prevent accidental electric shock and ensure electrical safety. Insulation partitions are placed between parts with electric and metal shells to prevent leakage risks. The C19 PDU is also equipped with 63A and 80A air switch circuit breakers, with 17600W high power protection, which can achieve comprehensive overheating, overload, and short circuit protection. The PDU is equipped with a dust-proof protective switch cover to effectively avoid losses caused by switching errors.

Attention: 220V means the input voltage can be between 220V and 277V, and 380V means that it can be between 380V and 420V.

Corresponding power:

63A 220V ——13860W

80A 220V ——17600W

63A 380V ——23940W

80A 380V ——30400W

100A 220V ——22000W

100A 380V ——38000W

125A 220V ——27500W

125A 380V ——47500W

Product features:

1) The internal integrated copper bar has a larger conductor cross-sectional area and improved load capacity, meeting the 32A co-current condition;

2) The equipment current is stable, the power cord is thickened, the electricity is safer, the conductivity is strong, it is not easy to heat up, and it is more durable;

3) High-power junction box, which can connect 10 square cables;

4) 36000W ultra-high power guarantee, effectively avoiding heating failures and other phenomena;

5) The dust-proof protection switch cover helps you avoid losses caused by accidental switch disconnection, making the product user-friendly and easy to use.
