| Unit Price: | $ 1499 |

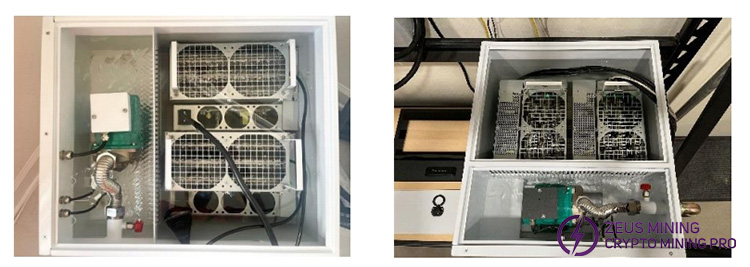

The immersion cooling kit is designed for home and office users. Its applicable models include Antminer (Except E9pro), Whatsminer, Avalon, Iceriver, etc. Among them, the C2 kit can accommodate two ASIC miners, and the C6 kit can accommodate six ASIC miners. It is currently the most cost-effective distributed immersion liquid cooling solution. Suitable for home mining farms, small data centers, office silent environments, etc.

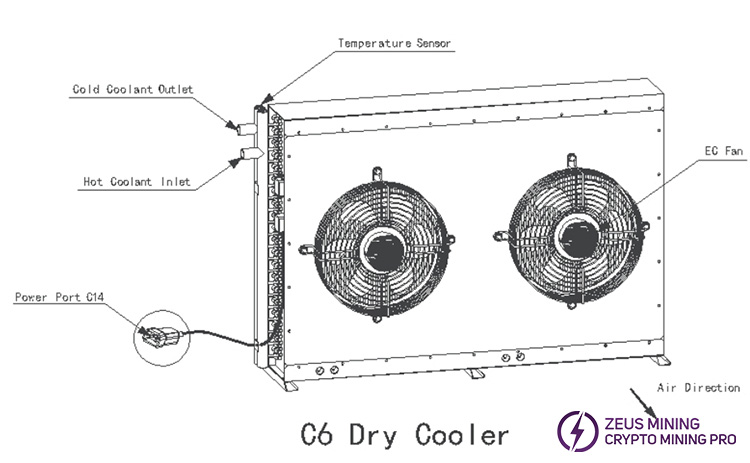

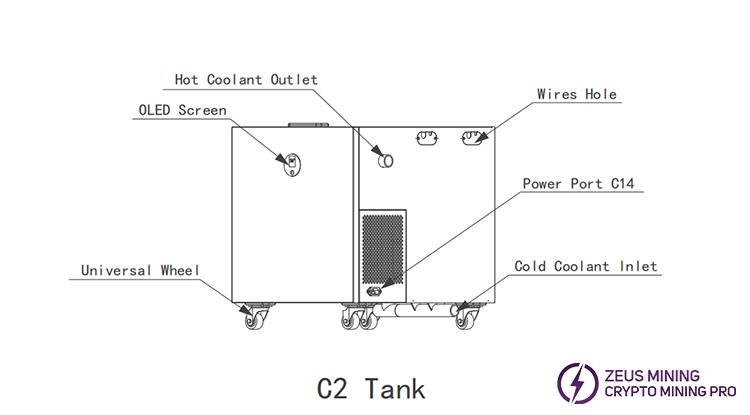

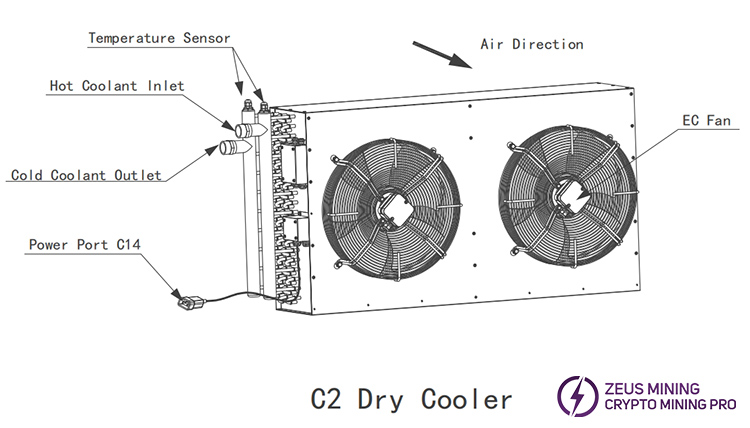

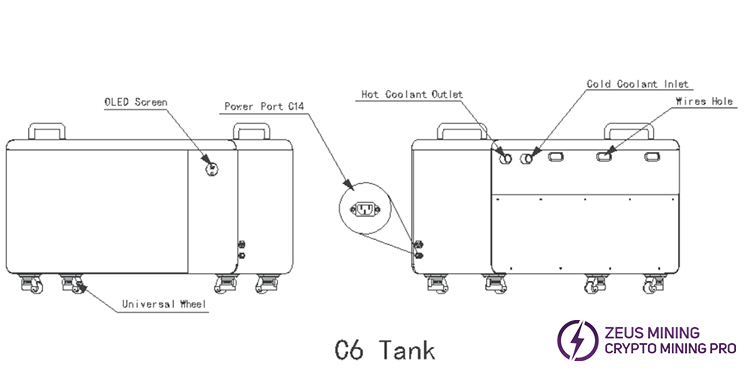

C2/C6 tank and dry cooler component description:

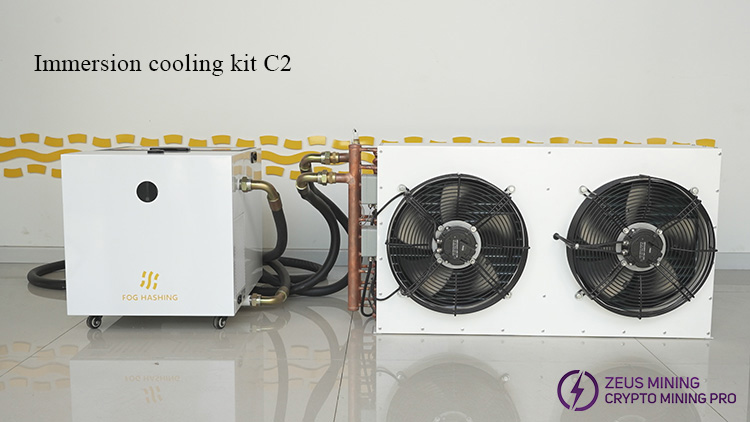

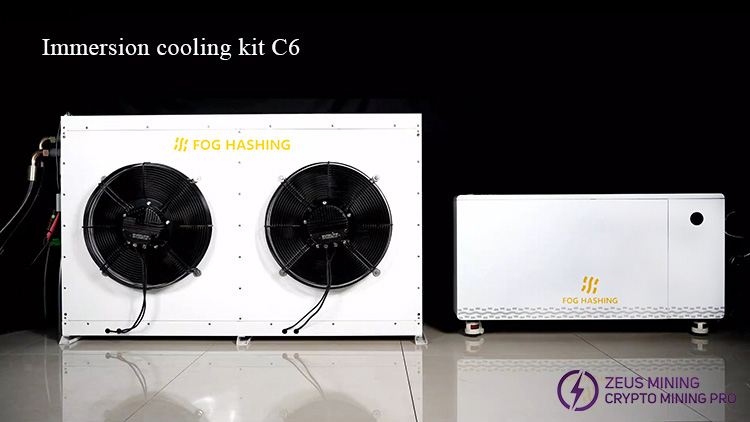

C2 C6 immersion cooling kit advantages:
1) Low noise, similar to the sound of a refrigerator;
2) Can help miners overclock by 30%-40%;
3) Can start generally at low temperatures, extending the service life of miners;
4) Waste heat utilization, including swimming pools and floor heating, etc.
C2/C6 cooling kit technical parameters:
C2 Tank | C6 Tank | |
Outer Size | 455(L)*508(W)*536(H)mm | 1185(L)*530(W)*760(H)mm |
Inner Size | 398(L)*298(W)*392(H)mm | 912(L)*404(W)*355(H)mm |
G.W | 40.6kg | 110kg |
Tank coolant volume | 80L | 200L |
Input voltage | Single-phase 200-240V 50/60Hz | |
Power | 180W(220V 50Hz) | 850W(220V 50Hz) |
Display | 1.32” OLED Screen | 1.32” OLED Screen |
Noise | 45dB(A)@10m | 45dB(A)@10m |
Flow | 35L/min | 90L/min |
Qty of Miner(s) | 2*S19/S21; 2*M50/M60 | 6*S19/S21; 8*M50/M60 |
Ambient temperature | -25°C~55°C | -25°C~55°C |
*The tolerance temperature of the mining machine is different, this range is only a reference. | ||
C2 Dry Cooler (EC Fan) | C6 Dry Cooler (EC Fan) | |
Outer size | 1076(L)*285(W)*531(H)mm | 1680(L)*400(W)*1015(H)mm |
Power | 5-400W(220V 50Hz) | 10-1400W(220V 50Hz) |
Input voltage | Single-phase 200-277V 50/60Hz | |
Net weight | 43.3kg | 110kg |
Intelligent speed tuning | Automatically adjust the speed according to the temperature | |
Cooling capacity | 12kW@35°C | 24kW@35°C |
Noise | 65dB(A)@10m (MAX) | |
EC Fan | 2 pcs | |
C2/C6 accessories description:

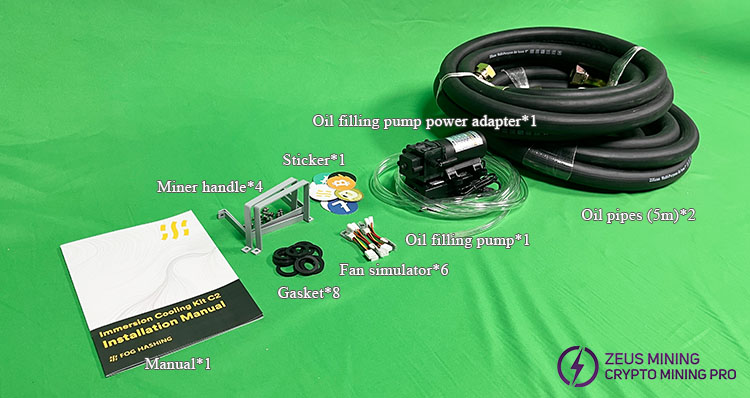

C2 accessories picture:
Parts list:
Oil pipe (5m) | 2 pc(s) |
Gasket | 8 pc(s) |
Oil filling pump | 1 pc(s) |
Oil filling pump power adapter | 1 pc(s) |
Miner handle | 4 pc(s) |
Fan simulator (for Antminer) | 4 pc(s) |
Manual | 1 pc(s) |
Sticker | 1 pc(s) |
Other accessories needed (not included):
1. C13 power cord -1 pc for tank
2. C13 power cord -1 pc for dry cooler
3. Power cord for miners as needed
4. Power Distribution Unit (optional)

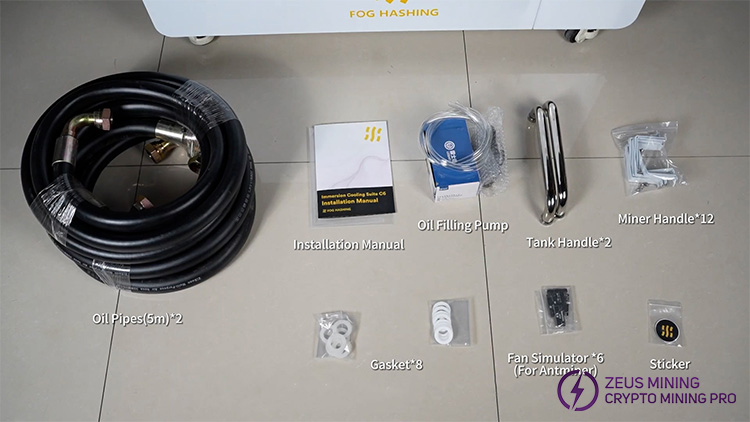

C6 accessories picture:
Parts list:
1.2" oil pump(5m) | 2 pc(s) |
1.2" gasket | 8 pc(s) |
Oil filling pump and pipeline | 1 pc(s) |
Oil filling pump power adapter | 1 pc(s) |
Miner handle | 12 pc(s) |
Fan simulater (for Antminer) | 6 pc(s) |
Installation manual | 1 pc(s) |
Sticker | 1 pc(s) |
Tank handle | 2 pc(s) |
Other accessories needed (not included):
1. C13 power cord 1pc for tank
2. C13 power cord 1pc for dry cooler
3. Network switch or router 1pc
4. C20-C13 Y-type power cable 6pcs (if Antminer S19 series)
5. C20-6pin power cable 6pcs (if Antminer S21 / T21 series)
6. C20-C19 power cord 6pcs (if whatsminer M50 / M60 series)
