| Unit Price: | $ 8.9 |

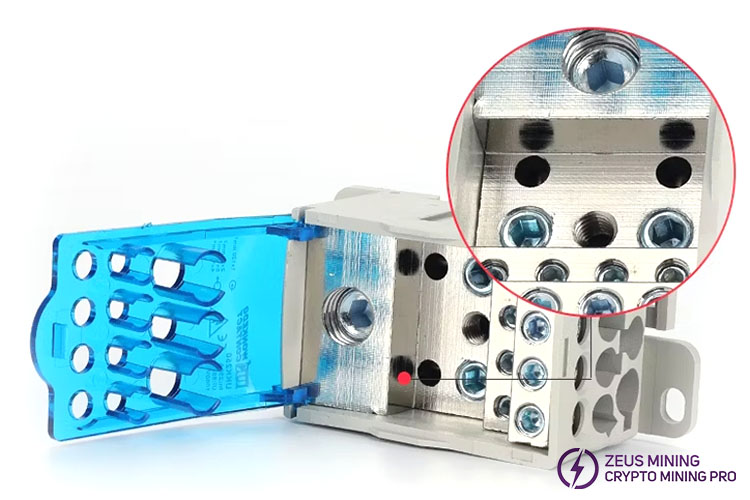

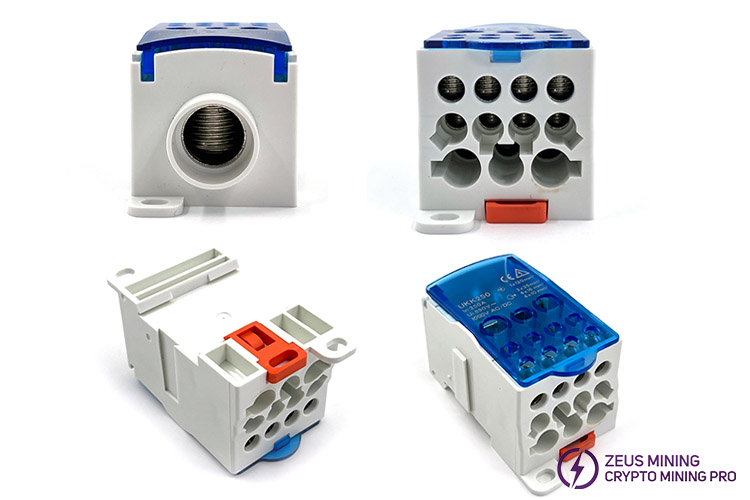

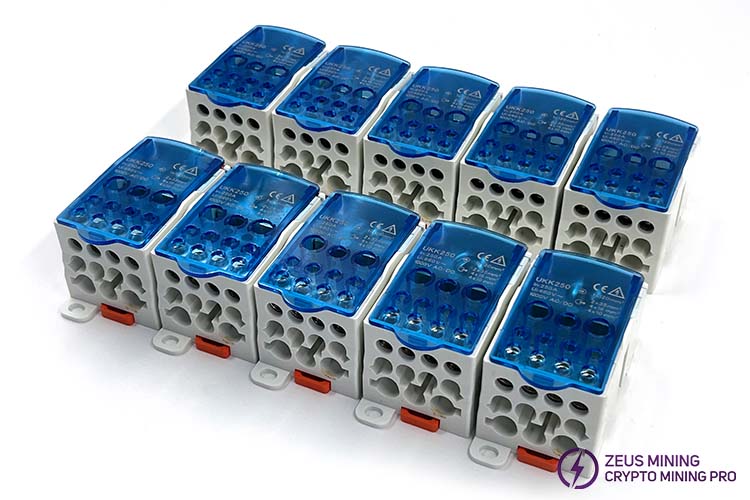

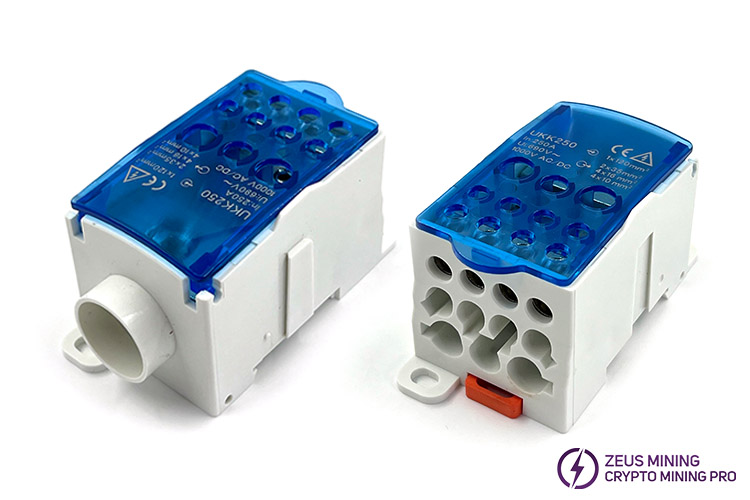

UKK series 250A 500A terminal blocks are used for power distribution in the ASIC miner mining farms. Power distribution terminal blocks are a convenient, economical, and safer way to distribute power from a single input source to multiple outputs. Equipped with a removable main cover, it has high conductivity, good electrical contact, and a compact design.
Product parameters:
Product name: UKK single-stage junction box
Product model: UKK-250A / 500A
Shell material: high-quality PA material
Metal material: tin-plated copper
Flame retardant grade: UL94V0
Applicable wire: universal for soft and hard wires
Product features: anti-solvent, impact-resistant
Installation method: guide rail/screw fixing
Product color: red, yellow, blue, green
Attention: 250A and 500A have 1 input and 11 outputs.
Type | Current | Voltage | Into the range of line | Out the range of line | Size |
UKK250 | 250A | 690V | 35~120mm²*1 | 6~35mm²*2 2.5~10mm²*4 2.5~16mm²*5 | 50*47*96mm |
UKK500 | 500A | 690V | 3*15~8*24mm²*1 | 6~35mm²*2 2.5~10mm²*4 2.5~16mm²*5 | 50*47*96mm |
Product features:
1) Copper tin conductor is integrally formed;
High-strength copper alloy wire frame, copper screws have good conductivity.
2) Hexagon socket screws for quick wiring;
The wiring is firm, breaking the traditional wiring method, and it is not easy to leak electricity, corrode, and cause fire.

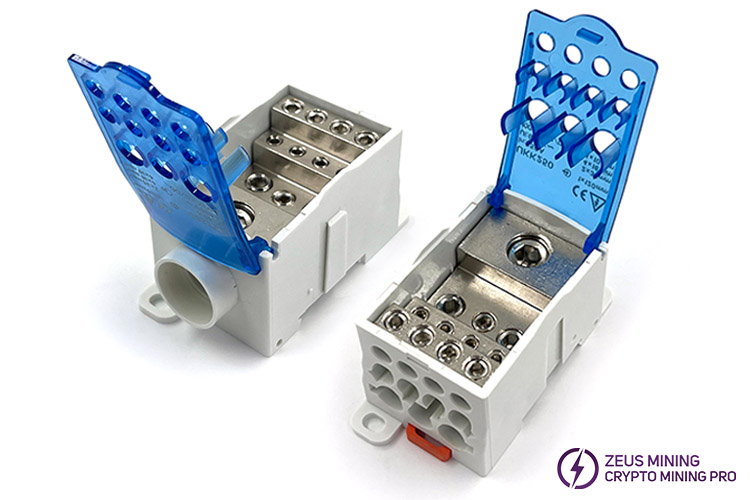

3) Transparent protective cover for easy observation;
Transparent blue cover, blue transparent insulation, dustproof and corrosion-resistant,
4) Comes with splicing slot;
Combined at will, snap on and push down.
5) Guide rail installation design;
35mm guide rail, screw installation, and the same specifications can be freely combined.
6) High-temperature insulation flame retardant shell;
Sturdy and durable, high-quality base, fire extinguishing in an instant, fireproof, and electric shockproof.

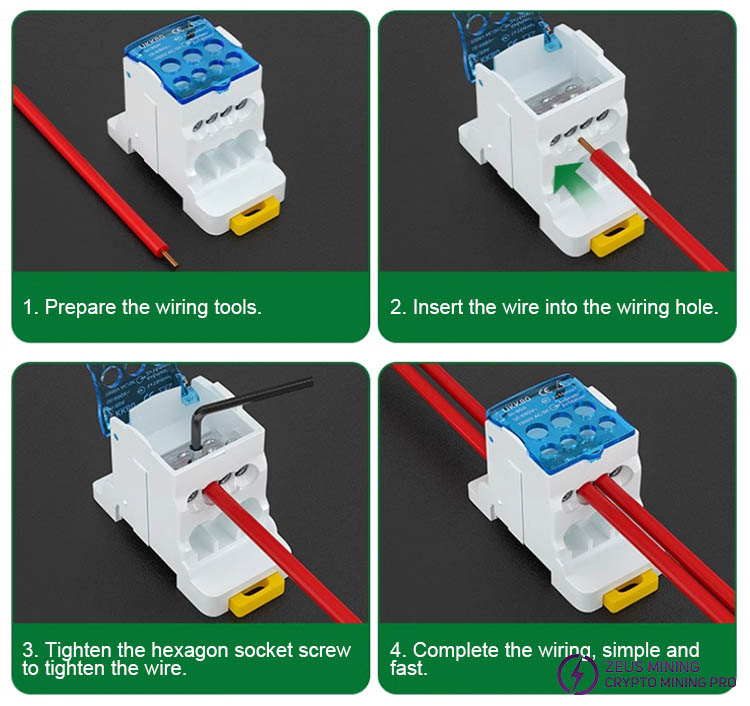

Wiring instructions:
