| Unit Price: | $ 3 |
GSP9-C40 40KA series surge protector surge suppressor is suitable for TN-S, TN-CS, TT, IT, and other AC 50/60Hz power supply systems, which protects the ASIC miner mining farm's low-voltage consumer system from all types of overvoltage and provides reliable protection for your mining equipment. The protector shell is made of UL94-V0 flame-retardant material. A fault release is installed on the surge protector module. When the SPD fails due to overheating or overcurrent, the fault release will help the electrical equipment to separate from the power system and send out an indication signal. Green means normal, and red means abnormal. The module can also be replaced when there is working voltage.
Product parameters:
Model | 1P 275V | 2P 275V | 3P 275V | 4P 275V | |
lEC Electrical | 275 | ||||
Nominal AC Voltage(50/60Hz) | Uo/Un | 230V | |||
Maximum Continuous Operating Voltage (AC) | Uc | 275V | |||
Nominal Discharge Current (8/20 μs) | In | 20kA | |||
Maximum Discharge Current (8/20 μs) | Imax | 40kA | |||
Voltage Protection Level | Up | 1.5kV | |||
Impulse Current (10/350μs) limp (L-N) | 7kA | ||||
Response Time | tA | < 25 ns | |||
Back-Up Fuse (max) | 125A gL/ gG | ||||
Short-Circuit Current Rating (AC) | ISCCR | 25kA / 50 kA | |||
TOV Withstand 5s | UT | 335V | |||
TOV 120min | UT | 440V | |||
Mode | Safe Fail | ||||
Mechanical & Environmental | |||||
Operating Temperature Range | Ta | -40℉ to +158°F [-40℃ to +70°C] | |||
Permissible Operating Humidity | RH | 5%...95% | |||
Atmospheric pressure and altitude | 80kPa ... 106kPa / -500m.....2000m | ||||
Terminal Screw Torque | Mmax | 39.9lbf·in [4.5 Nm] | |||
Conductor Cross Section (max) | 2AWG (Solid, Stranded) 4AWG (Flexible) | ||||
35mm2(Solid, Stranded) / 25mm2(Flexible) | |||||
Mounting | 35mm DIN Rail, EN 60715 | ||||
Degree of Protection | IP 20 (buiit-in) | ||||
Housing Material | Thermoplastic: Extinguishing Degree UL 94 V-0 | ||||
Thermal Protection | Yes | ||||
Operating State / Fault Indication | Green ok / Red defect | ||||
Remote Contacts (RC) RC Switching Capacity RC Conductor Cross Section (max) | Optional AC: 250V / 0.5A; DC: 250V / 0.1A; 125V / 0.2A; 75V / 0.5A 16AWG (Solid)/ 1.5mm2(Solid) | ||||

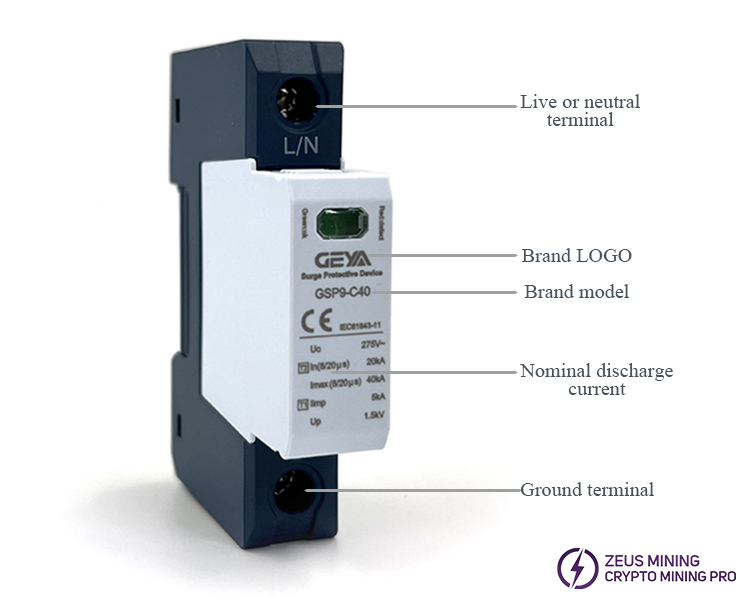

Panel introduction:

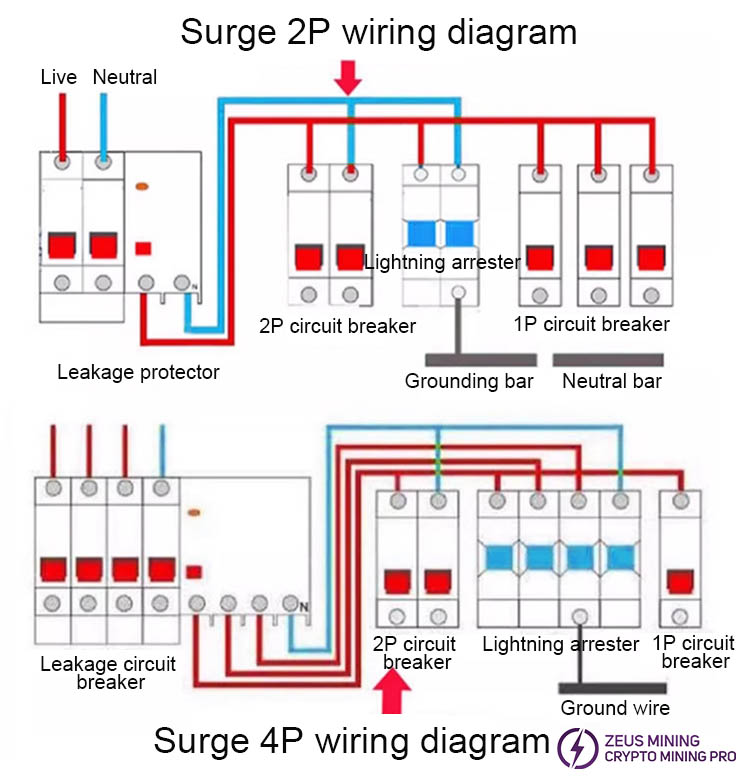

Application and installation instructions:
