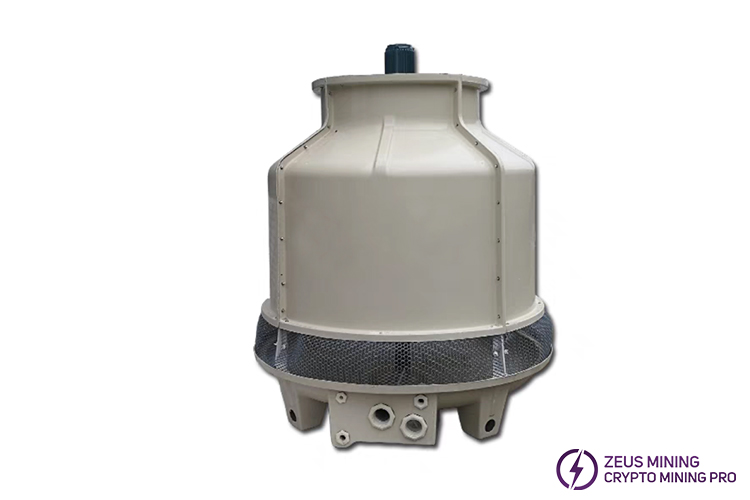

Water cooling tower 10T 15T 20T 25T
Miner oil cooling equipment cooling water tower, miner immersion cooling system external water circulation cooling tower.
This equipment is used to cool the mining machine through the oil cooling box, so that the temperature of the hash board is lower than the ambient temperature, so as to ensure the normal operation or overclocking of the mining machine, reduce noise and power consumption, and increase income.
The equipment is composed of inlet and outlet water joints, which are used to connect the heat exchanger of the oil cooling equipment, take away the heat of the heat exchanger, and achieve the cooling effect. It is a key component of oil cooling tanks and oil cooling facilities.
According to our actual measurement experience, a 10T water tower can supply 2-3 oil-cooling boxes (a single oil-cooling box can accommodate 6 sets of Antminer S17 or S19), and the results are as follows:
15T water tower supplies 2-3 oil cooling boxes, about 13-18 S17 or S19
25T water tower supplies 5-6 oil cooling boxes, about 26-36 S17 or S19
Related Products:
New oil cooling
Mining box 10T water tower key parameters:
Motor power: 0.18kw
Flow: 7.8m³/h
Water flow lifting range: 18Kpa
Float size: 15mm in and out of water
Joint diameter: 40mm
Size: 175cm (185cm) * 106cm warm
Model | Flow(m³/h) | Tower dimension(mm) | Fan dimension(mm) | Motor(KW) | Water pressure(Kpa) | Weight(Kg) | Noise(dBA) | ||
Diameter(Φ) | Height(H) | Dry | Wet | ||||||
LYT-15 | 11.7 | 1195 | 1415 | 600 | 0.37 | 12 | 54 | 290 | 62.5 |
LYT-25 | 19.51 | 1400 | 1820 | 730 | 0.75 | 16 | 98 | 500 | 63 |
Prompt:
Due to the possibility of component upgrades at any time, the size and volume of the water tower may change slightly, but the flow and power will not change. Therefore, the size ratio of the item you receive may be slightly different, and we will send the corresponding item according to stock availability.
